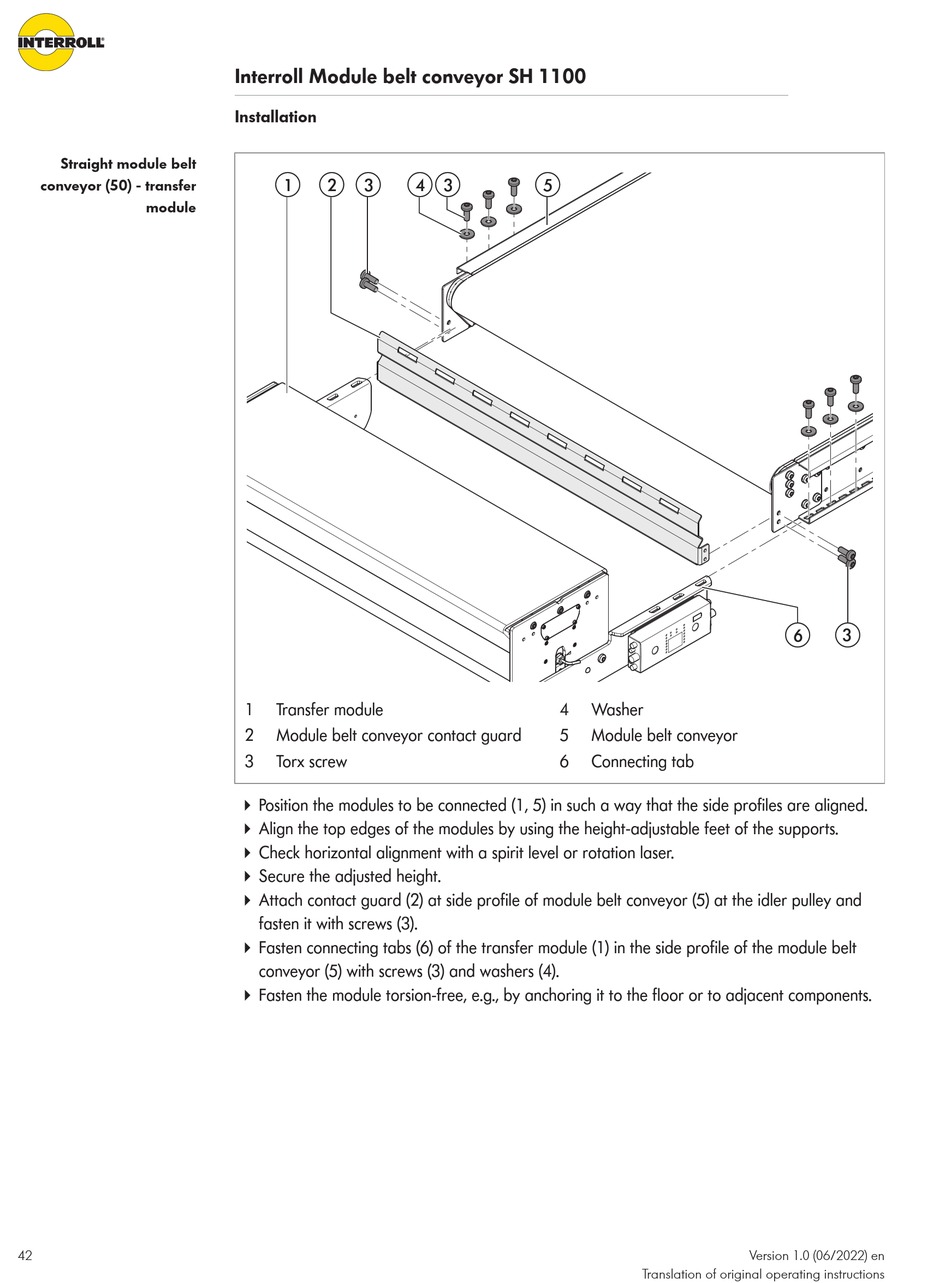

Straight module belt
conveyor (50) - transfer
module
42
Interroll Module belt conveyor SH 1100
Installation
1 2 3
1 Transfer module
2 Module belt conveyor contact guard
3 Torx screw
4 Position the modules to be connected (1, 5) in such a way that the side profiles are aligned.
4 Align the top edges of the modules by using the height-adjustable feet of the supports.
4 Check horizontal alignment with a spirit level or rotation laser.
4 Secure the adjusted height.
4 Attach contact guard (2) at side profile of module belt conveyor (5) at the idler pulley and
fasten it with screws (3).
4 Fasten connecting tabs (6) of the transfer module (1) in the side profile of the module belt
conveyor (5) with screws (3) and washers (4).
4 Fasten the module torsion-free, e.g., by anchoring it to the floor or to adjacent components.
4 3 5
4 Washer
5 Module belt conveyor
6 Connecting tab
6
