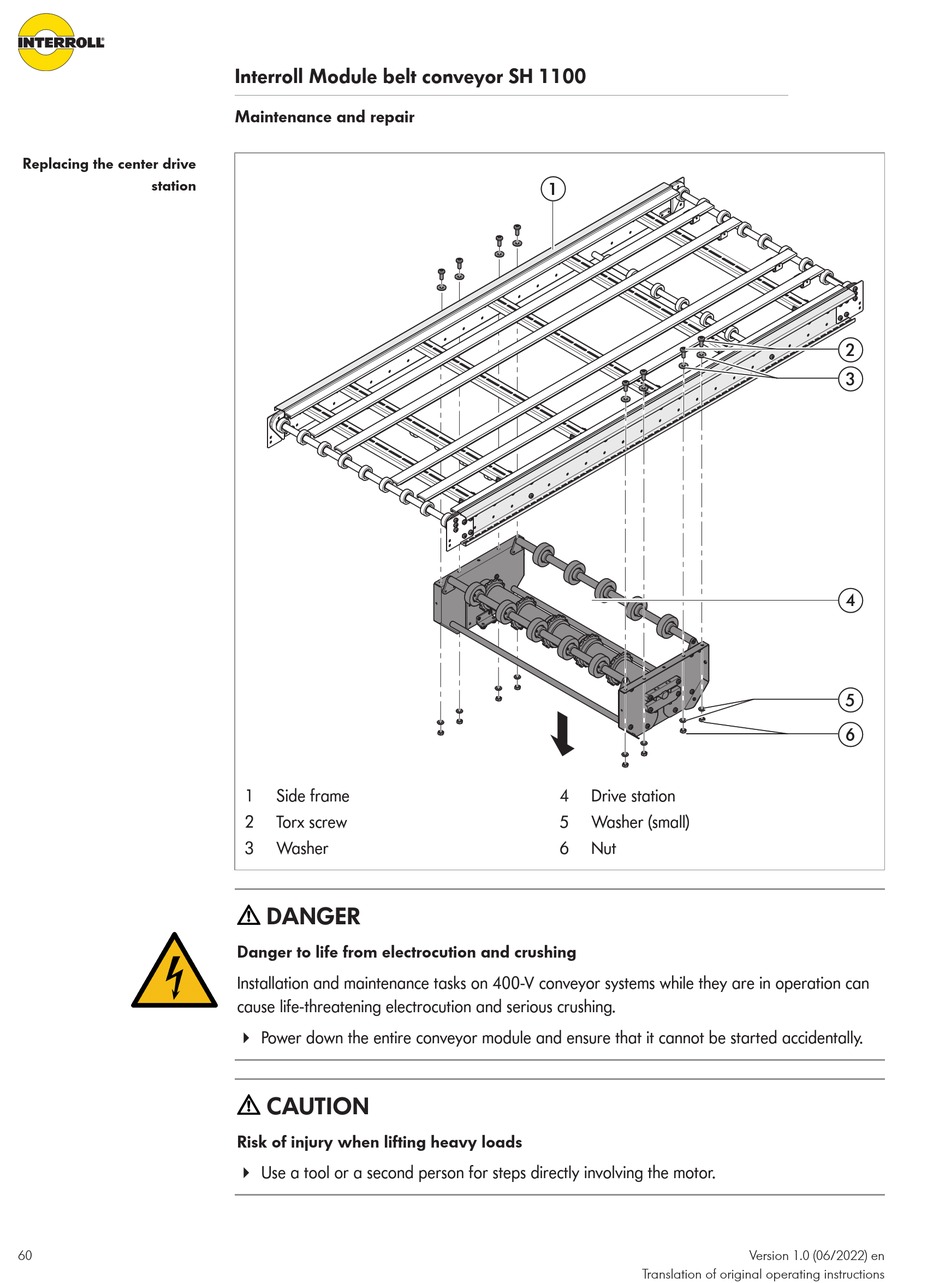

Replacing the center drive
station
60
Interroll Module belt conveyor SH 1100
Maintenance and repair
1
Side frame
2
Torx screw
3
Washer
DANGER
Danger to life from electrocution and crushing
Installation and maintenance tasks on 400-V conveyor systems while they are in operation can
cause life-threatening electrocution and serious crushing.
4 Power down the entire conveyor module and ensure that it cannot be started accidentally.
CAUTION
Risk of injury when lifting heavy loads
4 Use a tool or a second person for steps directly involving the motor.
1
4
Drive station
5
Washer (small)
6
Nut
Translation of original operating instructions
2
3
4
5
6
Version 1.0 (06/2022) en
