Interroll Module belt conveyor SH 1100
Installation

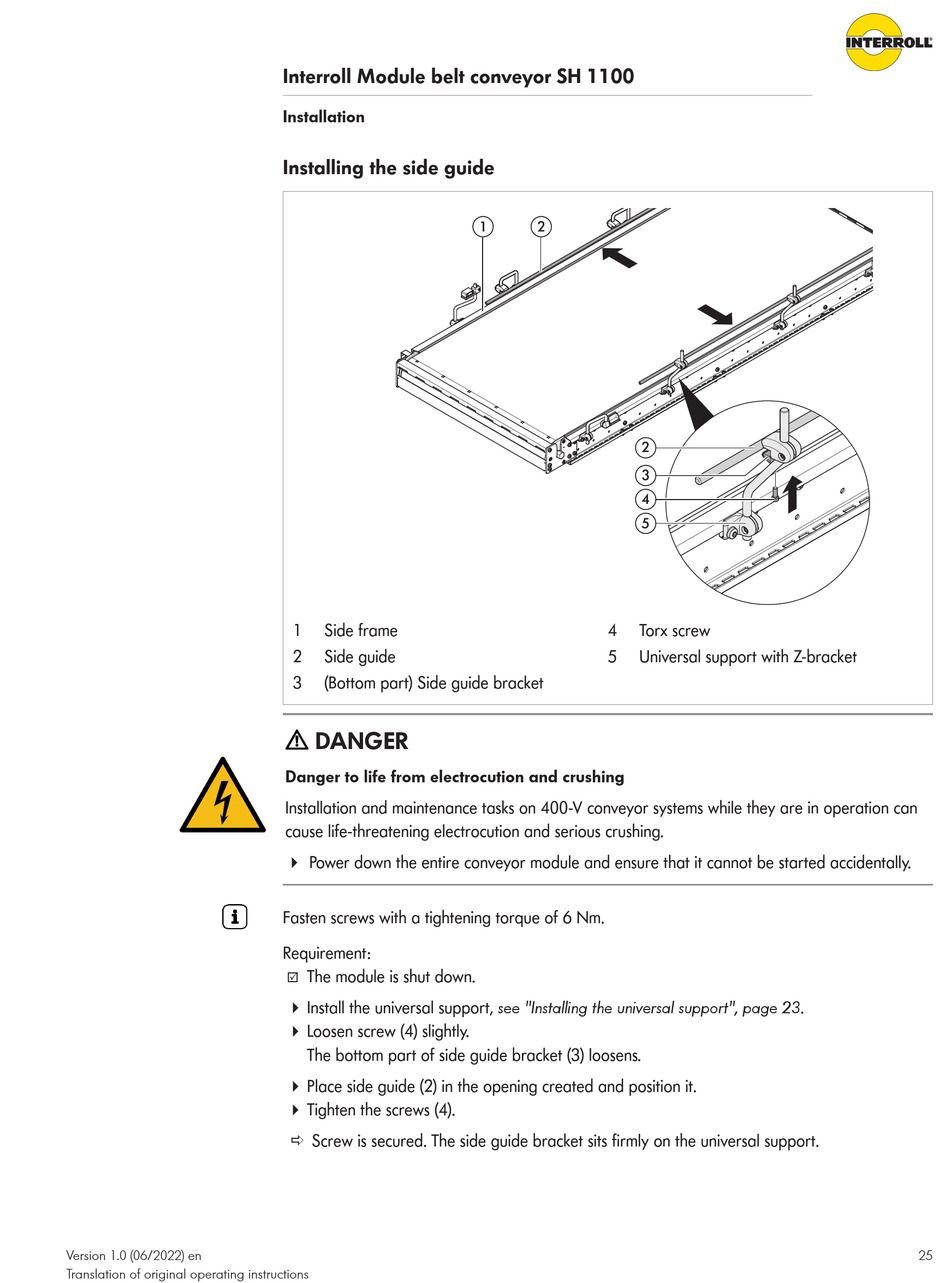

Installing the side guide

1 Side frame
2 Side guide
3 (Bottom part) Side guide bracket
DANGER
Danger to life from electrocution and crushing
Installation and maintenance tasks on 400-V conveyor systems while they are in operation can
cause life-threatening electrocution and serious crushing.
4 Power down the entire conveyor module and ensure that it cannot be started accidentally.
Fasten screws with a tightening torque of 6 Nm.
Requirement:
The module is shut down.
R
4 Install the universal support, see "Installing the universal support", page 23.
4 Loosen screw (4) slightly.
The bottom part of side guide bracket (3) loosens.
4 Place side guide (2) in the opening created and position it.
4 Tighten the screws (4).
ð Screw is secured. The side guide bracket sits firmly on the universal support.
1 2
2
3
4
5
4 Torx screw
5 Universal support with Z-bracket
