Straight module belt
conveyor (50) - roller
curve
32
Interroll Module belt conveyor SH 1100
Installation

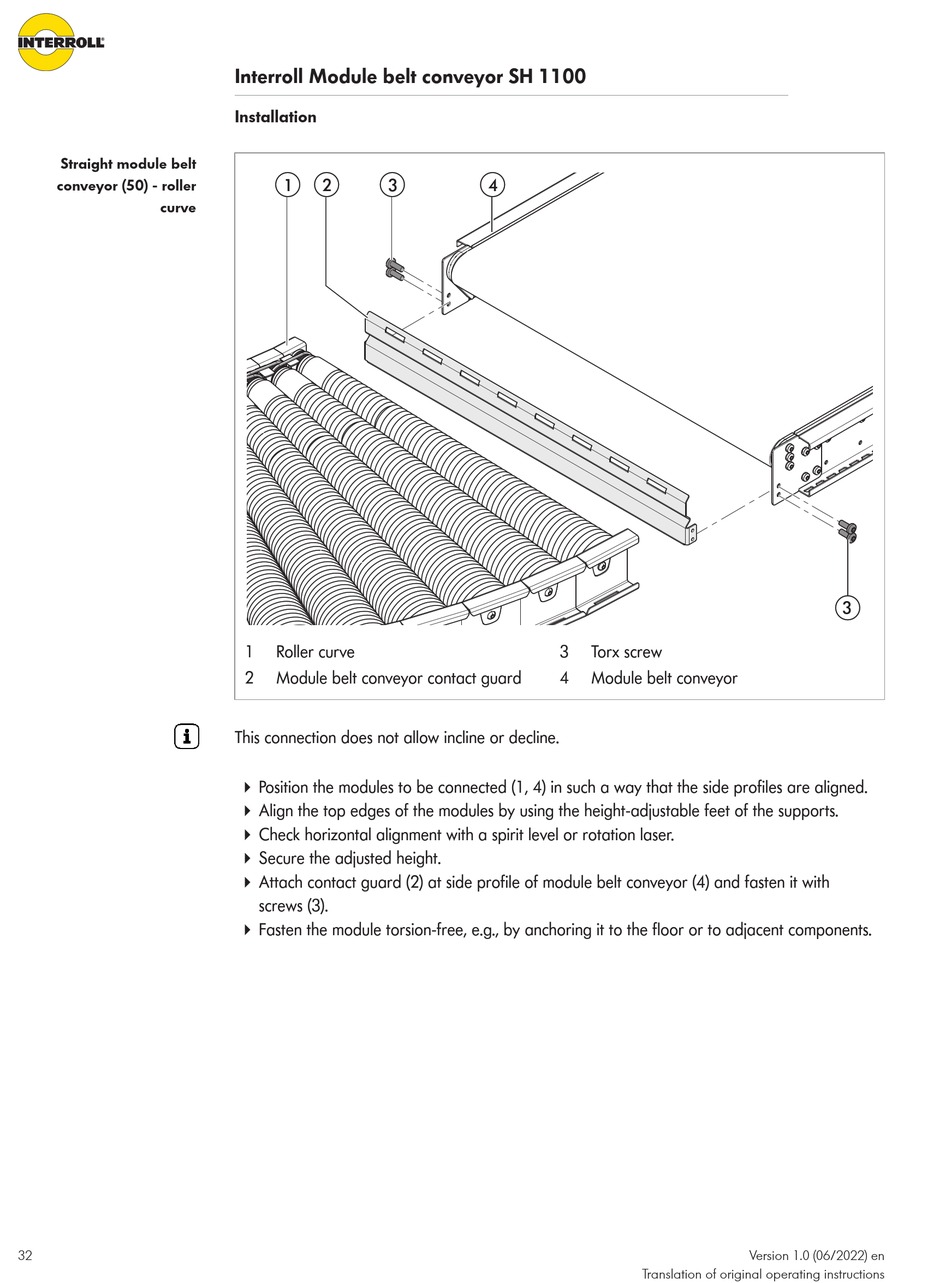

1 2 3
1 Roller curve
2 Module belt conveyor contact guard
This connection does not allow incline or decline.
4 Position the modules to be connected (1, 4) in such a way that the side profiles are aligned.
4 Align the top edges of the modules by using the height-adjustable feet of the supports.
4 Check horizontal alignment with a spirit level or rotation laser.
4 Secure the adjusted height.
4 Attach contact guard (2) at side profile of module belt conveyor (4) and fasten it with
screws (3).
4 Fasten the module torsion-free, e.g., by anchoring it to the floor or to adjacent components.
4
3 Torx screw
4 Module belt conveyor
