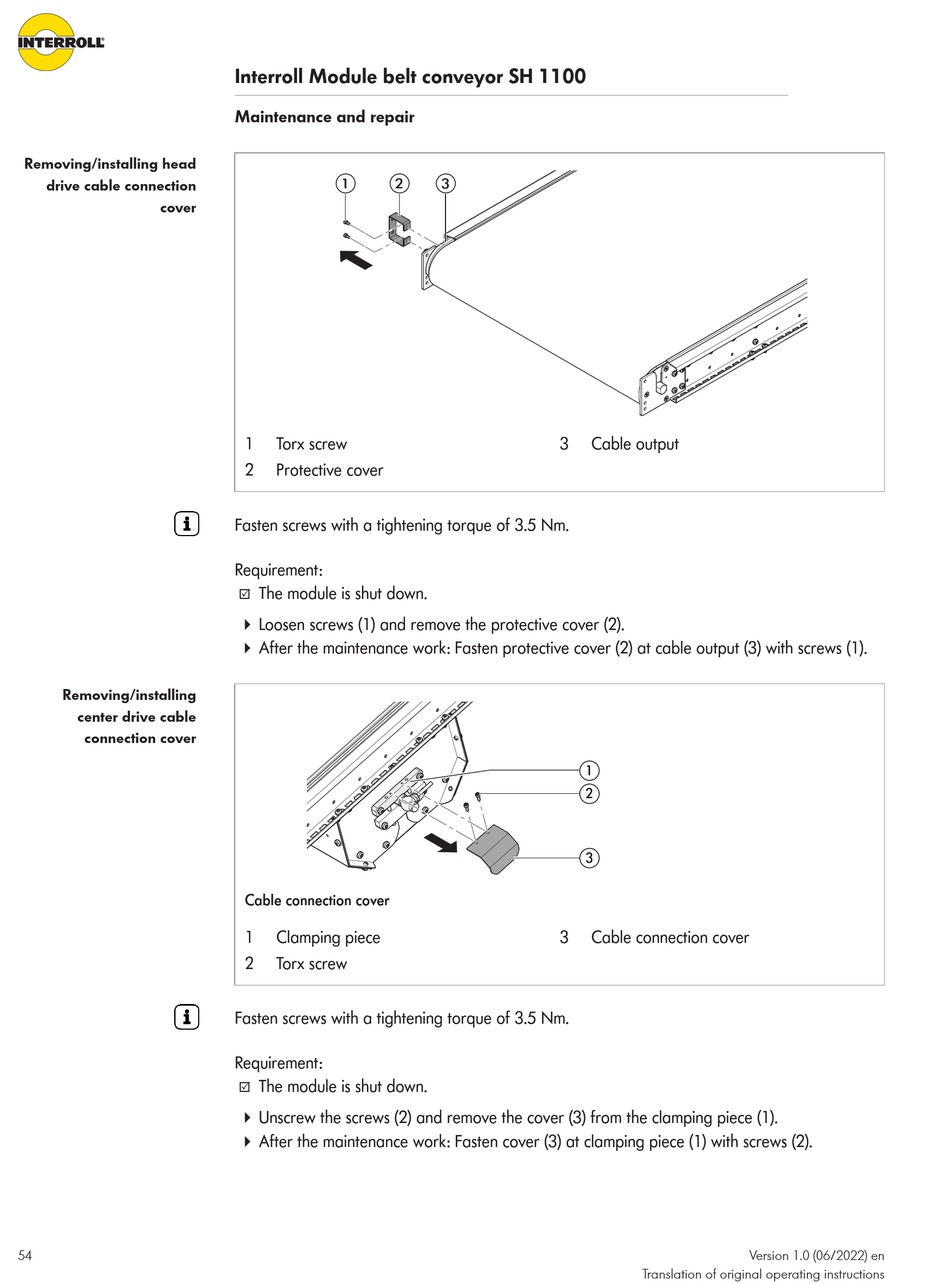

Removing/installing head
drive cable connection
cover
Removing/installing
center drive cable
connection cover
54
Interroll Module belt conveyor SH 1100
Maintenance and repair
1 2
1 Torx screw
2 Protective cover
Fasten screws with a tightening torque of 3.5 Nm.
Requirement:
The module is shut down.
R
4 Loosen screws (1) and remove the protective cover (2).
4 After the maintenance work: Fasten protective cover (2) at cable output (3) with screws (1).
Cable connection cover
1 Clamping piece
2 Torx screw
Fasten screws with a tightening torque of 3.5 Nm.
Requirement:
The module is shut down.
R
4 Unscrew the screws (2) and remove the cover (3) from the clamping piece (1).
4 After the maintenance work: Fasten cover (3) at clamping piece (1) with screws (2).
3
3 Cable output
1
2
3
3 Cable connection cover
