Removing/installing cover
plates at return axles
52
Interroll Module belt conveyor SH 1100
Maintenance and repair
1

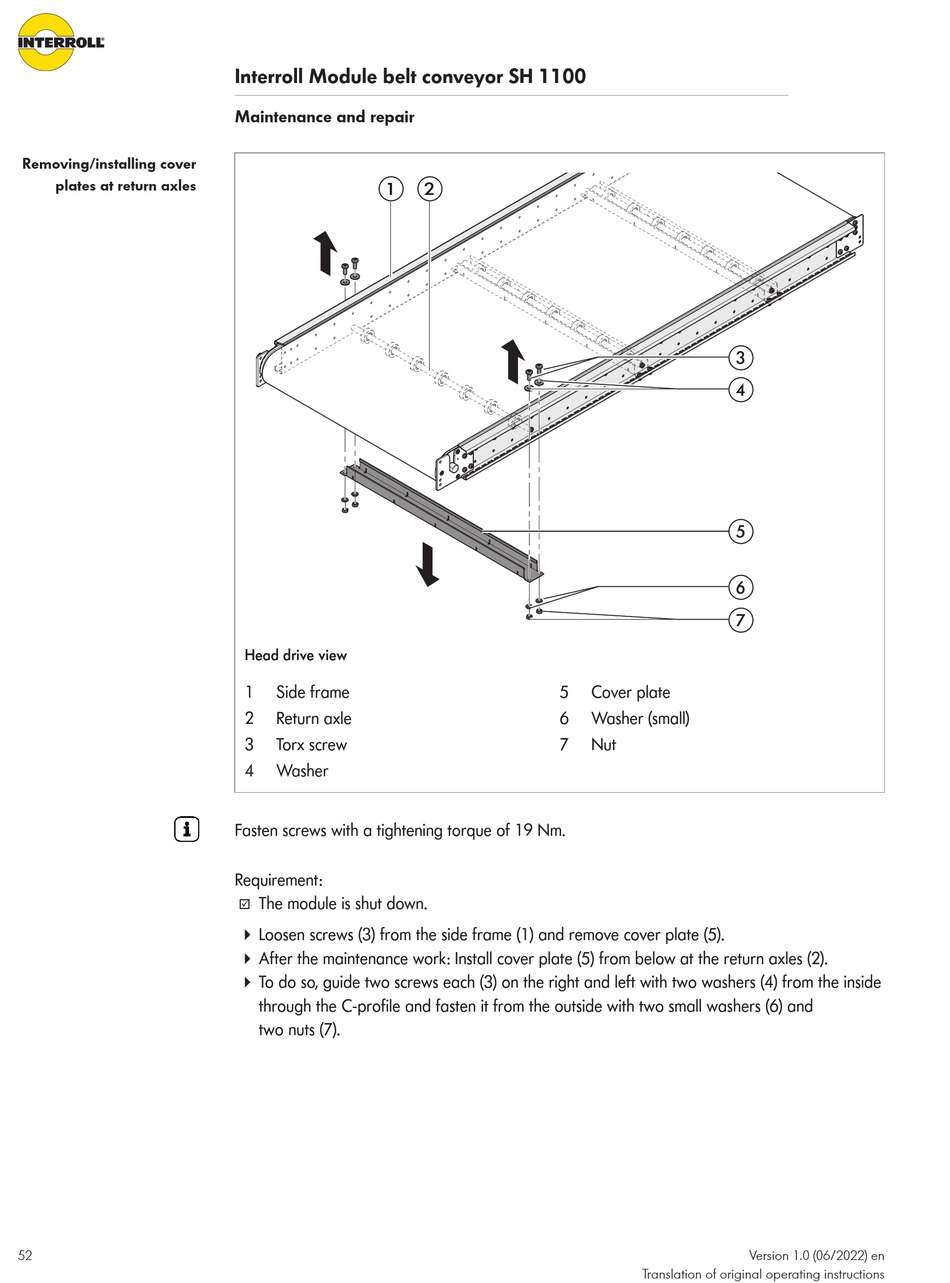

Head drive view
1 Side frame
2 Return axle
3 Torx screw
4 Washer
Fasten screws with a tightening torque of 19 Nm.
Requirement:
The module is shut down.
R
4 Loosen screws (3) from the side frame (1) and remove cover plate (5).
4 After the maintenance work: Install cover plate (5) from below at the return axles (2).
4 To do so, guide two screws each (3) on the right and left with two washers (4) from the inside
through the C-profile and fasten it from the outside with two small washers (6) and
two nuts (7).
2
5 Cover plate
6 Washer (small)
7 Nut
3
4
5
6
7
