Straight module belt
conveyor (50) - straight
module belt conveyor (50)
34

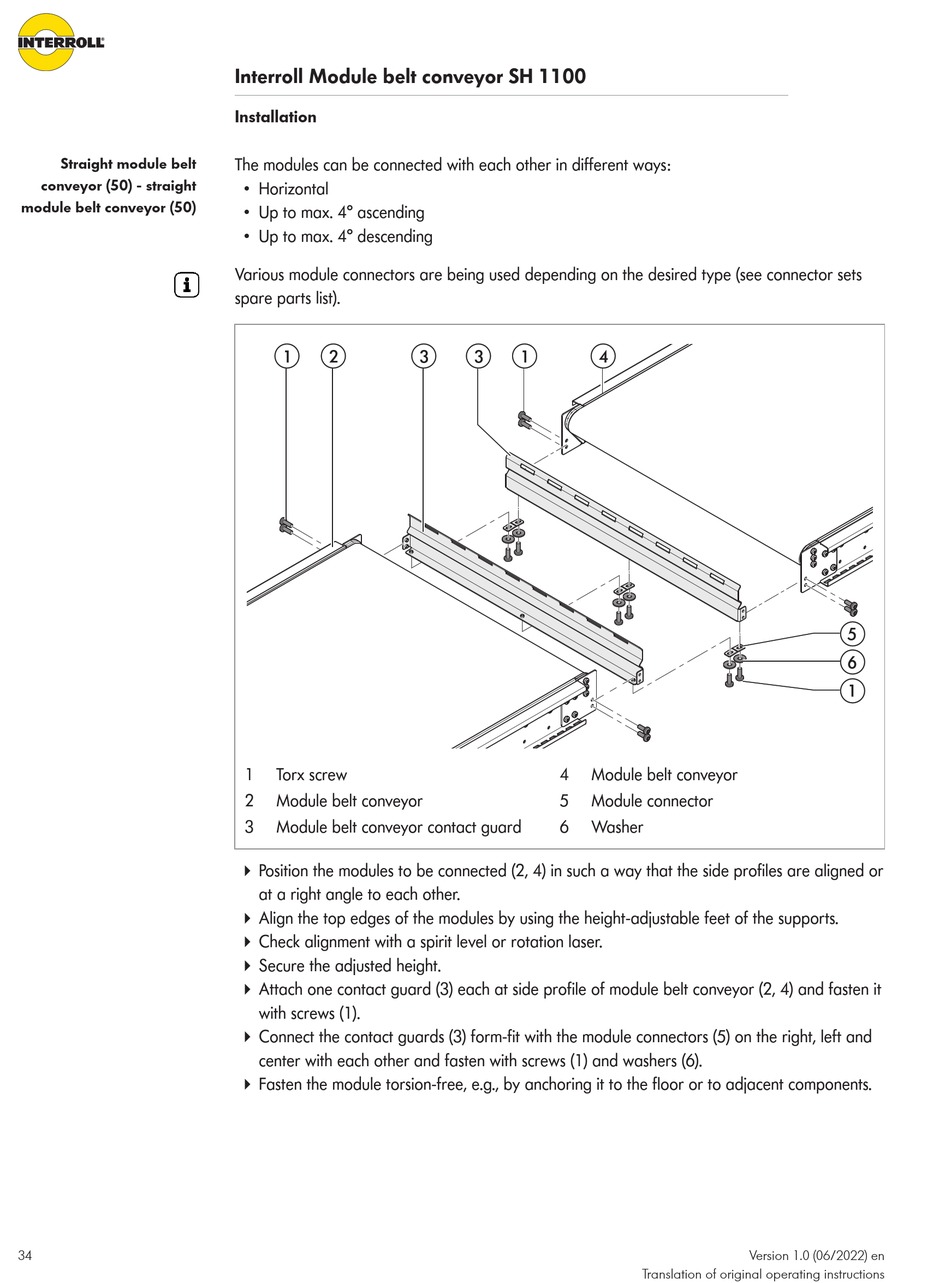

Interroll Module belt conveyor SH 1100
Installation
The modules can be connected with each other in different ways:
• Horizontal
• Up to max. 4° ascending
• Up to max. 4° descending
Various module connectors are being used depending on the desired type (see connector sets
spare parts list).
1
2
1
Torx screw
2
Module belt conveyor
3
Module belt conveyor contact guard
4 Position the modules to be connected (2, 4) in such a way that the side profiles are aligned or
at a right angle to each other.
4 Align the top edges of the modules by using the height-adjustable feet of the supports.
4 Check alignment with a spirit level or rotation laser.
4 Secure the adjusted height.
4 Attach one contact guard (3) each at side profile of module belt conveyor (2, 4) and fasten it
with screws (1).
4 Connect the contact guards (3) form-fit with the module connectors (5) on the right, left and
center with each other and fasten with screws (1) and washers (6).
4 Fasten the module torsion-free, e.g., by anchoring it to the floor or to adjacent components.
3
3
1
4
4
Module belt conveyor
5
Module connector
6
Washer
Version 1.0 (06/2022) en
Translation of original operating instructions
5
6
