Interroll Module belt conveyor SH 1100
Maintenance and repair

Replacing rollers/axles

1 2

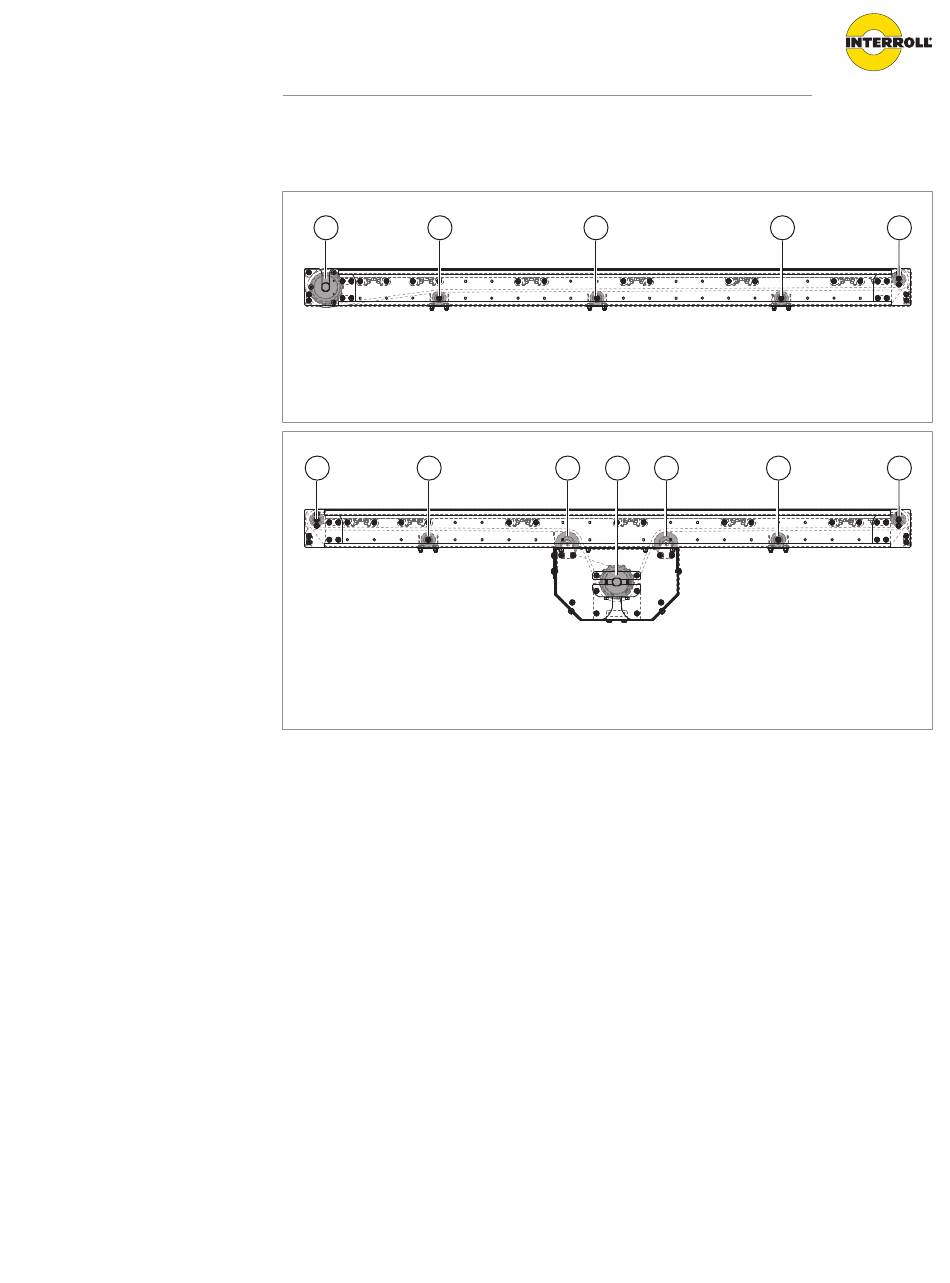

Overview of rollers/axles for module belt conveyor - straight with head drive
1 Drum motor
2 Return axle
1 2
Overview of rollers/axles for module belt conveyor - straight with center drive
1 Front idler axle
2 Return axle
The rollers and axles of the module belt conveyor may require the following maintenance tasks
to be performed or parts to be replaced:
• Replace the entire center drive station, see "Replacing the center drive station", page 60
• Replace the drum motor (head drive), see "Replacing the drum motor (head drive)", page 62
• Remove the holder from the drum motor, see "Removing/installing holder from/on the drum
motor (head drive)", page 63
• Remove the drum motor (center drive), see "Removing/installing drum motor (center drive)",
page 64
• Replace sprockets at drum motor, see "Replace the sprockets", page 66
• Replace return axle, see "Replacing the return axle", page 67
• Replace idler axle at the front, see "Replacing the front idler axle", page 68
2
3 Front idler axle
3 4 3
3 Idler pulley
4 Drum motor
2 3
2 1
