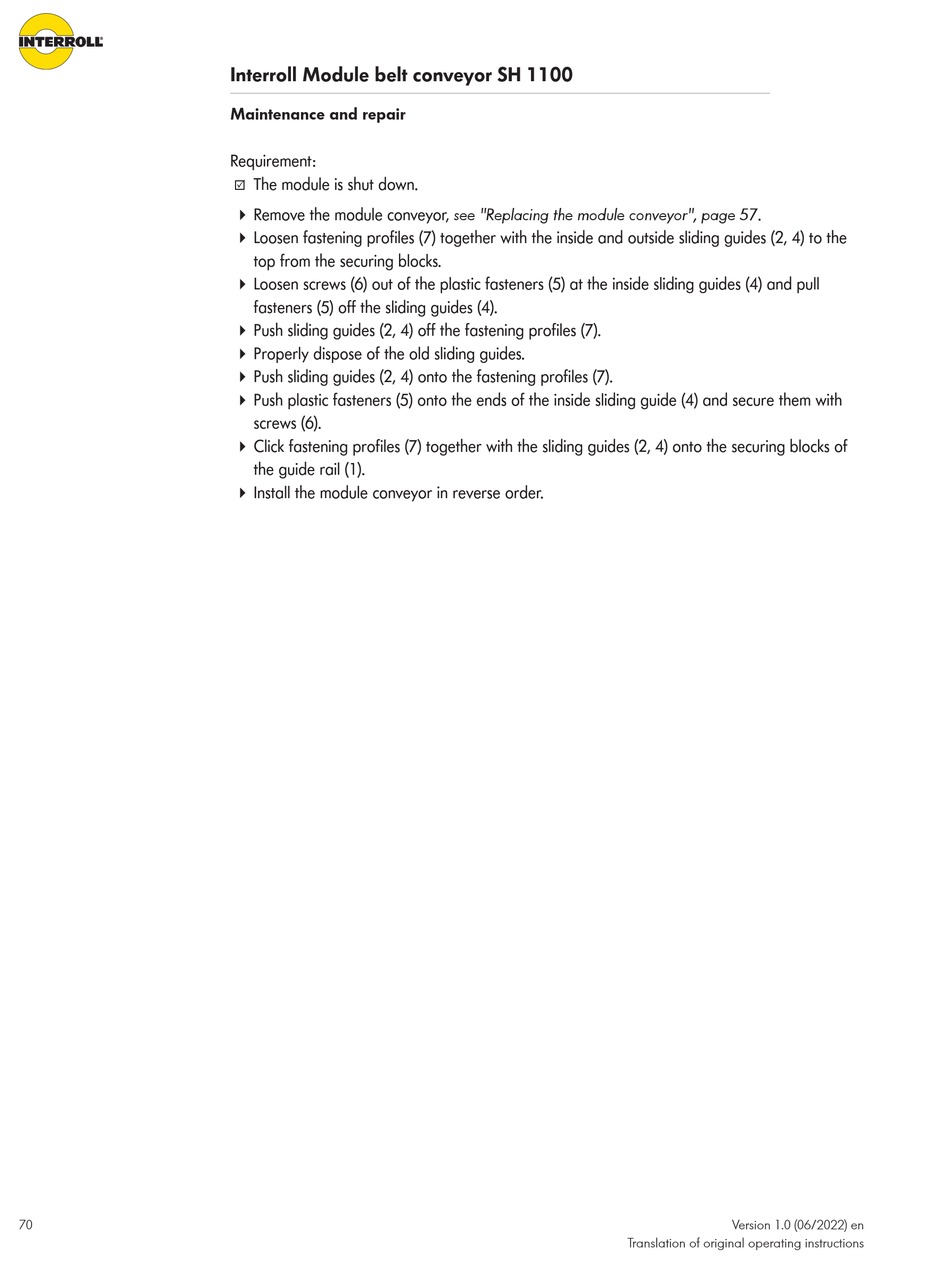

Interroll Module belt conveyor SH 1100
Maintenance and repair
Requirement:
The module is shut down.
R
4 Remove the module conveyor, see "Replacing the module conveyor", page 57.
4 Loosen fastening profiles (7) together with the inside and outside sliding guides (2, 4) to the
top from the securing blocks.
4 Loosen screws (6) out of the plastic fasteners (5) at the inside sliding guides (4) and pull
fasteners (5) off the sliding guides (4).
4 Push sliding guides (2, 4) off the fastening profiles (7).
4 Properly dispose of the old sliding guides.
4 Push sliding guides (2, 4) onto the fastening profiles (7).
4 Push plastic fasteners (5) onto the ends of the inside sliding guide (4) and secure them with
screws (6).
4 Click fastening profiles (7) together with the sliding guides (2, 4) onto the securing blocks of
the guide rail (1).
4 Install the module conveyor in reverse order.
