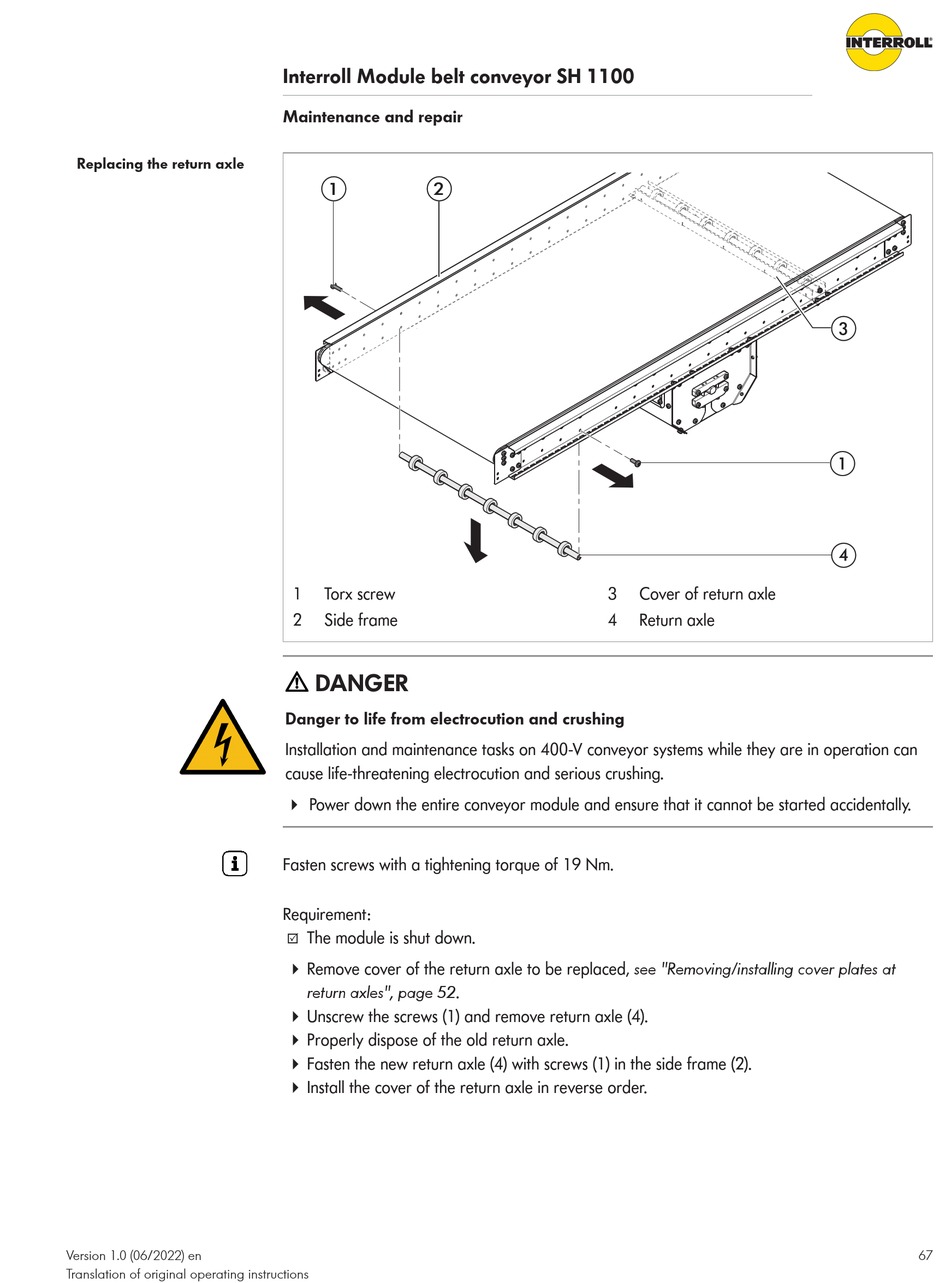

Replacing the return axle

Version 1.0 (06/2022) en
Translation of original operating instructions
Interroll Module belt conveyor SH 1100
Maintenance and repair
1 2
1 Torx screw
2 Side frame
DANGER
Danger to life from electrocution and crushing
Installation and maintenance tasks on 400-V conveyor systems while they are in operation can
cause life-threatening electrocution and serious crushing.
4 Power down the entire conveyor module and ensure that it cannot be started accidentally.
Fasten screws with a tightening torque of 19 Nm.
Requirement:
The module is shut down.
R
4 Remove cover of the return axle to be replaced, see "Removing/installing cover plates at
return axles", page 52.
4 Unscrew the screws (1) and remove return axle (4).
4 Properly dispose of the old return axle.
4 Fasten the new return axle (4) with screws (1) in the side frame (2).
4 Install the cover of the return axle in reverse order.
3 Cover of return axle
4 Return axle
3
1
4
