Version 1.0 (06/2022) en
Translation of original operating instructions
Interroll Roller curve SH 1210

Product identification

Roller curve (SH 1210)

The Interroll roller curve is available in the following rated widths (BF):
• S: 405 mm
• M: 710 mm
• L: 862 mm
1

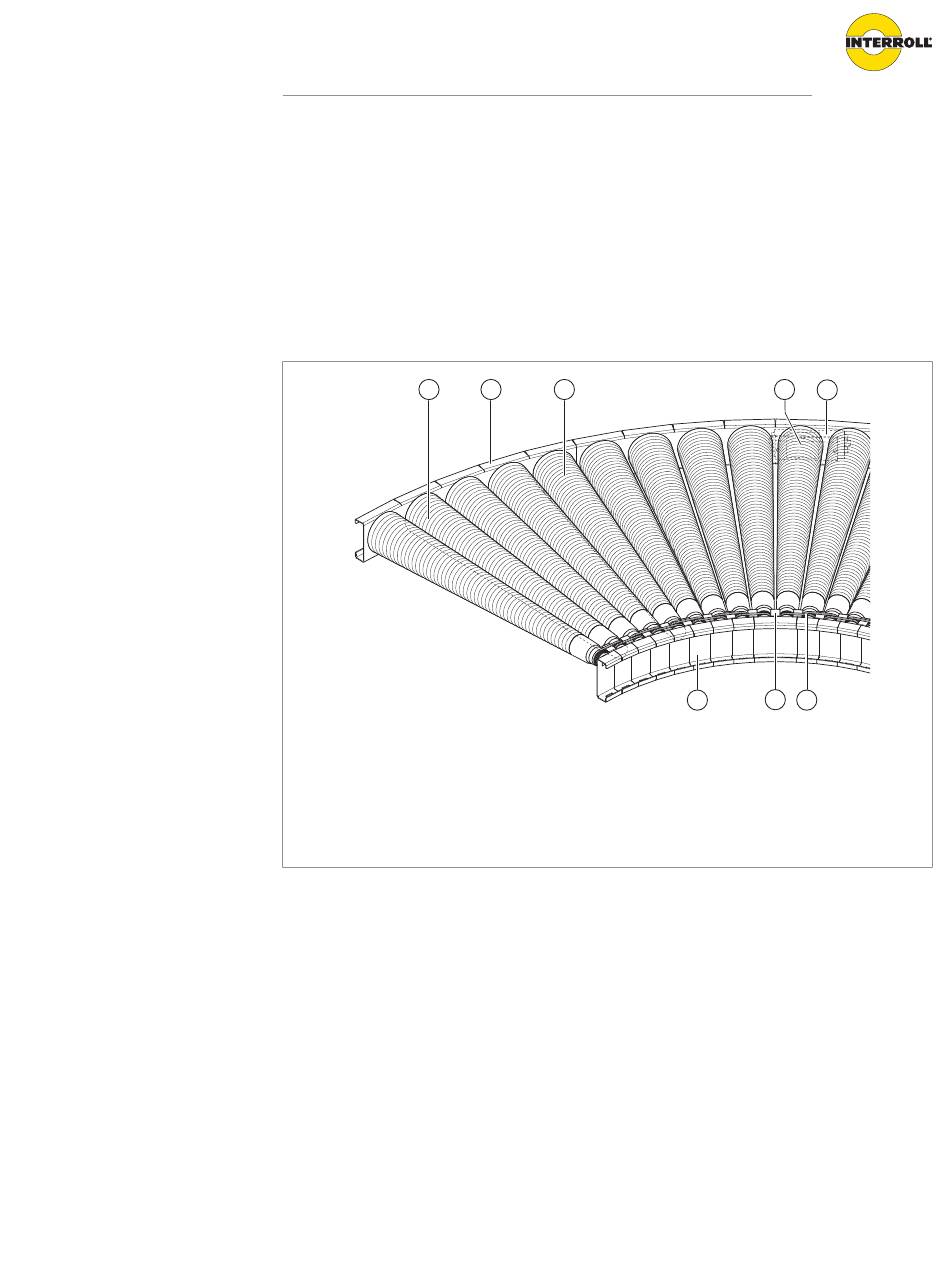

Roller curve
1 Roller
2 Side frame at outside radius
3 Drive roller (RollerDrive)
4 Adapter plate
The module changes the direction of transport of roller conveyor-capable goods, such as
parcels, cardboard cartons or boxes.
Depending on the size of the module, the rated width is 405 mm (S), 710 mm (M) or 862 mm (L).
The module's rollers are driven by several PolyVee belts running from roller to roller. The drive is
provided by an Interroll RollerDrive EC5000.
Using the Interroll RollerDrive allows for a compact design. Since the drive is located within the
side profiles, the individual modules can be installed very close to each other. Together with
MultiControl, it is very easy to implement a zero-pressure accumulation conveyor.
The base frame of the conveyor consists of stainless steel profiles with adjustable feet. As a
result, the transfer dimensions to adjacent modules are variably adjustable and the module can
be adjusted for uneven floors.
2 3
5 MultiControl
6 Drive belt
7 Finger guard
8 Side frame at inside radius
4 5
7
8 6
