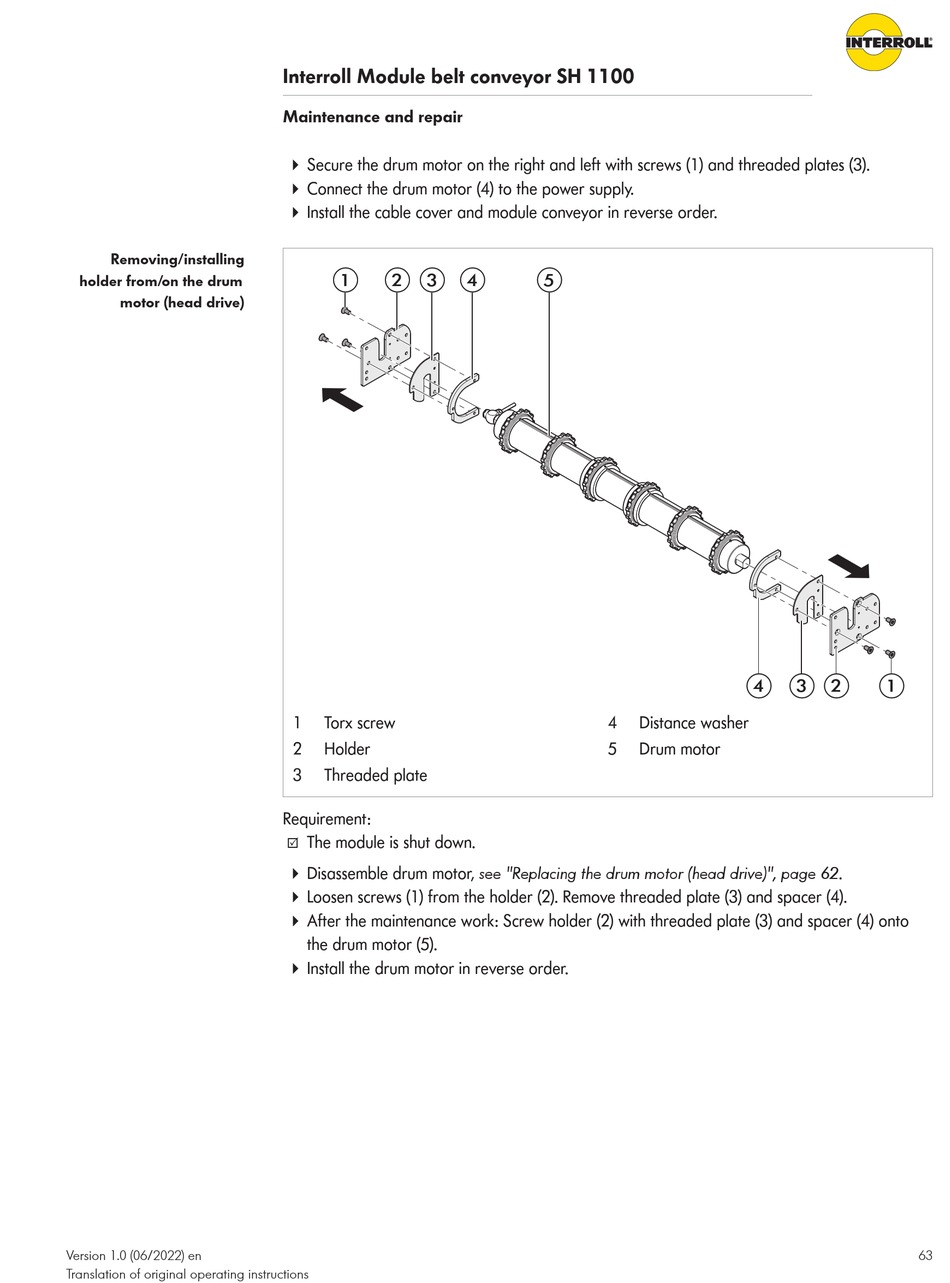

Removing/installing
holder from/on the drum
motor (head drive)
Version 1.0 (06/2022) en
Translation of original operating instructions
Interroll Module belt conveyor SH 1100
Maintenance and repair
4 Secure the drum motor on the right and left with screws (1) and threaded plates (3).
4 Connect the drum motor (4) to the power supply.
4 Install the cable cover and module conveyor in reverse order.
1 2 3
1 Torx screw
2 Holder
3 Threaded plate
Requirement:
The module is shut down.
R
4 Disassemble drum motor, see "Replacing the drum motor (head drive)", page 62.
4 Loosen screws (1) from the holder (2). Remove threaded plate (3) and spacer (4).
4 After the maintenance work: Screw holder (2) with threaded plate (3) and spacer (4) onto
the drum motor (5).
4 Install the drum motor in reverse order.
4 5
4 Distance washer
5 Drum motor
4 3 2 1
