Installing the photo cell

Version 1.0 (06/2022) en
Translation of original operating instructions
Interroll Module belt conveyor SH 1100
Installation
7

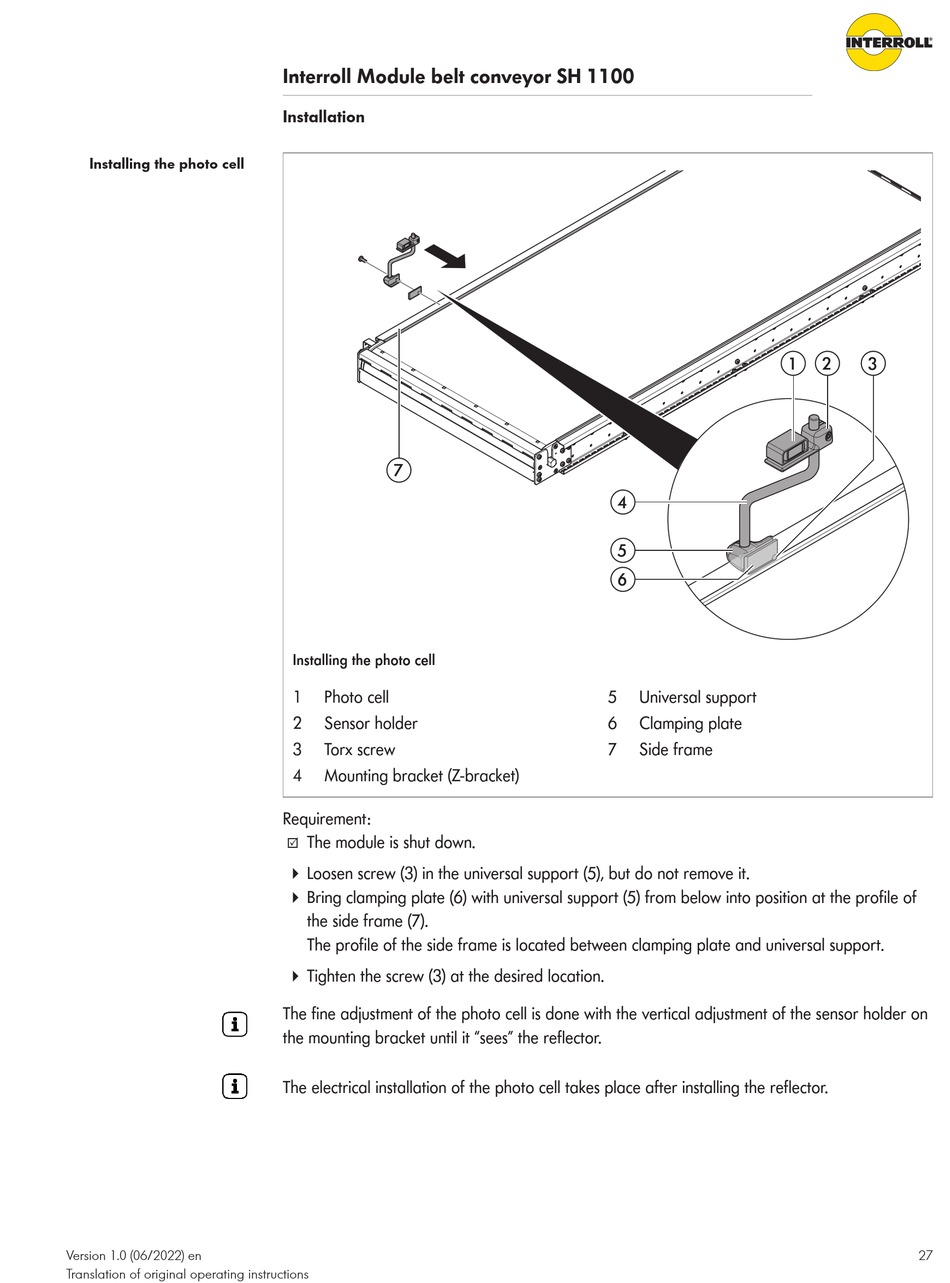

Installing the photo cell
1 Photo cell
2 Sensor holder
3 Torx screw
4 Mounting bracket (Z-bracket)
Requirement:
The module is shut down.
R
4 Loosen screw (3) in the universal support (5), but do not remove it.
4 Bring clamping plate (6) with universal support (5) from below into position at the profile of
the side frame (7).
The profile of the side frame is located between clamping plate and universal support.
4 Tighten the screw (3) at the desired location.
The fine adjustment of the photo cell is done with the vertical adjustment of the sensor holder on
the mounting bracket until it "sees" the reflector.
The electrical installation of the photo cell takes place after installing the reflector.
4
5
6
5 Universal support
6 Clamping plate
7 Side frame
1 2 3
