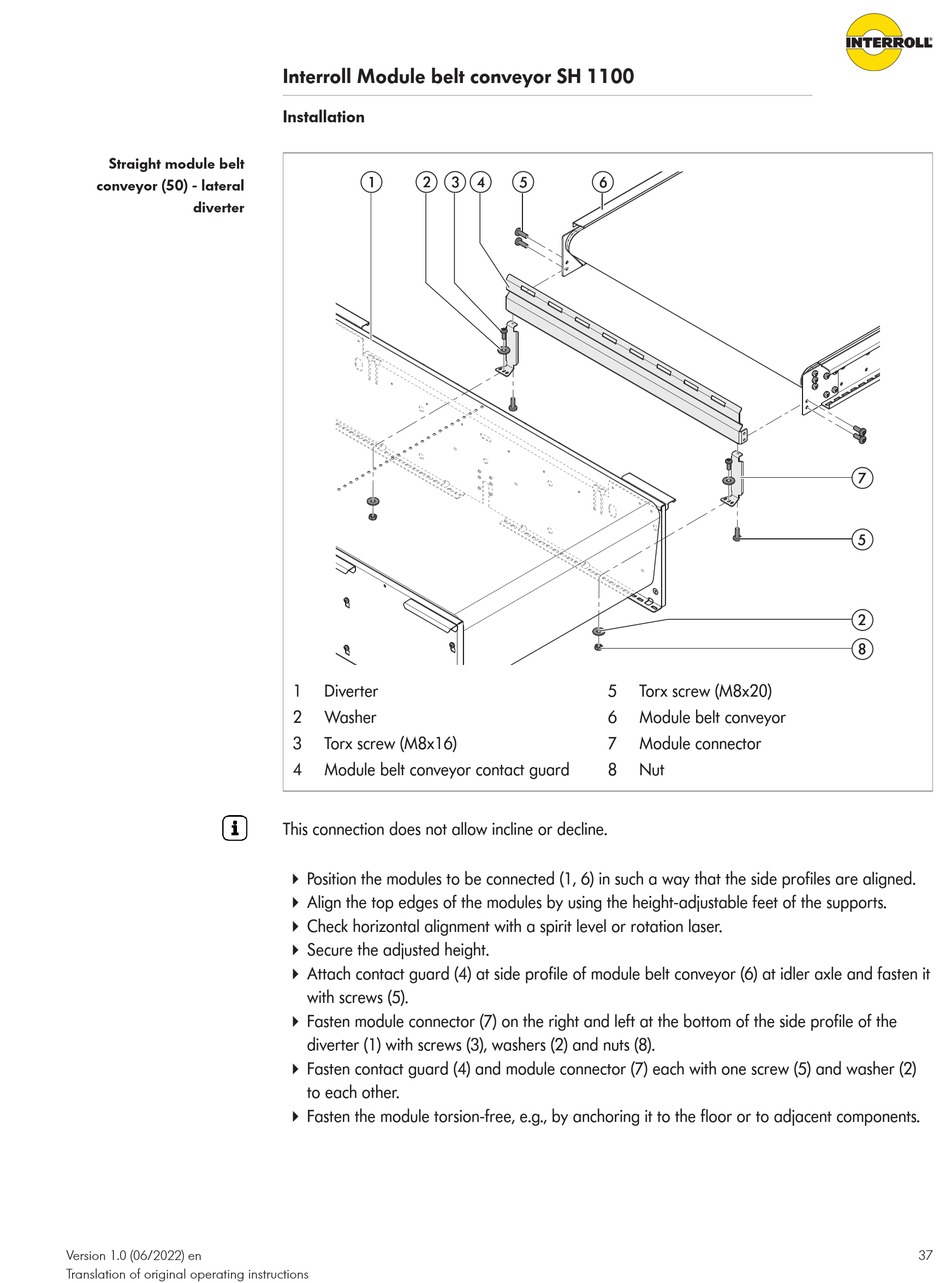

Straight module belt
conveyor (50) - lateral
diverter
Version 1.0 (06/2022) en
Translation of original operating instructions
Interroll Module belt conveyor SH 1100
Installation
1
2
3
1
Diverter
2
Washer
3
Torx screw (M8x16)
4
Module belt conveyor contact guard
This connection does not allow incline or decline.
4 Position the modules to be connected (1, 6) in such a way that the side profiles are aligned.
4 Align the top edges of the modules by using the height-adjustable feet of the supports.
4 Check horizontal alignment with a spirit level or rotation laser.
4 Secure the adjusted height.
4 Attach contact guard (4) at side profile of module belt conveyor (6) at idler axle and fasten it
with screws (5).
4 Fasten module connector (7) on the right and left at the bottom of the side profile of the
diverter (1) with screws (3), washers (2) and nuts (8).
4 Fasten contact guard (4) and module connector (7) each with one screw (5) and washer (2)
to each other.
4 Fasten the module torsion-free, e.g., by anchoring it to the floor or to adjacent components.
4
5
6
5
Torx screw (M8x20)
6
Module belt conveyor
7
Module connector
8
Nut
7
5
2
8
37
