Removing/Installing Drum Motor (Center Drive) - Interroll SH 1100 Installation And Operating Instructions Manual

Removing/installing drum
motor (center drive)
64

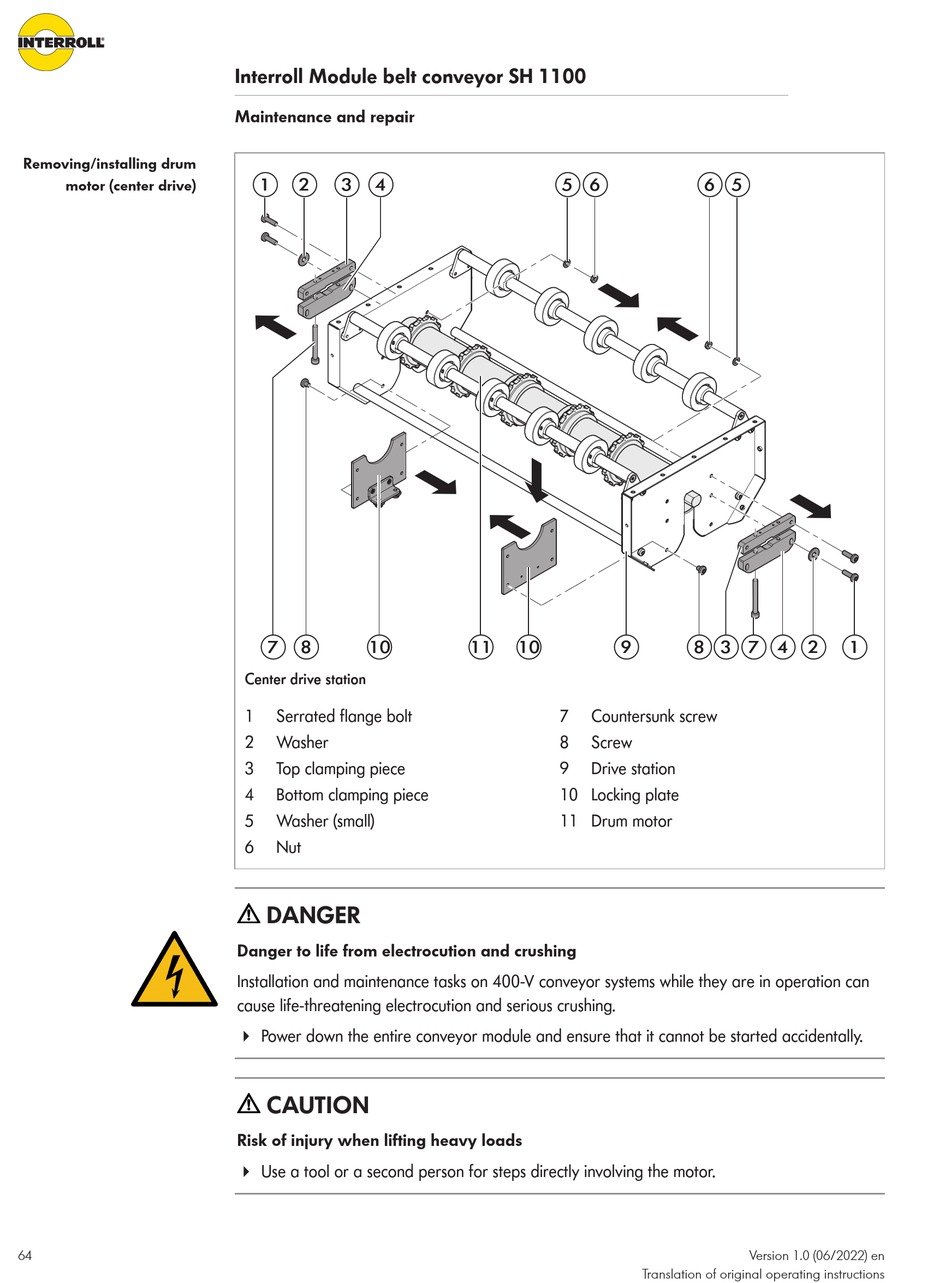

Interroll Module belt conveyor SH 1100
Maintenance and repair
1 2 3 4
7 8 10
Center drive station
1 Serrated flange bolt
2 Washer
3 Top clamping piece
4 Bottom clamping piece
5 Washer (small)
6 Nut
DANGER
Danger to life from electrocution and crushing
Installation and maintenance tasks on 400-V conveyor systems while they are in operation can
cause life-threatening electrocution and serious crushing.
4 Power down the entire conveyor module and ensure that it cannot be started accidentally.
CAUTION
Risk of injury when lifting heavy loads
4 Use a tool or a second person for steps directly involving the motor.
5 6
11 10 9
7 Countersunk screw
8 Screw
9 Drive station
10 Locking plate
11 Drum motor
Translation of original operating instructions
6 5
8 3 7 4 2 1
Version 1.0 (06/2022) en
