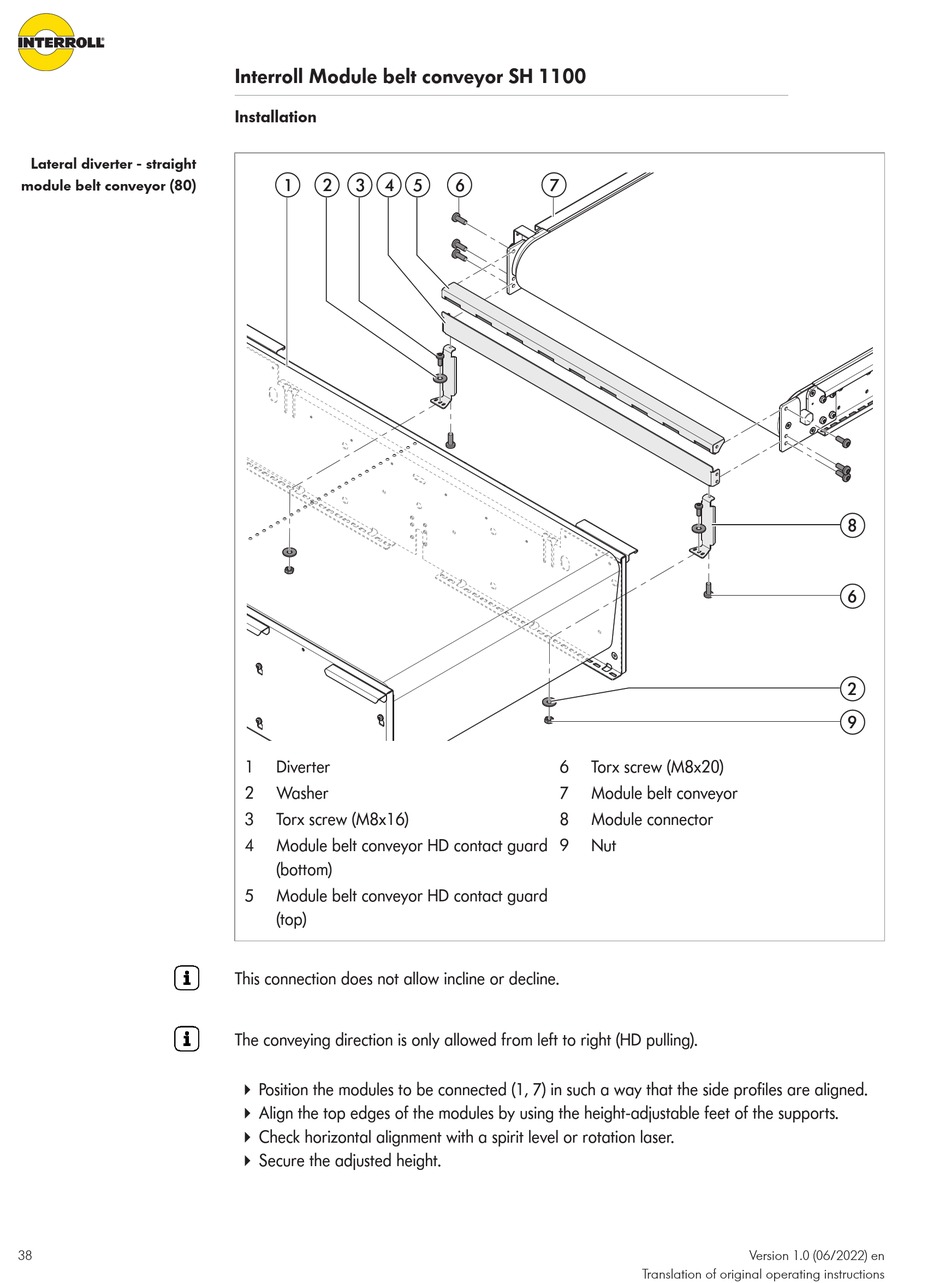

Lateral diverter - straight
module belt conveyor (80)
38
Interroll Module belt conveyor SH 1100
Installation
1 2 3 4 5
1 Diverter
2 Washer
3 Torx screw (M8x16)
4 Module belt conveyor HD contact guard
(bottom)
5 Module belt conveyor HD contact guard
(top)
This connection does not allow incline or decline.
The conveying direction is only allowed from left to right (HD pulling).
4 Position the modules to be connected (1, 7) in such a way that the side profiles are aligned.
4 Align the top edges of the modules by using the height-adjustable feet of the supports.
4 Check horizontal alignment with a spirit level or rotation laser.
4 Secure the adjusted height.
6 7
6 Torx screw (M8x20)
7 Module belt conveyor
8 Module connector
9 Nut
Version 1.0 (06/2022) en
Translation of original operating instructions
8
6
2
9
