Interroll Module belt conveyor SH 1100

Product identification

Module belt conveyor - straight (SH 1100)

The Interroll straight module belt conveyor is available in the following rated widths (BF):
• S: 405 mm
• M: 710 mm
• L: 862 mm
as well as in the following drive variants:
• SH 1100 HD (Head Drive)
• SH 1100 CD (Center Drive)
The straight module belt conveyor SH 1100 consists of the central ascending belt and features
neither upper arch nor feed belt.
1

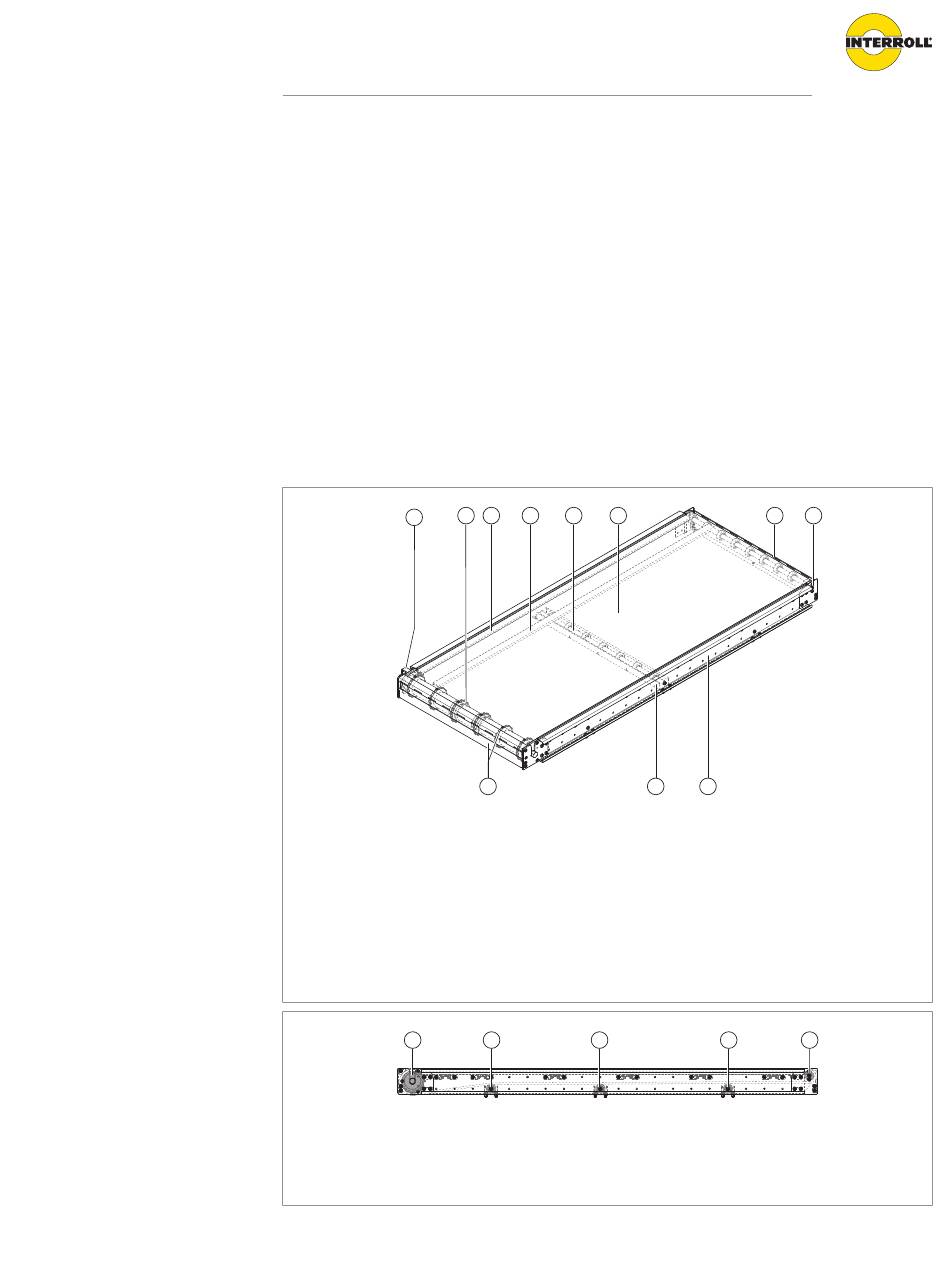

Straight module belt conveyor head drive SH 1100 HD with drum motor (top view)
1 Cable output protective cover
2 Head drive drum motor
3 Outside sliding guide
4 Inside sliding guide
5 Return axle
6 Module conveyor
1
Straight module belt conveyor head drive SH 1100 HD with drum motor (side view)
1 Head drive drum motor
2 Return axle
2 3 4 5 6
11
7 End plate
8 Front idler axle
9 Side frame
10 Return axle cover plate
11 Head drive cover
2 2
3 Front idler axle
7 8
10 9
2 3
