Spare parts list of
SH 1100 with center drive
80

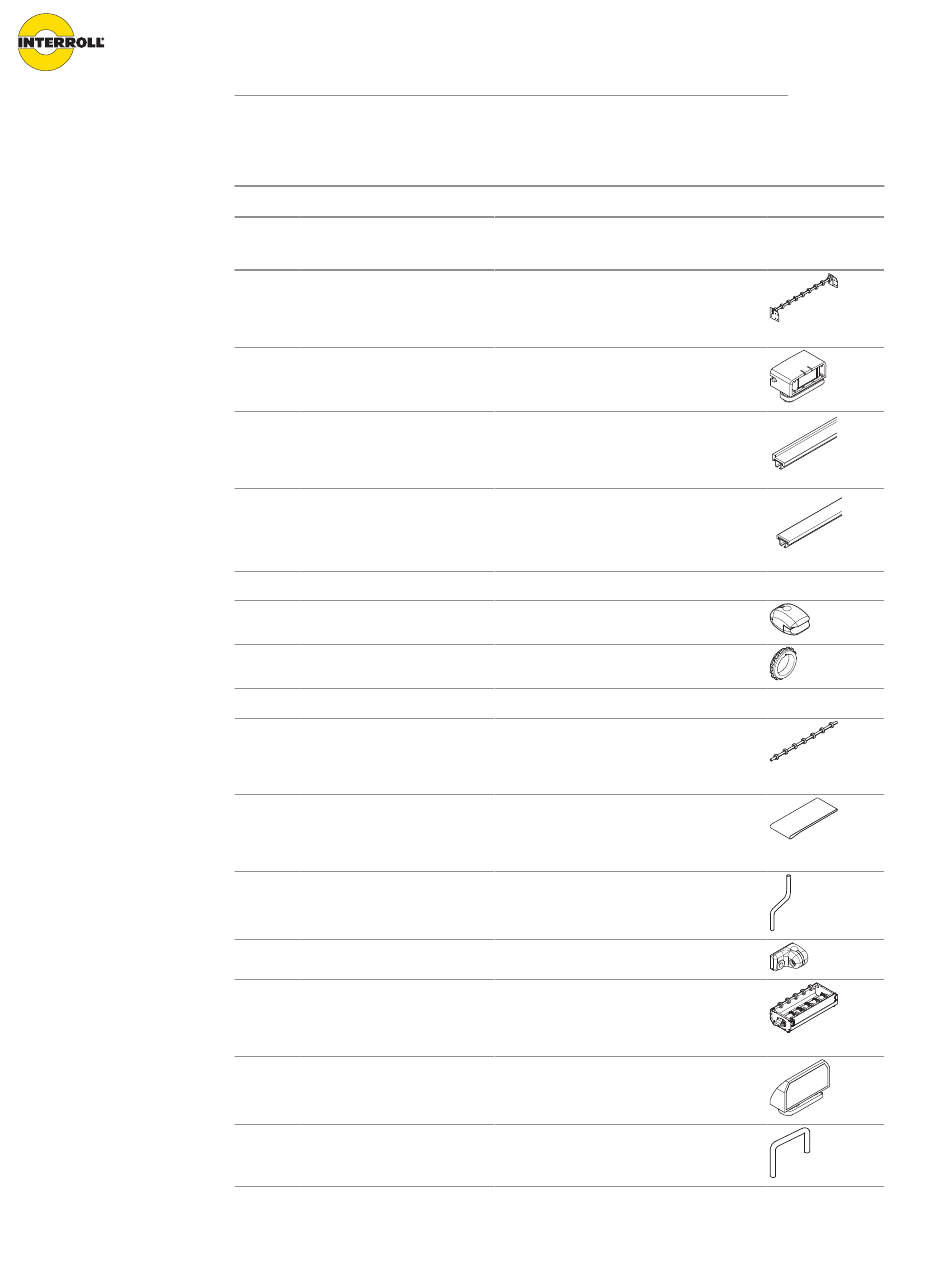

Interroll Module belt conveyor SH 1100
Spare and wear parts
S = spare part, W = wear part, T = tool
Type: 1100 center drive (S, M, L)
Item Designation
No.:
1 Front idler axle
2 Photo cell incl. housing,
fastening clip and cable
3 Outside sliding guide (incl.
fastening profiles and
securing blocks)
4 Inside sliding guide (incl.
fastening profiles and
securing blocks)
5 Side guide
6 Side guide bracket
7 Sprocket
8 Set collar
9 Return axle
10 Module conveyor
11 Mounting bracket Z
12 Universal support
13 Drive station (CD)
14 Reflector incl. reflective
tape and fastening clip
15 Mounting bracket U
Material number S/W/T
S: 63180130 S
M: 63180133
L: 63170922
63104071 S
63170821 S
63170820 S
1129435 S
63172677 S
63170835 S
63170839 S
S: 63170990 S
M: 63170937
L: 63170818
S: 1129573 S
M: 1129574
L: 1129575
63172672 S
63172654 S
S: 63180122 S
M: 63180125
L: 63180127
64000905 S
63172696 S
