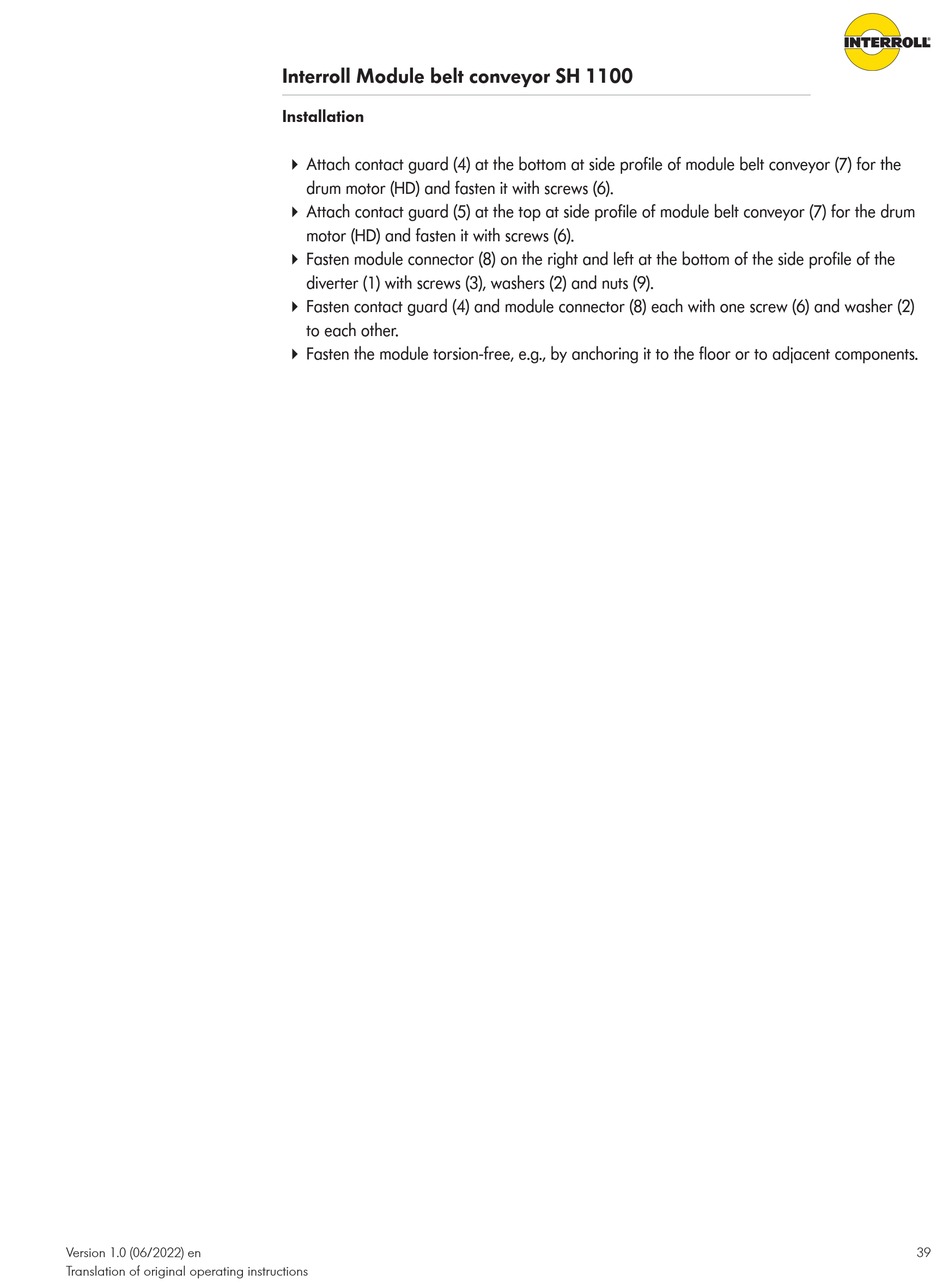

Interroll SH 1100 Installation And Operating Instructions Manual page 39

Version 1.0 (06/2022) en
Translation of original operating instructions
Interroll Module belt conveyor SH 1100
Installation
4 Attach contact guard (4) at the bottom at side profile of module belt conveyor (7) for the
drum motor (HD) and fasten it with screws (6).
4 Attach contact guard (5) at the top at side profile of module belt conveyor (7) for the drum
motor (HD) and fasten it with screws (6).
4 Fasten module connector (8) on the right and left at the bottom of the side profile of the
diverter (1) with screws (3), washers (2) and nuts (9).
4 Fasten contact guard (4) and module connector (8) each with one screw (6) and washer (2)
to each other.
4 Fasten the module torsion-free, e.g., by anchoring it to the floor or to adjacent components.
