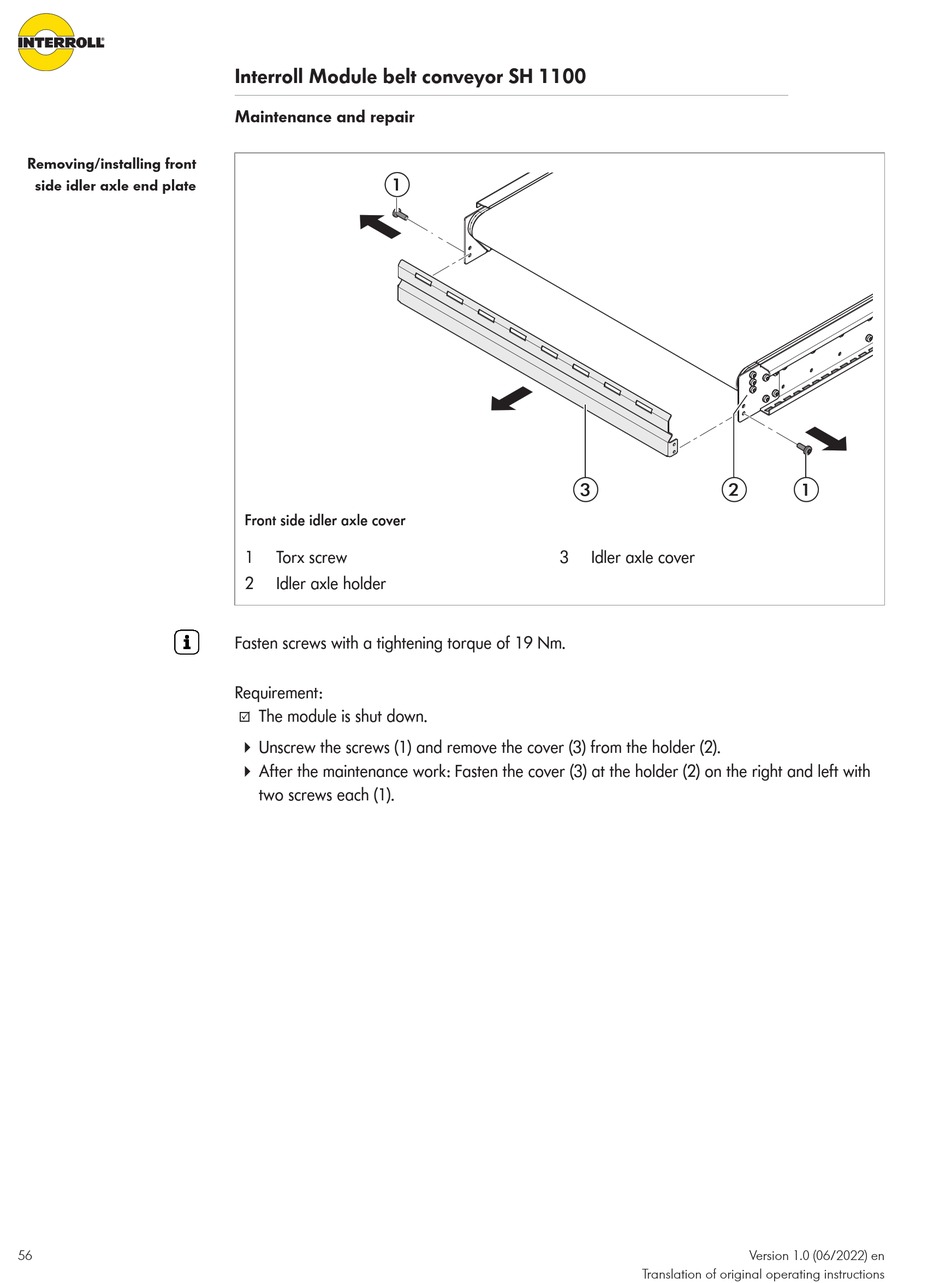

Removing/installing front
side idler axle end plate
56
Interroll Module belt conveyor SH 1100
Maintenance and repair
1
Front side idler axle cover
1
Torx screw
2
Idler axle holder
Fasten screws with a tightening torque of 19 Nm.
Requirement:
The module is shut down.
R
4 Unscrew the screws (1) and remove the cover (3) from the holder (2).
4 After the maintenance work: Fasten the cover (3) at the holder (2) on the right and left with
two screws each (1).
3
2
3
Idler axle cover
Translation of original operating instructions
1
Version 1.0 (06/2022) en
