Replacing the module
conveyor (center drive)
58
Interroll Module belt conveyor SH 1100
Maintenance and repair
1 2

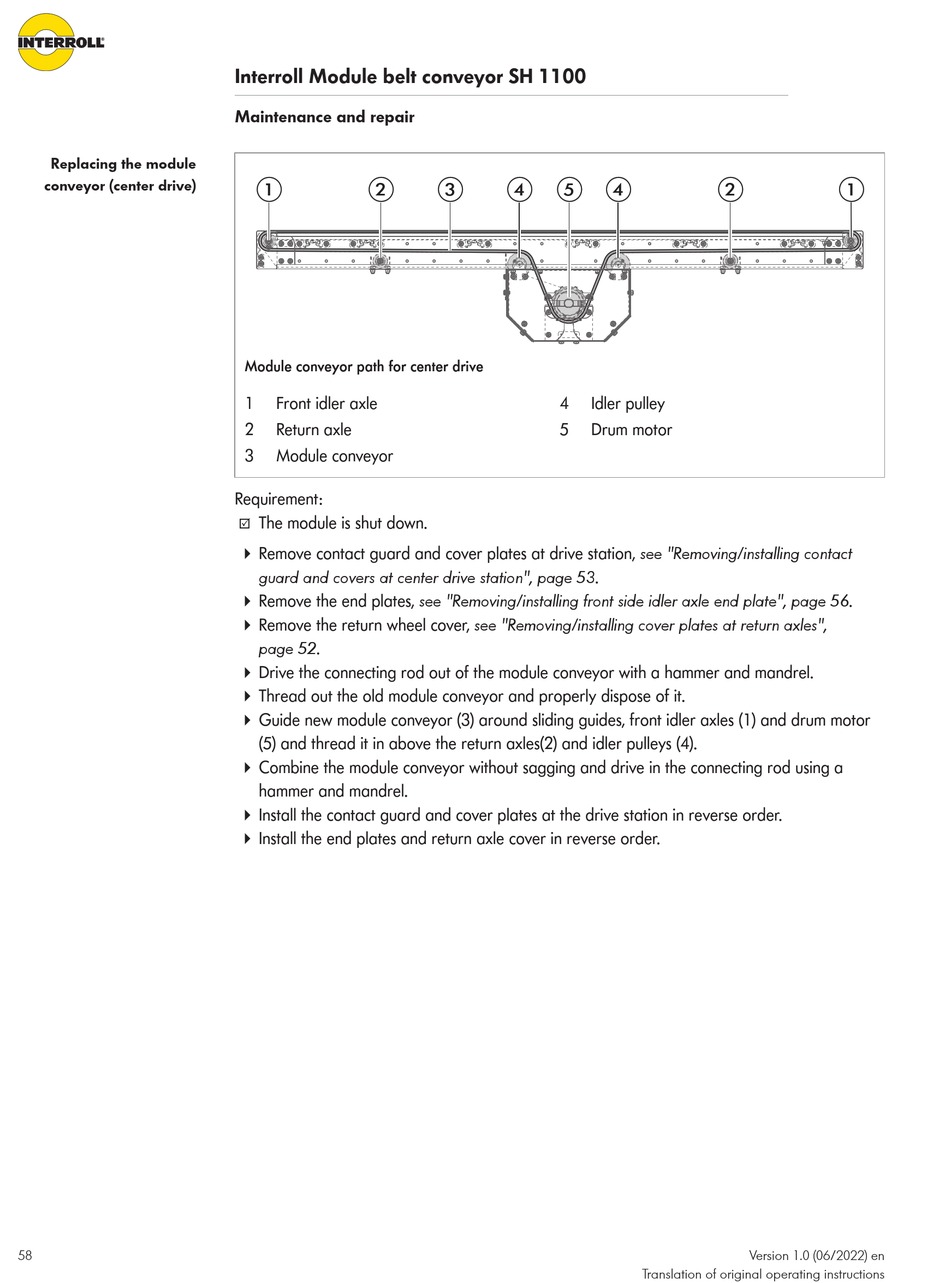

Module conveyor path for center drive
1 Front idler axle
2 Return axle
3 Module conveyor
Requirement:
The module is shut down.
R
4 Remove contact guard and cover plates at drive station, see "Removing/installing contact
guard and covers at center drive station", page 53.
4 Remove the end plates, see "Removing/installing front side idler axle end plate", page 56.
4 Remove the return wheel cover, see "Removing/installing cover plates at return axles",
page 52.
4 Drive the connecting rod out of the module conveyor with a hammer and mandrel.
4 Thread out the old module conveyor and properly dispose of it.
4 Guide new module conveyor (3) around sliding guides, front idler axles (1) and drum motor
(5) and thread it in above the return axles(2) and idler pulleys (4).
4 Combine the module conveyor without sagging and drive in the connecting rod using a
hammer and mandrel.
4 Install the contact guard and cover plates at the drive station in reverse order.
4 Install the end plates and return axle cover in reverse order.
3 4 5 4
4 Idler pulley
5 Drum motor
2
