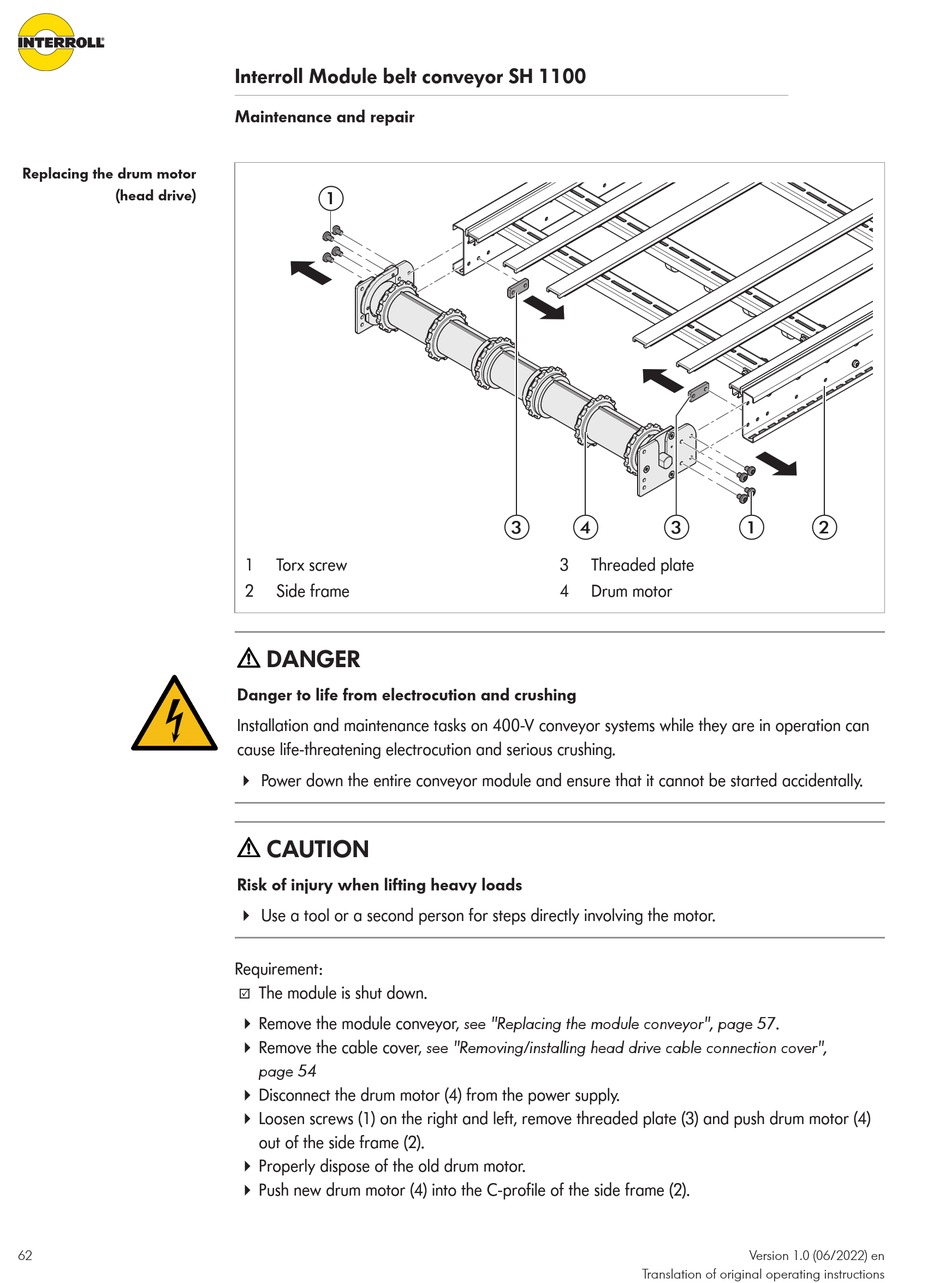

Replacing the drum motor
(head drive)
62
Interroll Module belt conveyor SH 1100
Maintenance and repair
1
1 Torx screw
2 Side frame
DANGER
Danger to life from electrocution and crushing
Installation and maintenance tasks on 400-V conveyor systems while they are in operation can
cause life-threatening electrocution and serious crushing.
4 Power down the entire conveyor module and ensure that it cannot be started accidentally.
CAUTION
Risk of injury when lifting heavy loads
4 Use a tool or a second person for steps directly involving the motor.
Requirement:
The module is shut down.
R
4 Remove the module conveyor, see "Replacing the module conveyor", page 57.
4 Remove the cable cover, see "Removing/installing head drive cable connection cover",
page 54
4 Disconnect the drum motor (4) from the power supply.
4 Loosen screws (1) on the right and left, remove threaded plate (3) and push drum motor (4)
out of the side frame (2).
4 Properly dispose of the old drum motor.
4 Push new drum motor (4) into the C-profile of the side frame (2).
3 4 3
3 Threaded plate
4 Drum motor
Translation of original operating instructions
1 2
Version 1.0 (06/2022) en
