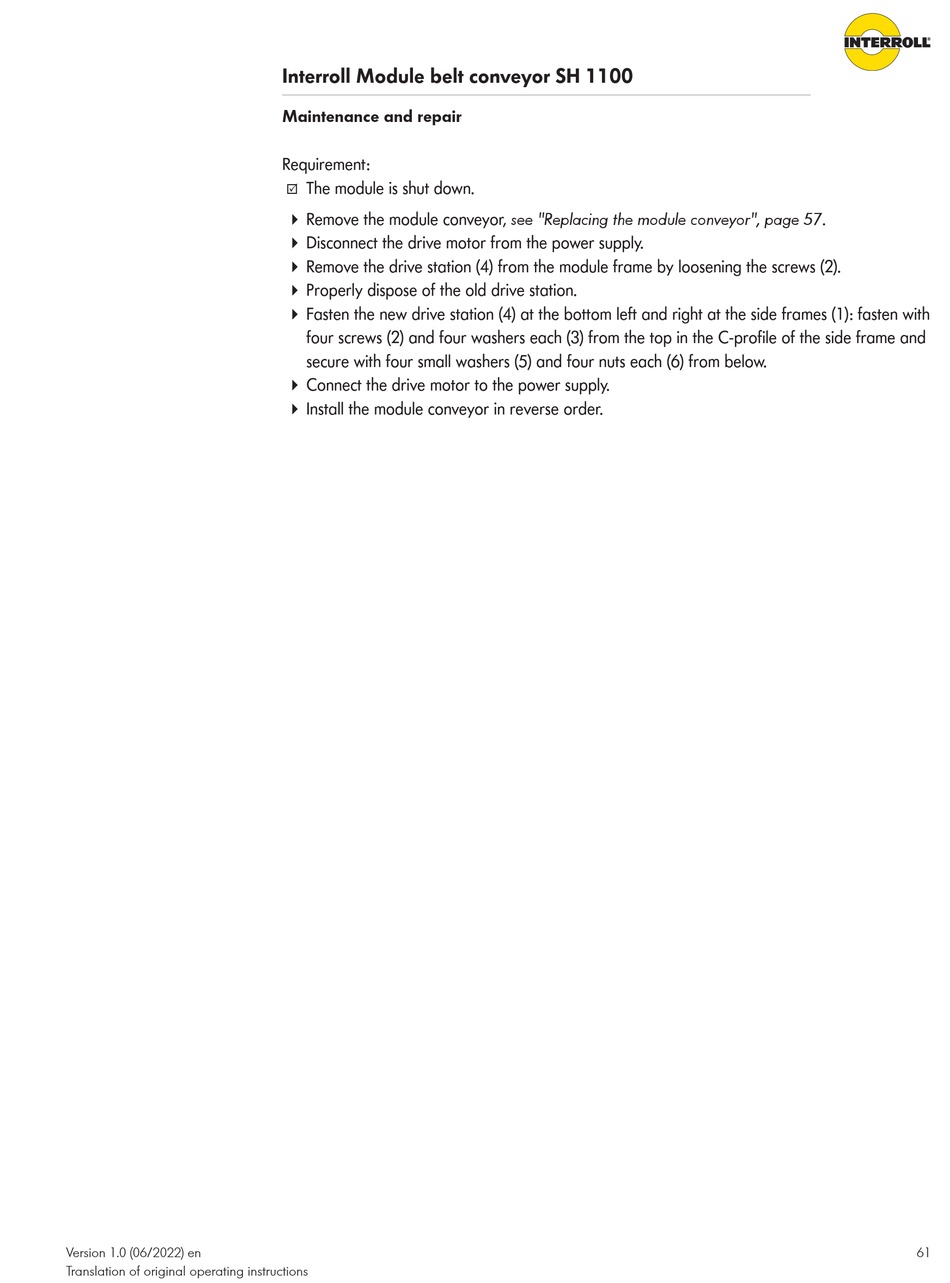

Interroll Module belt conveyor SH 1100
Maintenance and repair
Requirement:
The module is shut down.
R
4 Remove the module conveyor, see "Replacing the module conveyor", page 57.
4 Disconnect the drive motor from the power supply.
4 Remove the drive station (4) from the module frame by loosening the screws (2).
4 Properly dispose of the old drive station.
4 Fasten the new drive station (4) at the bottom left and right at the side frames (1): fasten with
four screws (2) and four washers each (3) from the top in the C-profile of the side frame and
secure with four small washers (5) and four nuts each (6) from below.
4 Connect the drive motor to the power supply.
4 Install the module conveyor in reverse order.
