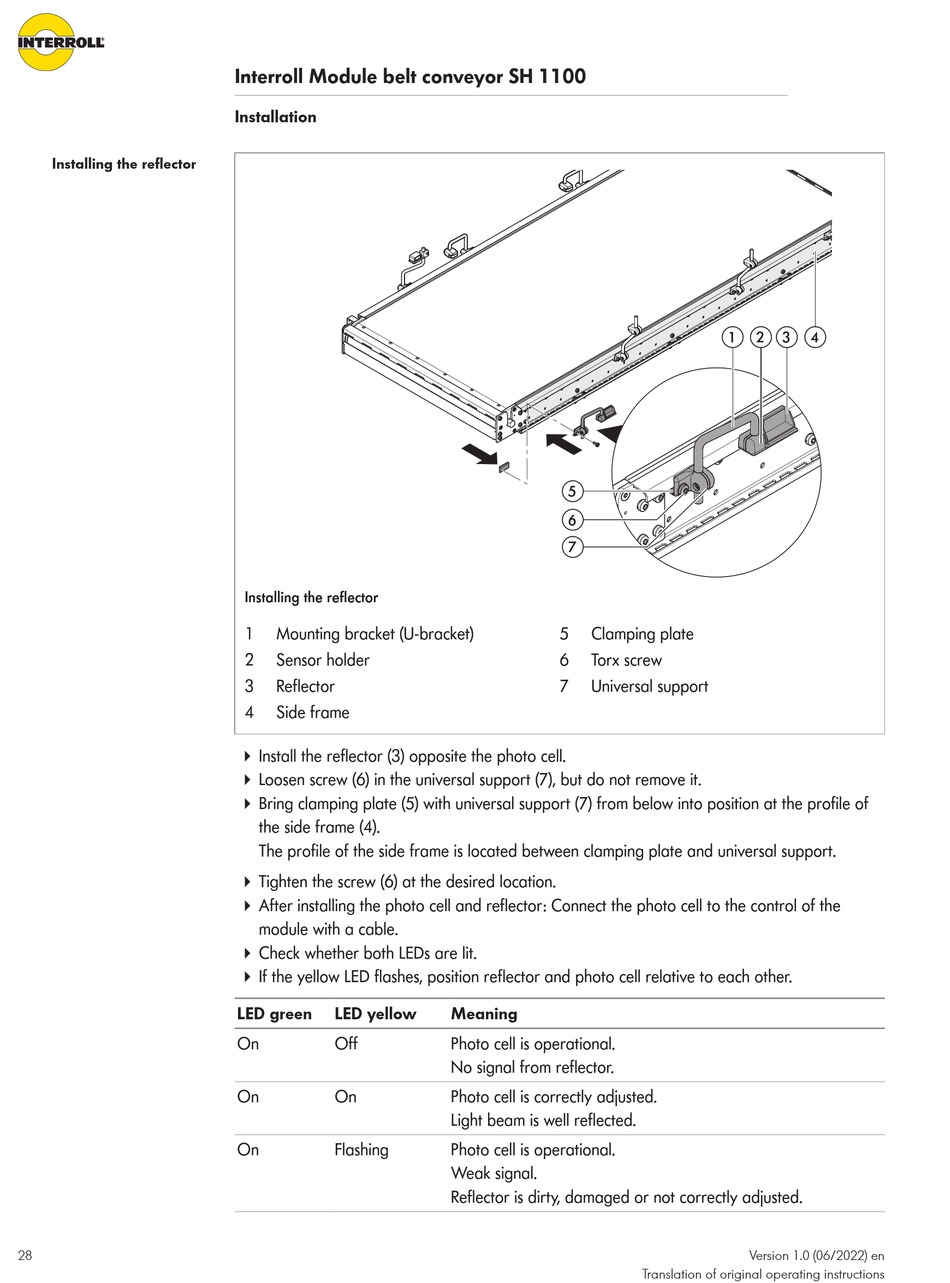

Installing the reflector

28
Interroll Module belt conveyor SH 1100
Installation
Installing the reflector
1 Mounting bracket (U-bracket)
2 Sensor holder
3 Reflector
4 Side frame
4 Install the reflector (3) opposite the photo cell.
4 Loosen screw (6) in the universal support (7), but do not remove it.
4 Bring clamping plate (5) with universal support (7) from below into position at the profile of
the side frame (4).
The profile of the side frame is located between clamping plate and universal support.
4 Tighten the screw (6) at the desired location.
4 After installing the photo cell and reflector: Connect the photo cell to the control of the
module with a cable.
4 Check whether both LEDs are lit.
4 If the yellow LED flashes, position reflector and photo cell relative to each other.
LED green LED yellow
On Off
On On
On Flashing
5
6
7
5 Clamping plate
6 Torx screw
7 Universal support
Meaning
Photo cell is operational.
No signal from reflector.
Photo cell is correctly adjusted.
Light beam is well reflected.
Photo cell is operational.
Weak signal.
Reflector is dirty, damaged or not correctly adjusted.
1 2 3 4
