Removing/installing drum
motor end plate
Version 1.0 (06/2022) en
Translation of original operating instructions
Interroll Module belt conveyor SH 1100
Maintenance and repair
1

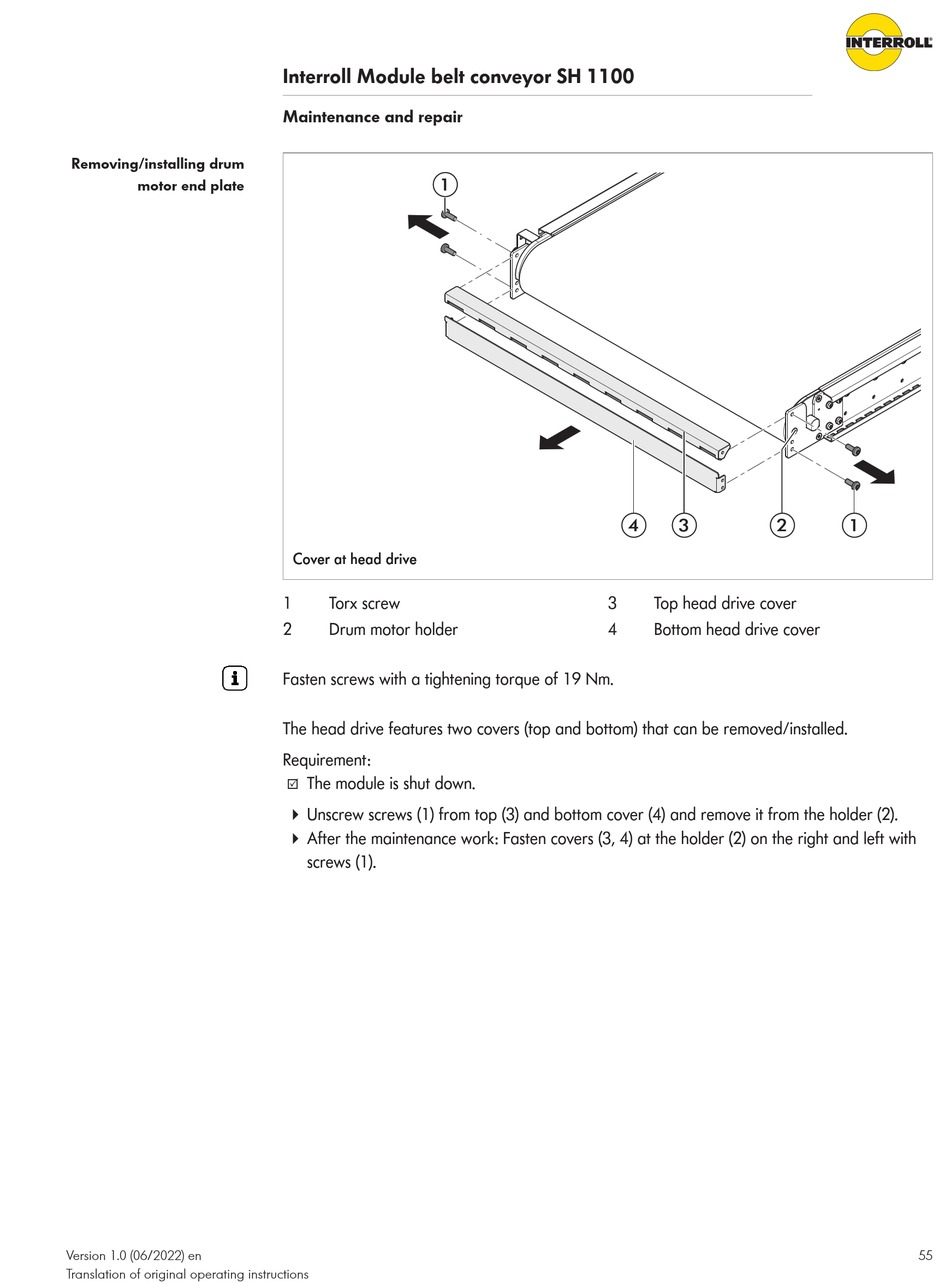

Cover at head drive
1
Torx screw
2
Drum motor holder
Fasten screws with a tightening torque of 19 Nm.
The head drive features two covers (top and bottom) that can be removed/installed.
Requirement:
The module is shut down.
R
4 Unscrew screws (1) from top (3) and bottom cover (4) and remove it from the holder (2).
4 After the maintenance work: Fasten covers (3, 4) at the holder (2) on the right and left with
screws (1).
4
3
2
3
Top head drive cover
4
Bottom head drive cover
1
55
