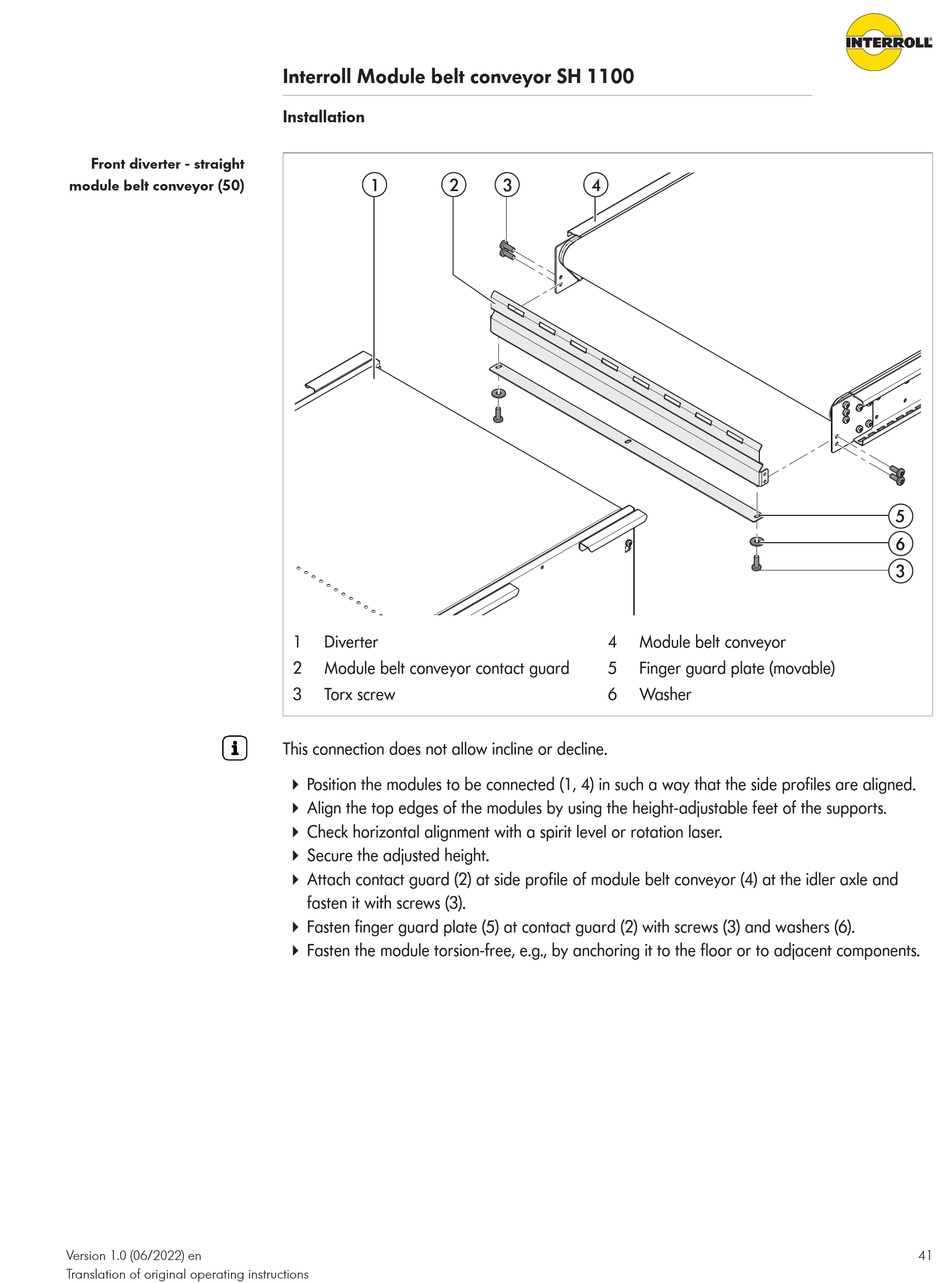

Front diverter - straight
module belt conveyor (50)
Version 1.0 (06/2022) en
Translation of original operating instructions
Interroll Module belt conveyor SH 1100
Installation
1 2
1 Diverter
2 Module belt conveyor contact guard
3 Torx screw
This connection does not allow incline or decline.
4 Position the modules to be connected (1, 4) in such a way that the side profiles are aligned.
4 Align the top edges of the modules by using the height-adjustable feet of the supports.
4 Check horizontal alignment with a spirit level or rotation laser.
4 Secure the adjusted height.
4 Attach contact guard (2) at side profile of module belt conveyor (4) at the idler axle and
fasten it with screws (3).
4 Fasten finger guard plate (5) at contact guard (2) with screws (3) and washers (6).
4 Fasten the module torsion-free, e.g., by anchoring it to the floor or to adjacent components.
3 4
4 Module belt conveyor
5 Finger guard plate (movable)
6 Washer
5
6
3
41
