Scope of supply

The module is delivered completely assembled.
The scope of delivery includes:
• Rack, including side frames, sliding guides and guide rails
• Drive (drum motor as center drive or head drive)
• Rollers/axles (return axles, front side idler axle, idler pulley)
• Module conveyor
• Covers and end plates
Optional:
• Photo cell and reflector, sensor holder and universal support
• Side guides, side guide brackets and universal support
• Connector sets incl. module connectors and contact guards
• Frequency inverter (e.g. from Getriebebau Nord)
• Electronics
• Supports
The side guide profiles and sensors are delivered installed (if ordered).

Nameplate

1
2
Conveyor Type
3
Level
4
Layout Position .No.
5

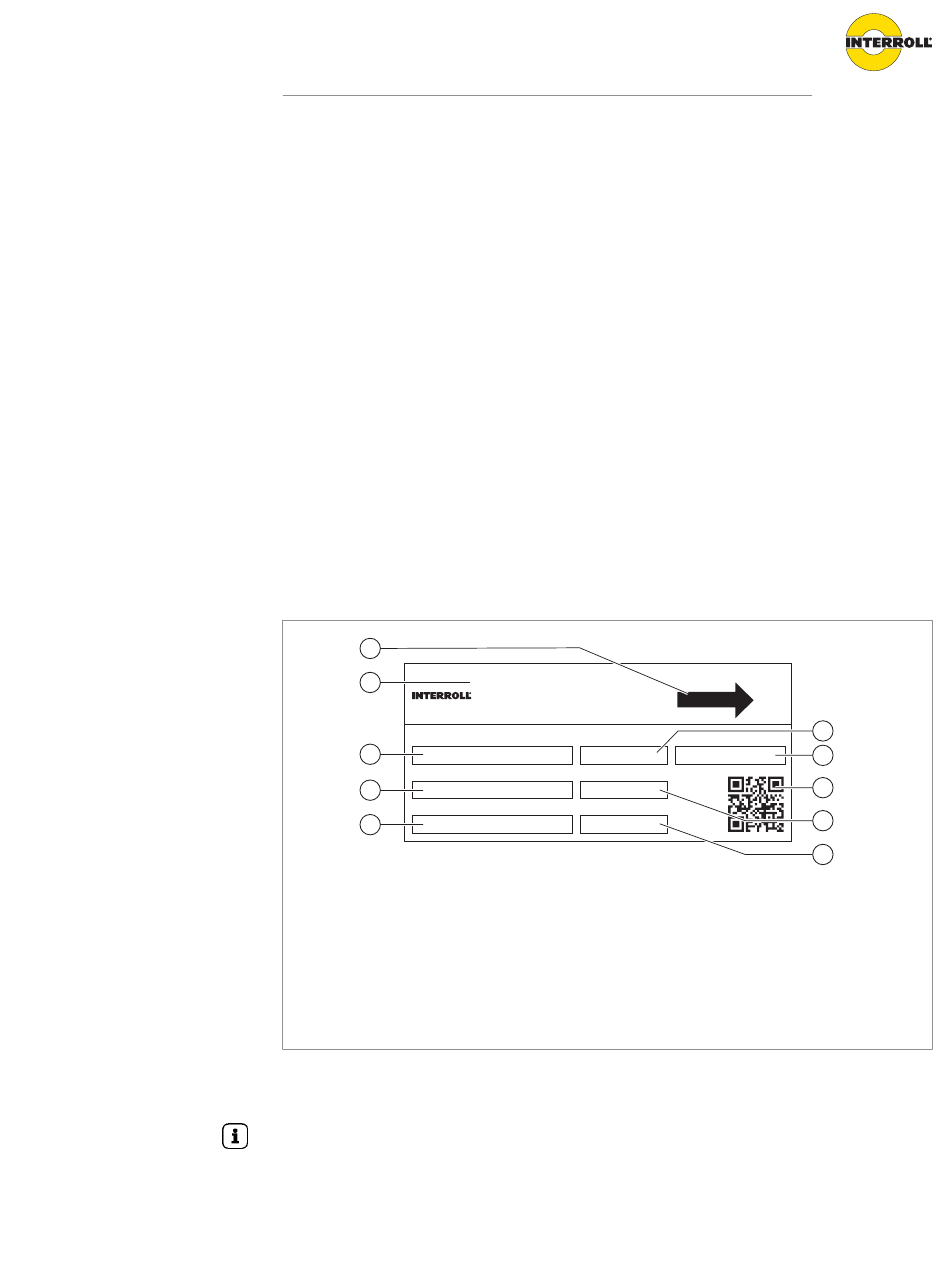

Nameplate
1 Arrow in transport direction
2 Company address
3 Type designation
4 Level
5 Layout item no.
The information on the nameplate is used to identify the conveyor. The type designation is
required to use the conveyor according to its intended use.
The nameplate is located on the right side frame.
Interroll Trommelmotoren GmbH
Center of Excellence Hygienic Solutions
Opelstraße 3 TypePlate
41836 Hueckelhoven/Baal (Germany)
www.interroll.com
Sales Order No. / Pos. Serial Number
Build Year
Weight [kg]
6 Machine number
7 Serial number
8 QR code
9 Year of manufacture
10 Weight in kg
6
7
8
9
10
