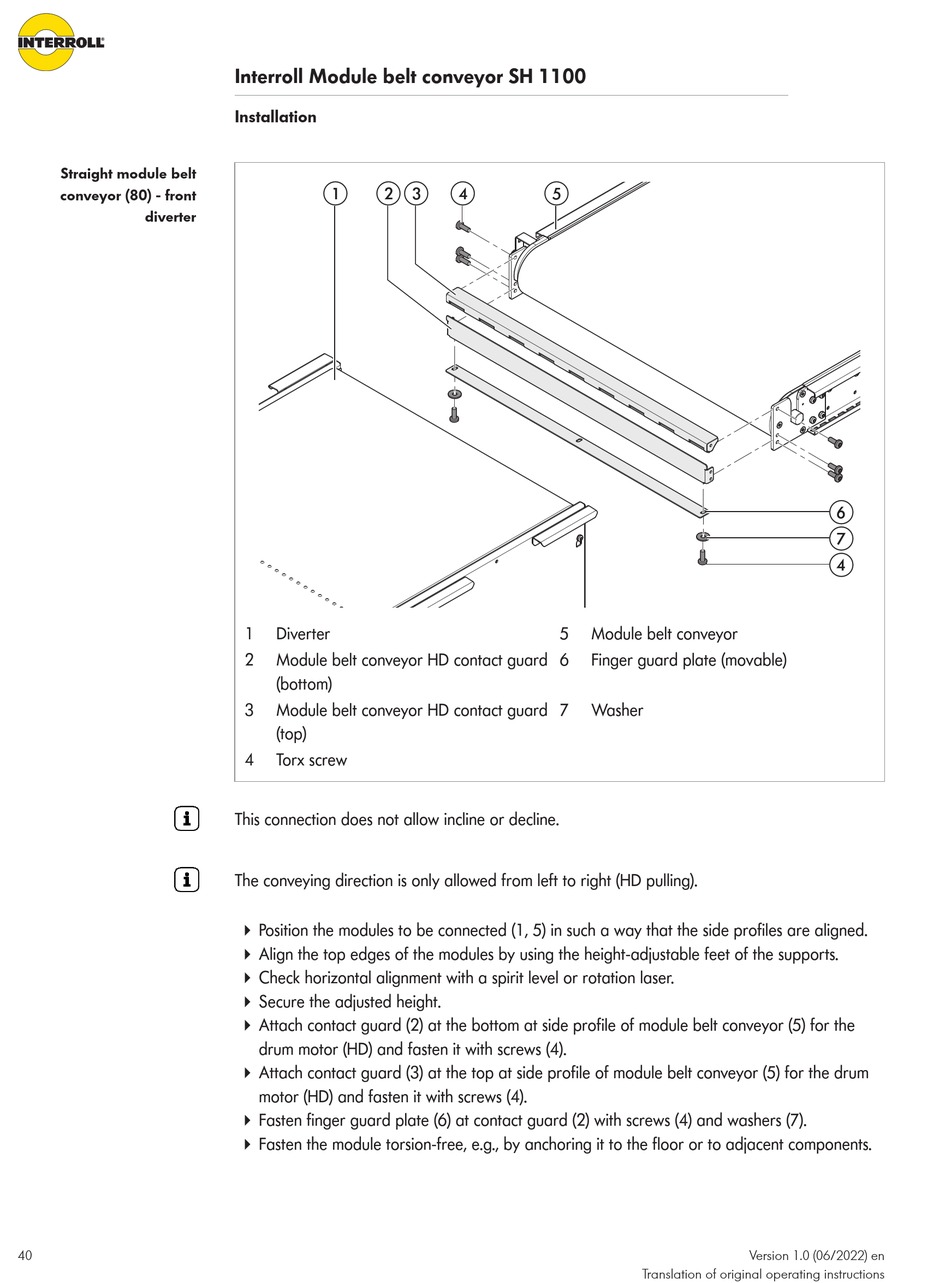

Straight module belt
conveyor (80) - front
diverter
40
Interroll Module belt conveyor SH 1100
Installation
1 2 3
1 Diverter
2 Module belt conveyor HD contact guard
(bottom)
3 Module belt conveyor HD contact guard
(top)
4 Torx screw
This connection does not allow incline or decline.
The conveying direction is only allowed from left to right (HD pulling).
4 Position the modules to be connected (1, 5) in such a way that the side profiles are aligned.
4 Align the top edges of the modules by using the height-adjustable feet of the supports.
4 Check horizontal alignment with a spirit level or rotation laser.
4 Secure the adjusted height.
4 Attach contact guard (2) at the bottom at side profile of module belt conveyor (5) for the
drum motor (HD) and fasten it with screws (4).
4 Attach contact guard (3) at the top at side profile of module belt conveyor (5) for the drum
motor (HD) and fasten it with screws (4).
4 Fasten finger guard plate (6) at contact guard (2) with screws (4) and washers (7).
4 Fasten the module torsion-free, e.g., by anchoring it to the floor or to adjacent components.
4 5
5 Module belt conveyor
6 Finger guard plate (movable)
7 Washer
Version 1.0 (06/2022) en
Translation of original operating instructions
6
7
4
