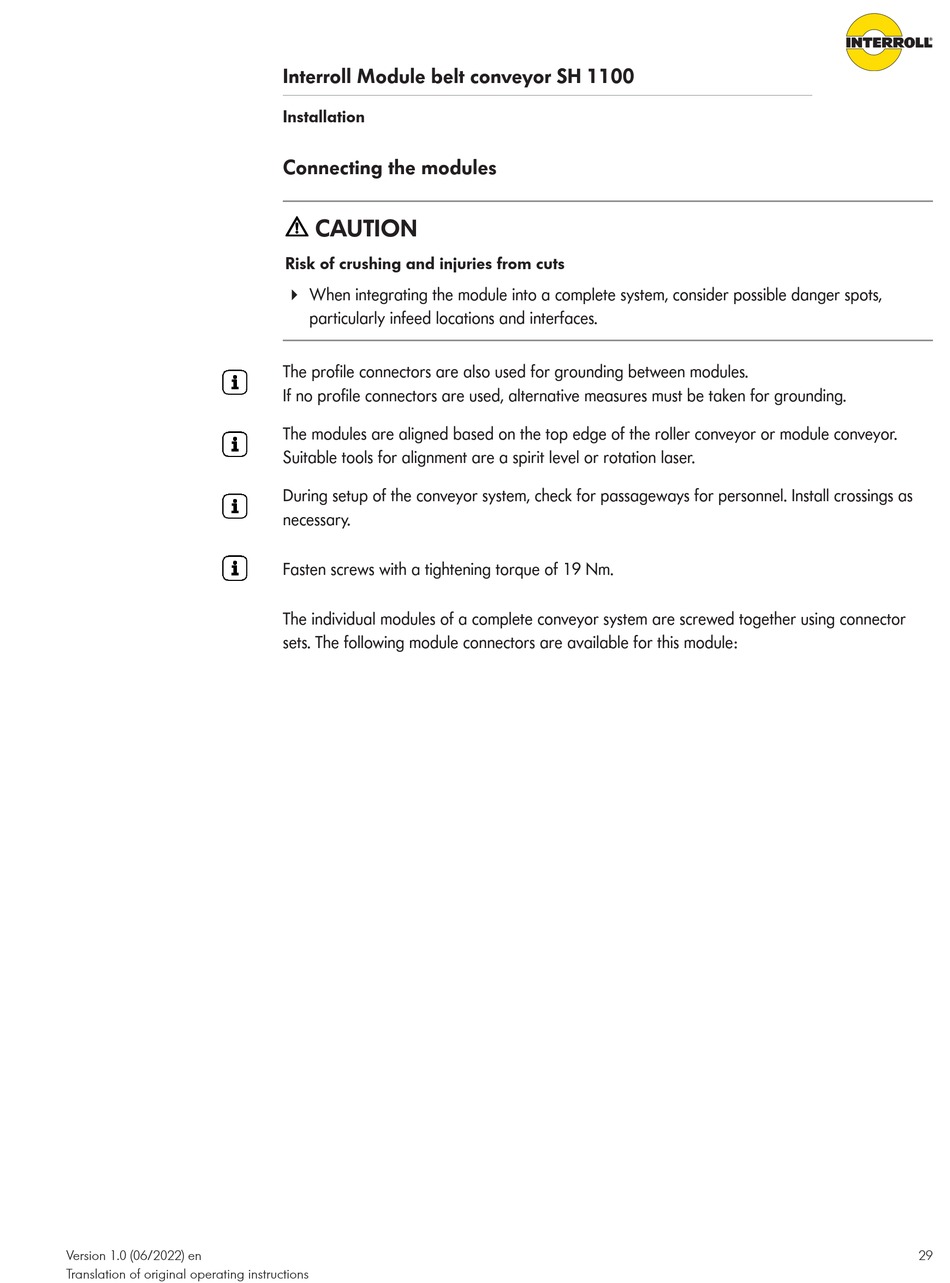

Interroll Module belt conveyor SH 1100
Installation

Connecting the modules

CAUTION
Risk of crushing and injuries from cuts
4 When integrating the module into a complete system, consider possible danger spots,
particularly infeed locations and interfaces.
The profile connectors are also used for grounding between modules.
If no profile connectors are used, alternative measures must be taken for grounding.
The modules are aligned based on the top edge of the roller conveyor or module conveyor.
Suitable tools for alignment are a spirit level or rotation laser.
During setup of the conveyor system, check for passageways for personnel. Install crossings as
necessary.
Fasten screws with a tightening torque of 19 Nm.
The individual modules of a complete conveyor system are screwed together using connector
sets. The following module connectors are available for this module:
