Replacing the module
conveyor (head drive)
Version 1.0 (06/2022) en
Translation of original operating instructions
Interroll Module belt conveyor SH 1100
Maintenance and repair

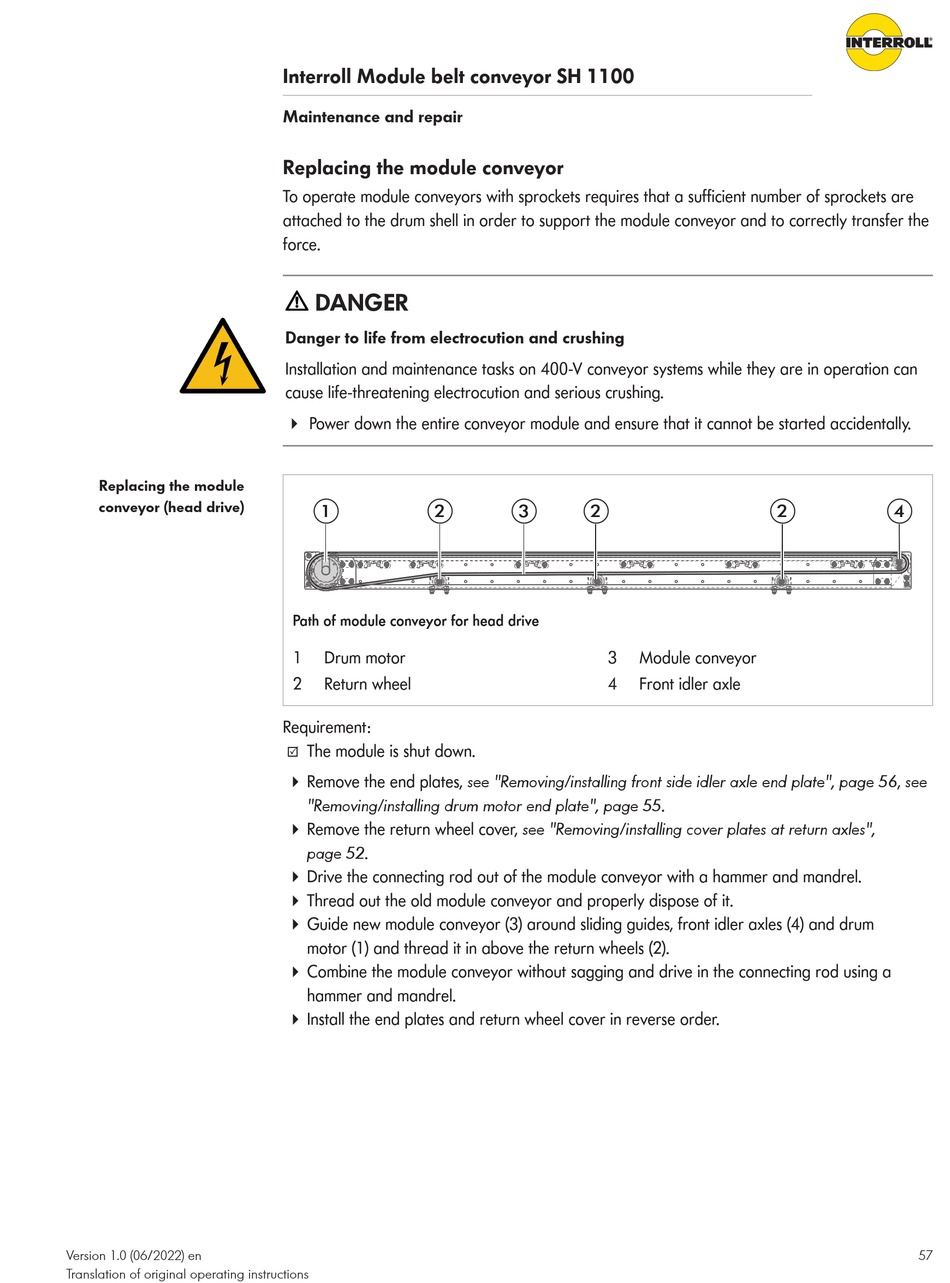

Replacing the module conveyor
To operate module conveyors with sprockets requires that a sufficient number of sprockets are
attached to the drum shell in order to support the module conveyor and to correctly transfer the
force.
DANGER
Danger to life from electrocution and crushing
Installation and maintenance tasks on 400-V conveyor systems while they are in operation can
cause life-threatening electrocution and serious crushing.
4 Power down the entire conveyor module and ensure that it cannot be started accidentally.
1
2
Path of module conveyor for head drive
1
Drum motor
2
Return wheel
Requirement:
The module is shut down.
R
4 Remove the end plates, see "Removing/installing front side idler axle end plate", page 56, see
"Removing/installing drum motor end plate", page 55.
4 Remove the return wheel cover, see "Removing/installing cover plates at return axles",
page 52.
4 Drive the connecting rod out of the module conveyor with a hammer and mandrel.
4 Thread out the old module conveyor and properly dispose of it.
4 Guide new module conveyor (3) around sliding guides, front idler axles (4) and drum
motor (1) and thread it in above the return wheels (2).
4 Combine the module conveyor without sagging and drive in the connecting rod using a
hammer and mandrel.
4 Install the end plates and return wheel cover in reverse order.
3
2
3
Module conveyor
4
Front idler axle
2
4
57
