Straight module belt
conveyor (50) - straight
roller conveyor
Version 1.0 (06/2022) en
Translation of original operating instructions

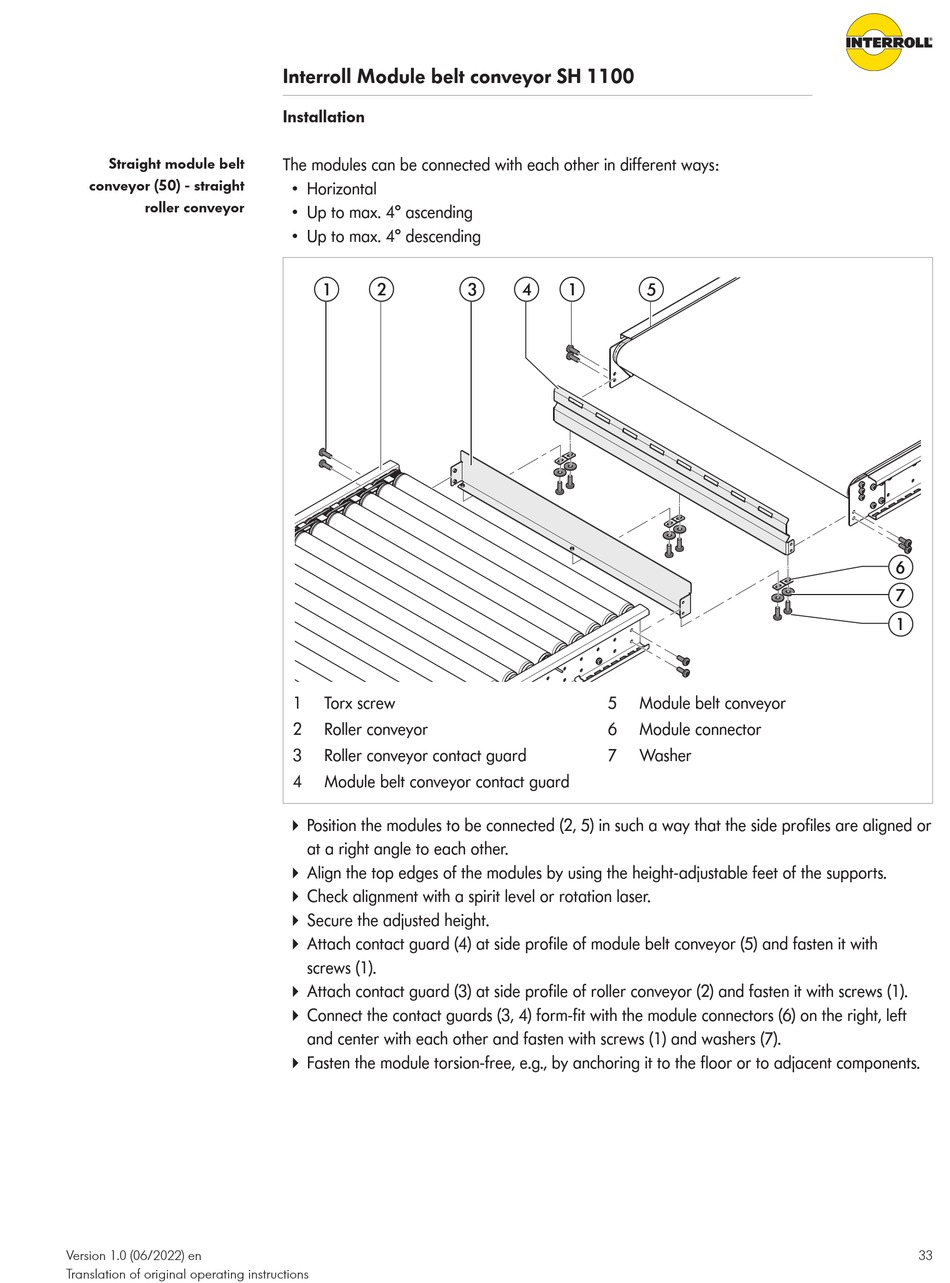

Interroll Module belt conveyor SH 1100
Installation
The modules can be connected with each other in different ways:
• Horizontal
• Up to max. 4° ascending
• Up to max. 4° descending
1
2
1
Torx screw
2
Roller conveyor
3
Roller conveyor contact guard
4
Module belt conveyor contact guard
4 Position the modules to be connected (2, 5) in such a way that the side profiles are aligned or
at a right angle to each other.
4 Align the top edges of the modules by using the height-adjustable feet of the supports.
4 Check alignment with a spirit level or rotation laser.
4 Secure the adjusted height.
4 Attach contact guard (4) at side profile of module belt conveyor (5) and fasten it with
screws (1).
4 Attach contact guard (3) at side profile of roller conveyor (2) and fasten it with screws (1).
4 Connect the contact guards (3, 4) form-fit with the module connectors (6) on the right, left
and center with each other and fasten with screws (1) and washers (7).
4 Fasten the module torsion-free, e.g., by anchoring it to the floor or to adjacent components.
3
4
1
5
5
Module belt conveyor
6
Module connector
7
Washer
6
7
1
33
