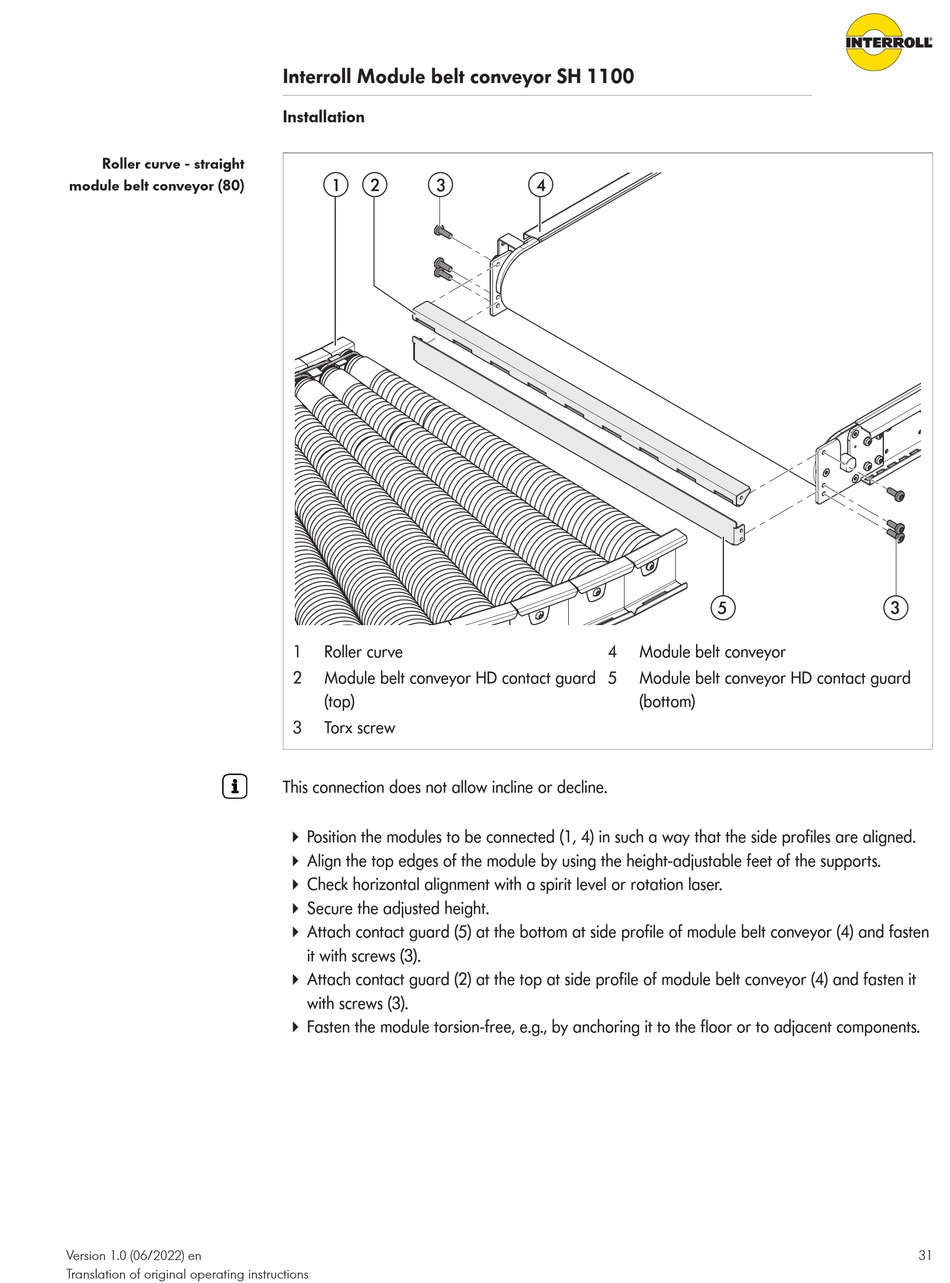

Roller curve - straight
module belt conveyor (80)
Version 1.0 (06/2022) en
Translation of original operating instructions
Interroll Module belt conveyor SH 1100
Installation
1
2
3
1
Roller curve
2
Module belt conveyor HD contact guard
(top)
3
Torx screw
This connection does not allow incline or decline.
4 Position the modules to be connected (1, 4) in such a way that the side profiles are aligned.
4 Align the top edges of the module by using the height-adjustable feet of the supports.
4 Check horizontal alignment with a spirit level or rotation laser.
4 Secure the adjusted height.
4 Attach contact guard (5) at the bottom at side profile of module belt conveyor (4) and fasten
it with screws (3).
4 Attach contact guard (2) at the top at side profile of module belt conveyor (4) and fasten it
with screws (3).
4 Fasten the module torsion-free, e.g., by anchoring it to the floor or to adjacent components.
4
4
Module belt conveyor
5
Module belt conveyor HD contact guard
(bottom)
5
3
31
