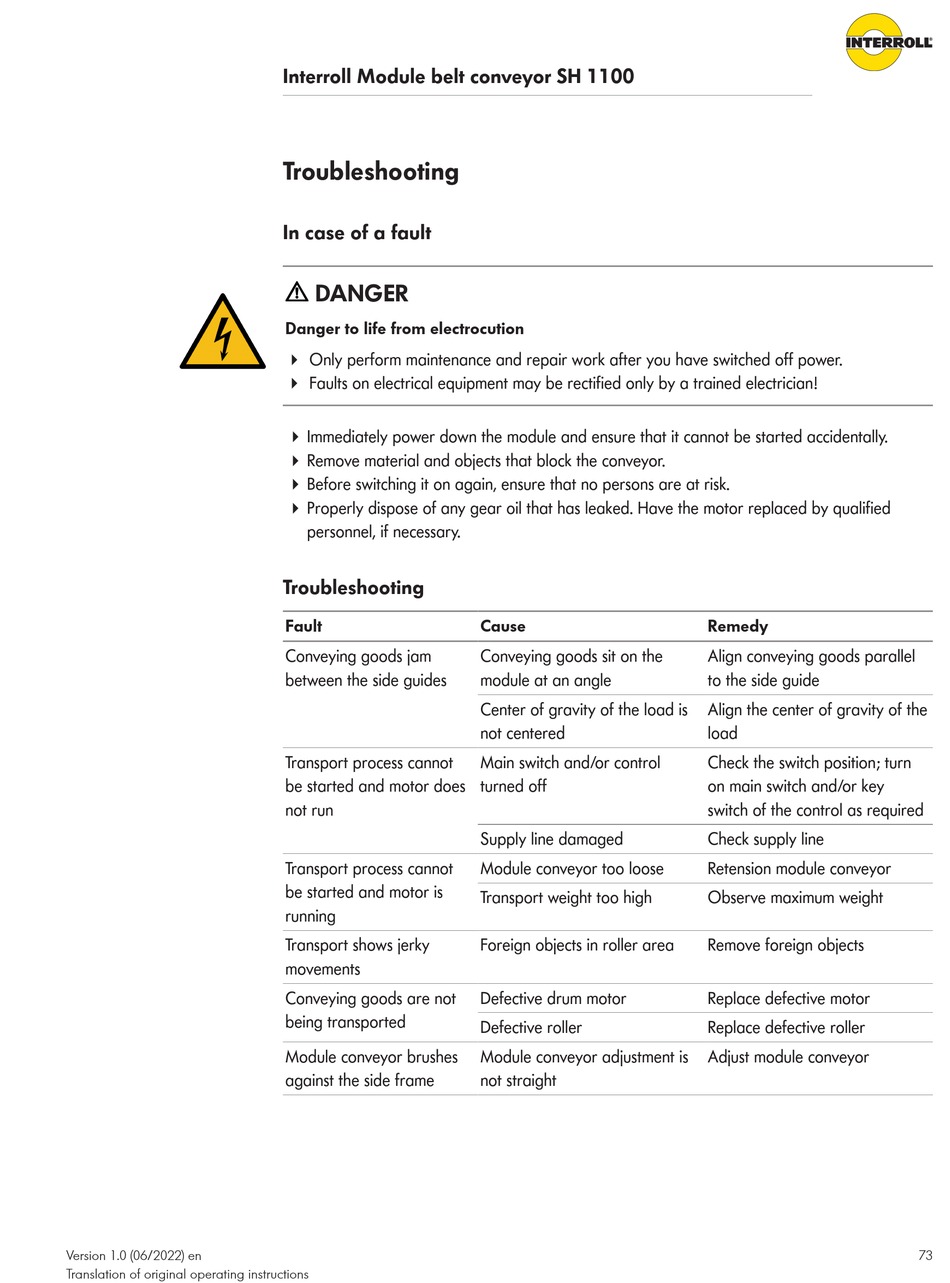

Interroll Module belt conveyor SH 1100
Troubleshooting
In case of a fault
DANGER
Danger to life from electrocution
4 Only perform maintenance and repair work after you have switched off power.
4 Faults on electrical equipment may be rectified only by a trained electrician!
4 Immediately power down the module and ensure that it cannot be started accidentally.
4 Remove material and objects that block the conveyor.
4 Before switching it on again, ensure that no persons are at risk.
4 Properly dispose of any gear oil that has leaked. Have the motor replaced by qualified
personnel, if necessary.
Troubleshooting
Fault
Conveying goods jam
between the side guides
Transport process cannot
be started and motor does
not run
Transport process cannot
be started and motor is
running
Transport shows jerky
movements
Conveying goods are not
being transported
Module conveyor brushes
against the side frame
Cause
Conveying goods sit on the
module at an angle
Center of gravity of the load is
not centered
Main switch and/or control
turned off
Supply line damaged
Module conveyor too loose
Transport weight too high
Foreign objects in roller area
Defective drum motor
Defective roller
Module conveyor adjustment is
not straight
Remedy
Align conveying goods parallel
to the side guide
Align the center of gravity of the
load
Check the switch position; turn
on main switch and/or key
switch of the control as required
Check supply line
Retension module conveyor
Observe maximum weight
Remove foreign objects
Replace defective motor
Replace defective roller
Adjust module conveyor
73
