Straight module belt
conveyor (80) - straight
module belt conveyor (50)
Version 1.0 (06/2022) en
Translation of original operating instructions

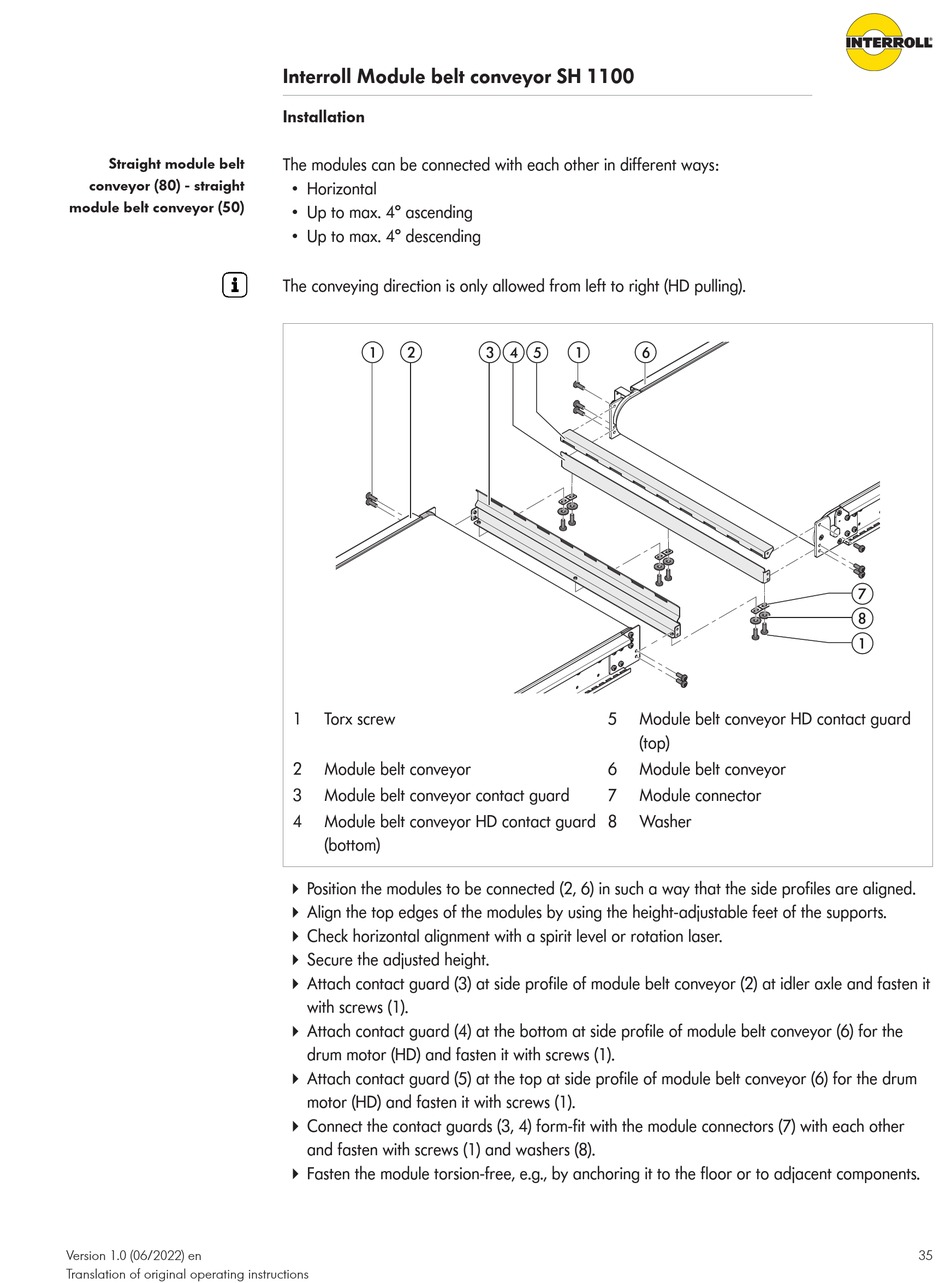

Interroll Module belt conveyor SH 1100
Installation
The modules can be connected with each other in different ways:
• Horizontal
• Up to max. 4° ascending
• Up to max. 4° descending
The conveying direction is only allowed from left to right (HD pulling).
1
2
1
Torx screw
2
Module belt conveyor
3
Module belt conveyor contact guard
4
Module belt conveyor HD contact guard
(bottom)
4 Position the modules to be connected (2, 6) in such a way that the side profiles are aligned.
4 Align the top edges of the modules by using the height-adjustable feet of the supports.
4 Check horizontal alignment with a spirit level or rotation laser.
4 Secure the adjusted height.
4 Attach contact guard (3) at side profile of module belt conveyor (2) at idler axle and fasten it
with screws (1).
4 Attach contact guard (4) at the bottom at side profile of module belt conveyor (6) for the
drum motor (HD) and fasten it with screws (1).
4 Attach contact guard (5) at the top at side profile of module belt conveyor (6) for the drum
motor (HD) and fasten it with screws (1).
4 Connect the contact guards (3, 4) form-fit with the module connectors (7) with each other
and fasten with screws (1) and washers (8).
4 Fasten the module torsion-free, e.g., by anchoring it to the floor or to adjacent components.
3
4
5
1
6
5
Module belt conveyor HD contact guard
(top)
6
Module belt conveyor
7
Module connector
8
Washer
7
8
1
