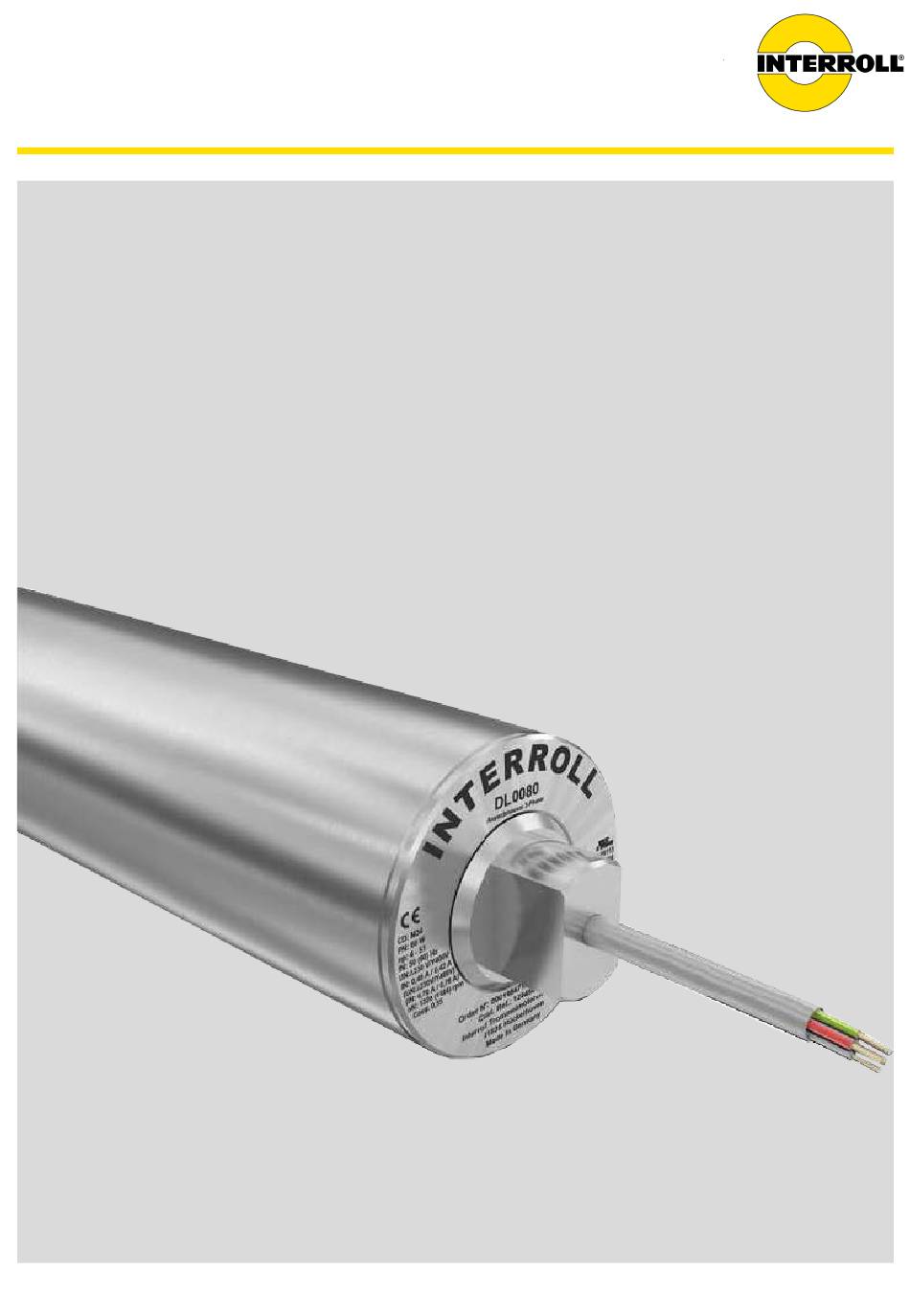

  • Page 1 INSPIRED BY EFFICIENCY User Manual Interroll Drum motor DL series...
  • Page 2 All signs contained in this document (registered trademarks, such as logos and business designations) are the property of Interroll Trommelmotoren GmbH or third parties and may not be used, copied or distributed without prior written consent.

  • Page 3: Table Of Contents

    3.4 Product identification ................................12 Thermal protection ................................. 13 Product information of DL series asynchronous 1-phase Type plate of DL series asynchronous 1-phase ......................14 Electrical data for DL series asynchronous 1-phase ..................... 16 4.2.1 DL 0080 asynchronous 1-phase ........................16 4.2.2...
  • Page 4 Table of Contents Assembly and installation Warning notices concerning the installation ........................30 Installing the drum motor ..............................30 8.2.1 Positioning the drum motor..........................30 8.2.2 Installing the motor with mounting brackets ....................31 Belt assembly ................................... 33 8.3.1 Belt adjustment..............................33 8.3.2 Tensioning the belt ............................
  • Page 5 Table of Contents 10.5.2 Hygienic cleaning .............................. 47 Troubleshooting Decommissioning and disposal 12.1 Shutdown ....................................55 12.2 Disposal ..................................... 55 Appendix 13.1 List of abbreviations ................................56 13.2 Translation of the original Declaration of Conformity (CE) ..................59 13.3 Translation of the original Declaration of Conformity (UKCA) .................. 60 Version 1.2 (08/2022) en Translation of original operating instructions 5 of 64...

  • Page 6: Information About The Manual

    • NOTICE! The manufacturer does not accept any liability for faults or defects due to non-observance of this instruction manual. • If you still have questions after reading the instruction manual, please contact Interroll customer service. Contact persons close to you can be found on the Internet under www.interroll.com.

  • Page 7: Safety

    The drum motor may not be used as a drive for cranes or lifting devices or for the corresponding hoist ropes, cables or chains. Use of the drum motor for anything other than the intended purpose is subject to approval by Interroll. Unless otherwise stated in writing and/or specified in a quote, Interroll and its dealers shall assume no liability for product damage or failure which result from failure to observe these specification and restrictions (see the chapter „Electrical data”...

  • Page 8: Dangers

    • Wipe up spilled oil as quickly as possible to avoid slippery surfaces. Ensure that oil does not reach the environment. Properly dispose of dirty rags or cleaning materials to avoid self-ignition and fires. • Extinguish oil fires with foam, spraying water or water mist, dry chemical powder or carbon dioxide. Do not extinguish with a water jet. Wear suitable protective clothing, incl. breathing mask. • Observe the corresponding certificates at www.interroll.com. Version 1.2 (08/2022) en 8 of 64 Translation of original operating instructions...

  • Page 9: Interfaces To Other Devices

    Safety Rotating parts • Do not reach into areas between drum motor and conveyor belts or roller chains. • Tie long hair together. • Never wear loose clothing. • Never wear jewelery, such as necklaces or bracelets. Hot motor parts •...

  • Page 10: General Technical Information

    The drum motor can be used with or without a drum coating to increase friction between drum motor and conveyor belt, or with a profile coating to drive form-fit driven belts. DL series drum motors are driven by an asynchronous three-phase induction motor. That motor is available at different power levels and for most international supply voltages.
  • Page 11 General technical information Dimensions of DL series drum motor Type DL 0080 crowned 81,5 FW-10 FW+6 FW+46 SL 260 to 602 mm DL 0080 crowned, mild steel 82,7 FW-10 FW+6 FW+46 shell, SL 603 to 952 mm crowned, stainless steel shell,...

  • Page 12: Technical Data

    Ambient temperature range for reduced drum motors +5 °C to +25 °C Ramp times DL series: ≥ 1 s Installation altitude above sea level max. 1000 m For ambient temperatures below +1 °C, Interroll recommends anti-condensation heating and special cables or plastic terminal boxes. Product identification The serial number is sufficient to identify a drum motor. As an alternative, the information listed below is required. The values for a specific drum motor can be entered in the last column. Information...

  • Page 13: Thermal Protection

    General technical information Thermal protection Under normal operating conditions, the thermal circuit breaker integrated in the stator winding is closed. When the motor limit temperature is reached (overheating), the switch opens at a preset temperature to prevent damage to the motor.

  • Page 14: Product Information Of Dl Series Asynchronous 1-Phase Type Plate Of Dl Series Asynchronous 1-Phase

    Round type plate (1) on the end cover of the drum motor (glued or laser-engraved) Rectangular type plate (2) on the terminal box (if available, glued or laser-engraved) Rectangular type plate (3) included with the motor Type plate (1) for DL series asynchronous 1-phase Version 1.2 (08/2022) en 14 of 64...
  • Page 15 Product information of DL series asynchronous 1-phase Type plate (2) for DL series asynchronous 1-phase Type plate (3) for DL series asynchronous 1-phase Version 1.2 (08/2022) en Translation of original operating instructions 15 of 64...

  • Page 16: Electrical Data For Dl Series Asynchronous 1-Phase

    Product information of DL series asynchronous 1-phase 1 Connection diagram number 18 UL mark 2 Rated power 19 International Electrotechnical Commission: Standard for drum motors 3 Number of poles + operating mode 20 Drum tube diameter 4 Rated frequency 21 Drum width...

  • Page 17: Dl 0113 Asynchronous 1-Phase

    Product information of DL series asynchronous 1-phase 4.2.2 DL 0113 asynchronous 1-phase η SH ~ φ kgcm V DC µF 1300 0,75 0,98 0,35 2,58 1,29 1,29 0,44 63,5 1560 0,86 0,98 0,31 2,58 1,29 1,29 0,37 63,5 1300 0,99 0,91...

  • Page 18: Connections In The Terminal Box

    Product information of DL series asynchronous 1-phase 1-phase, 7-core cable * A starting capacitor and a matching switching relay can be connected as an option to improve the starting torque of the single-phase motor. 4.3.2 Connections in the terminal box...

  • Page 19: Product Information Of Dl Series Asynchronous 3-Phase Type Plate Of Dl Series Asynchronous 3-Phase

    Round nameplate (1) on the end housing of the drum motor (glued or laser-engraved) Rectangular nameplate (2) on the terminal box (if available, glued or laser-engraved) Rectangular nameplate (3) included with the motor Type plate (1) for DL series asynchronous 3-phase Version 1.2 (08/2022) en Translation of original operating instructions...
  • Page 20 Product information of DL series asynchronous 3-phase Type plate (2) for DL series asynchronous 3-phase Type plate (3) for DL series asynchronous 3-phase Version 1.2 (08/2022) en 20 of 64 Translation of original operating instructions...

  • Page 21: Electrical Data For Dl Series Asynchronous 3-Phase

    Product information of DL series asynchronous 3-phase 1 Connection diagram number 17 UKCA mark 2 Rated power 18 UL mark 3 Number of poles + operating mode 19 International Electrotechnical Commission: Standard for drum motors 4 Rated frequency 20 Drum tube diameter...

  • Page 22: Dl 0113 Asynchronous 3-Phase

    Product information of DL series asynchronous 3-phase η φ delta star kg x Ω V DC V DC µF – 1584 0,42 0,65 0,28 0,89 2,14 0,36 156,5 – – – 2800 0,46 0,73 0,53 0,87 3,57 0,26 74,2 – –...

  • Page 23: Connection Diagrams Of Dm Series Asynchronous 3-Phase

    Product information of DL series asynchronous 3-phase η φ delta star kg x Ω V DC V DC µF 1355 0,62 0,76 0,55 4,42 3,79 1,27 45,5 – 32,2 1626 1,08 0,76 0,55 4,59 3,44 3,27 3,44 1,06 45,5 18,7 –...
  • Page 24 Product information of DL series asynchronous 3-phase 3-phase, 7-core cable, winding for 1 voltage, delta or star connection (internally connected) Delta connection: Low voltage Star connection: High voltage 3-phase, 9-core cable, winding for 2 voltages, delta or star connection Delta connection: Low voltage Star connection: High voltage Version 1.2 (08/2022) en...

  • Page 25: Connections In The Terminal Box

    Product information of DL series asynchronous 3-phase 5.3.2 Connections in the terminal box 3-phase, 9-core cable, winding for 2 voltages, delta or star connection Delta connection: Low voltage Star connection: High voltage Maximum torque for terminal box cover screws: 1.5 Nm Version 1.2 (08/2022) en...

  • Page 26: Options And Accessories

    Options and accessories Options and accessories Asynchronous drum motors with frequency inverters 6.1.1 Torque depends on input frequency Operating frequency [Hz] 30-50 Available motor torque in % Rated motor 50 Hz frequency 60 Hz Value 1: Based on a rated motor frequency of 50 Hz (50-Hz motors should be operated only up to 70 Hz in the speed range under field control.) Value 2: Based on a rated motor frequency of 60 Hz (60-Hz motors should be operated only up to 80 Hz in the speed range under field control.) The torque dependency depicted in the figure above is expressed as P = T x ω. With a reduced operating frequency of below 20/24 Hz, the motor torque is reduced by changing heat dissipation conditions. The power loss dissipation is a result of the oil quantity, in contrast to standard ventilated motors. For frequencies starting at 80 ... 85 / 95 100 Hz, the curve for the output torque does not have a hyperbolic shape, but is instead replaced with a quadratic function...
  • Page 27 However, since all Interroll drum motors run in an oil bath, the risk of overheating or damage to the motor due to high voltage increase rates is extremely low.

  • Page 28: Transport And Storage

    Check each drum motor for damage after transport. In the event of damage, take photos of the damaged parts. In case of a transport damage, immediately notify the carrier and Interroll to avoid losing any claims for compensation. Version 1.2 (08/2022) en...

  • Page 29: Storage

    Transport and storage Storage CAUTION Risk of injury due to improper storage! Do not stack pallets. ¾ Do not stack more than four cardboard boxes on top of each other. ¾ Ensure that proper fastening is in place. ¾ Store the drum motor horizontally in a clean, dry and enclosed location at +15 to +30 °C; protect it from moisture and humidity.

  • Page 30: Assembly And Installation

    Do not twist the motor cable. ¾ Do not overtension the belt. ¾ Installing the drum motor 8.2.1 Positioning the drum motor Ensure that the data on the type plate are correct, and match the ordered and confirmed product. A special design must be used to install the drum motor in non-horizontal applications. The exact version must be specified when ordering. In case of doubt, contact Interroll. The drum motor must be mounted horizontally with a clearance of +/– 5° (drum motor DL 0113: +/– 2°), unless specified differently in the order confirmation. Version 1.2 (08/2022) en 30 of 64 Translation of original operating instructions...

  • Page 31: Installing The Motor With Mounting Brackets

    Assembly and installation Position of the drum motor All drum motors are identified by the serial number on one end of the shaft. The DL series can be installed in any orientation. Motor type/mounting position 0° -45° -90° 45° 90° 180° DL 0080 / DL 0113 √ √ √ √ √ √ 8.2.2 Installing the motor with mounting brackets The mounting brackets must be sufficiently robust to withstand the motor torque. Install the brackets at the conveyor or machine frame. Ensure that the drum motor is installed parallel to the idler pulley and at a right angle to the conveyor frame.
  • Page 32 Assembly and installation Axial clearance The entire axial clearance of the drum motor should be at least 1 mm (0.5 mm per side) and no more than 2 mm (1 mm per side). Torsional clearance for standard applications (left) and for applications with frequent reversing duty or start/stop operation (right) If necessary, install a support plate above the mounting bracket to secure the drum motor shaft.

  • Page 33: Belt Assembly

    Ensure that the drum motor is operated with a conveyor belt that covers at least 70 % of the drum tube. ¾ For drum motors with less than 70 % belt contact and drum motors with form-fit driven belts or without belt, the required output should be multiplied by 1.2. This must be specified at the time of ordering. If in doubt, please contact Interroll. 8.3.1 Belt adjustment Convex tubes center and guide the belt during regular operation. Nevertheless, the belt should be carefully aligned, frequently checked during startup and readjusted depending on the load.

  • Page 34: Tensioning The Belt

    Tensioning the belt The required belt tension depends on the respective application. The pertinent information is located in the catalog of the belt manufacturer, or contact Interroll. NOTICE Overtensioned belts can lead to a shortened service life, wear of bearings or oil leakage! Do not tension the belt beyond the value recommended by the manufacturer or specified in the product ¾...

  • Page 35: Belt Tension

    Assembly and installation Belt tension The following must be observed when calculating the belt tension: • Length and width of conveyor belt • Belt type • The belt tension required for transporting the load • The belt elongation required for the assembly (depending on the load, the belt elongation for the assembly should measure between 0.2 and 0.5 % of the belt length) •...

  • Page 36: Measuring The Belt Elongation

    Assembly and installation 1 Conveyor belt 3 Belt elongation 2 Drum motor With increasing the distance between idler and drum motor the belt elongates. 8.4.2 Measuring the belt elongation The belt elongation can very easily be determined using a measuring tape. Mark the untensioned belt at two points in the center where the outer diameter of the drum motor and the idler pulley are the largest due to the camber.

  • Page 37: Calculating The Belt Elongation

    Assembly and installation Measuring the belt elongation 8.4.3 Calculating the belt elongation The belt elongation can be calculated in % with the determined measure of the belt elongation. Formula for calculating the belt elongation in % Calculating the belt elongation requires the following values: •...

  • Page 38: Drum Coating

    To avoid a thermal overload, the required output should be multiplied with 1,2. Please contact Interroll concerning the type and maximum thickness of a drum coating if you want to apply one.

  • Page 39: Electrical Connection Of The Drum Motor

    The protective device must be adjusted to the rated current of the corresponding motor (see type plate). Interroll synchronous motors may be operated only with frequency inverters that feature a control suitable for permanent magnet synchronous motors (PMSM).

  • Page 40: Integrated Thermal Protection

    For operational safety, the motor must be safeguarded against overload with an external motor protection, as well as an integrated thermal protection; otherwise, there is no warranty if the motor fails. 8.8.6 Frequency inverter Asynchronous drum motors can be operated with frequency inverters. Frequency inverters from Interroll are general adjusted to factory setting and have to be parameterized for the respective drum motor. For this purpose, Interroll can supply parameterization instructions. In this case, please contact your local Interroll partner. • If no frequency inverter from Interroll is used, the frequency inverter must be correctly parameterized according to the specified motor data. Interroll can provide only very limited support for frequency inverters that are not being...
  • Page 41 Assembly and installation sold by Interroll. • Resonance frequencies in the power supply line must be prevented since the create voltage spikes in the motor. • If the cable is too long, frequency inverters generate resonance frequencies in the line between frequency inverter and motor.

  • Page 42: Initial Startup And Operation

    Ensure that no contact points exist between objects, conveyor belts and rotating or moving parts. Ensure that the drum motor and the conveyor belt can move freely. Ensure that the belt features the correct tension according to the recommendations from Interroll. Ensure that all bolts are tightened according to the specifications.

  • Page 43: Checks Before Every Startup

    Initial startup and operation NOTICE Damage of drum motor in reversing operation! Ensure that a time delay is in place between forward and reversing movement. Before reversing, the motor ¾ must come to a complete standstill. 9.2.1 Checks before every startup Check the drum motor for visible damage.

  • Page 44: Maintenance And Cleaning

    Attach a sign to the control station that maintenance work is in progress. 10.3 Maintenance Generally, Interroll drum motors do not have to be maintained and require no special care during their regular service life. Nevertheless, certain checks have to be performed at regular intervals. 10.3.1 Checking the drum motor •...

  • Page 45: 10.3.3 Maintaining Drum Motors With Optional, Relubricating Ip66 Seals

    Maintenance and cleaning 10.3.3 Maintaining drum motors with optional, relubricating IP66 seals • Lubricate the relubricating IP66 seals regularly with lubricant and/or a foodgrade grease according to operating and ambient conditions. • Lubricate the motor more often if it is used under aggressive ambient conditions and in constant contact with water, salt, dust, etc.

  • Page 46: 10.5.1 Cleaning The Drum Motor With Pressure Washer

    NBR - IP66 80 °C 50 bar For general use NBR IP66 seal that can be 60 °C 50 bar DL series for wet and re-lubricated food-grade applications • Re-lubricate DL series motors after cleaning Version 1.2 (08/2022) en 46 of 64...

  • Page 47: 10.5.2 Hygienic Cleaning

    For scale deposits, we recommend the use of an acidic cleaner 1 to 4 times per month. If a cleaning with chlorine is permissible, we recommend alkaline cleaners and disinfectants. In this case, the last disinfecting step can be omitted depending on the degree of contamination. Observe the corresponding certificates at www.interroll.com. Version 1.2 (08/2022) en Translation of original operating instructions...

  • Page 48: Troubleshooting

    Gear box or bearing Check by hand if the drum shell can be turned freely. blocked If not, replace the drum motor or contact the local Interroll dealer. Incorrect assembly Check whether a starting capacitor is required for a single-phase motor.
  • Page 49 Ambient temperature Check ambient temperature. If the ambient temperature is too above 40 °C high, install a cooling unit. Contact the local Interroll dealer. Excessive or frequent Do not use DL series motors for start-stop operation. stops/starts Belt tension too high Check belt tension and reduce as necessary.
  • Page 50 Check connections. cable connection Gear box is damaged Check by hand if the drum shell can be turned freely. If not, replace the drum motor or contact the local Interroll dealer. Incorrect or faulty voltage Check the voltage supply. supply For single-phase motors: check capacitors.
  • Page 51 Failure/overload of Check continuity, current and resistance of each phase winding. one phase failed winding insulation Replace drum motor or contact the local Interroll dealer. Motor winding: Power failure in one Check power supply to all phases. Check continuity, current and...
  • Page 52 Remove excess grease. If the problem persists, contact local Interroll dealer. A small amount of grease leaking in the DL series is normal and not a problem. Oil leaking at Loose cable connection...
  • Page 53 Troubleshooting Fault Possible cause Remedy Belt not correctly Material deposits on Ensure that belt and drum shell are not blocked and that all adjusted/belt drum motor/rollers/belt rollers and drum shells can turn freely. does not run Check belt connection. centered Material deposits on Check whether material peels off and ensure that the cleaning rollers...
  • Page 54 Shaft seal damaged/ Check for external contamination. worn Contact the local Interroll dealer. Loose or tight seating of Contact the local Interroll dealer. bearing on shaft Gear box failure Overload/impact load or...

  • Page 55: Decommissioning And Disposal

    12.2 Disposal In principle, the operator is responsible for the professional and environmentally friendly disposal of the products. The implementation of the WEEE Directive 2012/19/EU in national laws must be observed. Alternatively, Interroll offers to take back the products. Contact: www.interroll.com When disposing of the drum motor and its packaging, follow local and industry-specific regulations. Version 1.2 (08/2022) en Translation of original operating instructions...

  • Page 56: Appendix

    Appendix Appendix 13.1 List of abbreviations Electrical data in kW Rated output in kilowatt Number of poles in 1/min. Rated speed of rotor in revolutions per minute fN in Hz in Hz Rated frequency in Hz in V Rated voltage in volt in A Rated current in amperes in A Rated open-circuit current in amperes in A Maximum current in amperes cos φ...
  • Page 57 Appendix ~ in V Heating voltage for single-phase units in volts in µF Run capacitor (1~) / Steinmetz capacitor (3~) in microfarad Connection diagrams Single-phase motor Three-phase motor Input of electromagnetic brake Output of electromagnetic brake Brake (optional) Cos - Cosine signal 0 Cos + Cosine signal + Run capacitor Starting capacitor Frequency inverter...
  • Page 58 Appendix Input auxiliary winding single-phase motor Output auxiliary winding single-phase motor Color coding Color coding of cables in the connection diagrams: bk: black gn: green pk: pink wh: white bn: brown gy: gray rd: red ye: yellow bu: blue or: orange vi/vt: violet ye/gn: yellow/green ( ): alternate color...

  • Page 59: Translation Of The Original Declaration Of Conformity (Ce)

    EC Machinery Directive has been declared. Authorised for compiling technical documentation: Interroll Trommelmotoren GmbH, Opelstraße 3, D-41836 Hueckelhoven/Baal Frank Ratanski Head of CoE Service – Interroll Trommelmotoren GmbH Hueckelhoven/Baal, 24.09.2022 Version 1.2 (08/2022) en Translation of original operating instructions...

  • Page 60: Translation Of The Original Declaration Of Conformity (Ukca)

    UK Supply of Machinery (Safety) Regulations 2008 has been declared. Authorised for compiling technical documentation: Interroll Trommelmotoren GmbH, Opelstraße 3, D-41836 Hueckelhoven/Baal Frank Ratanski Head of CoE Service – Interroll Trommelmotoren GmbH Hueckelhoven/Baal, 24.09.2022 Version 1.2 (08/2022) en 60 of 64 Translation of original operating instructions...
  • Page 61 Appendix Version 1.2 (08/2022) en Translation of original operating instructions 61 of 64...
  • Page 62 Version 1.2 (08/2022) en 62 of 64 Translation of original operating instructions...
  • Page 63 Version 1.2 (08/2022) en Translation of original operating instructions 63 of 64...
  • Page 64 INSPIRED BY EFFICIENCY © 2022 INTERROLL...
