Interroll Diverter SH 1500
Product identification
2
1
9

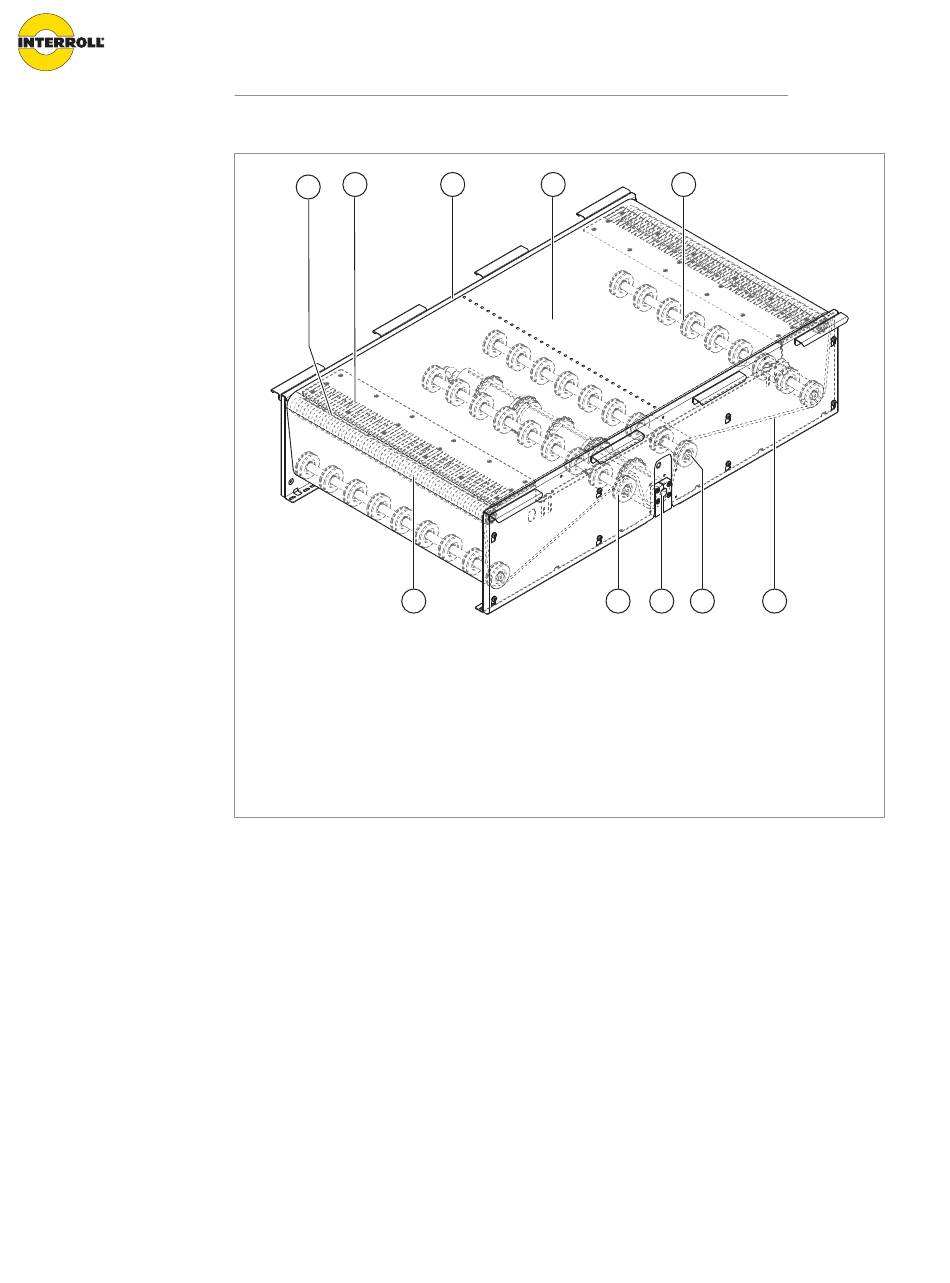

Diverter (ball module conveyor frame with inserted belt conveyor)
1 Transfer plate
2 Guide plate
3 Cover plate with sensor holders
4 Control belt for ball conveyor (on belt
conveyor cassette)
5 Return wheel (outside)
The diverter SH 1500 is used for diverting a suitable conveying goods into 6 different directions.
Turning the conveying goods is not possible in this process.
Depending on the size of the module, the rated width is 690 mm (M) or 842 mm (L).
The module consists of a cassette (belt conveyor) and a frame (ball module conveyor). They are
assembled into a diverter: The belt conveyor controls the diverter with a transverse running belt.
In the outside frame of the diverter, the ball module conveyor is controlled by the module
conveyor drive assembly.
A frequency inverter can be used as an option. Observe the installation guidelines of the
frequency inverter manufacturer (e.g. the frequency inverter from Getriebebau Nord).
3 4
7
6 Ball module conveyor
7 Return wheel (center)
8 Drum motor with installed sprockets
9 Idler pulley
5
8 7 6
