3.3.1 Basic Measurement

Frequency
1
Press Freq key, and the following menu will pop up. Users can set up center
frequency and frequency step of the channel power measurement. The
method of setup is the same as the setup of Swept SA that we do not list
again.
Amplitude
2
Press the AMPTD key, and the following menu will appear.
The default setup of system is Auto level on. To measure currently, if the
signal has relatively large fluctuations, the system will automatically adjust
the attenuator and amplifier, in order to make sure that the input power is
nether overload nor too low. If the automatic level is OFF, users can modify
the magnitude parameters manually, such as reference level.

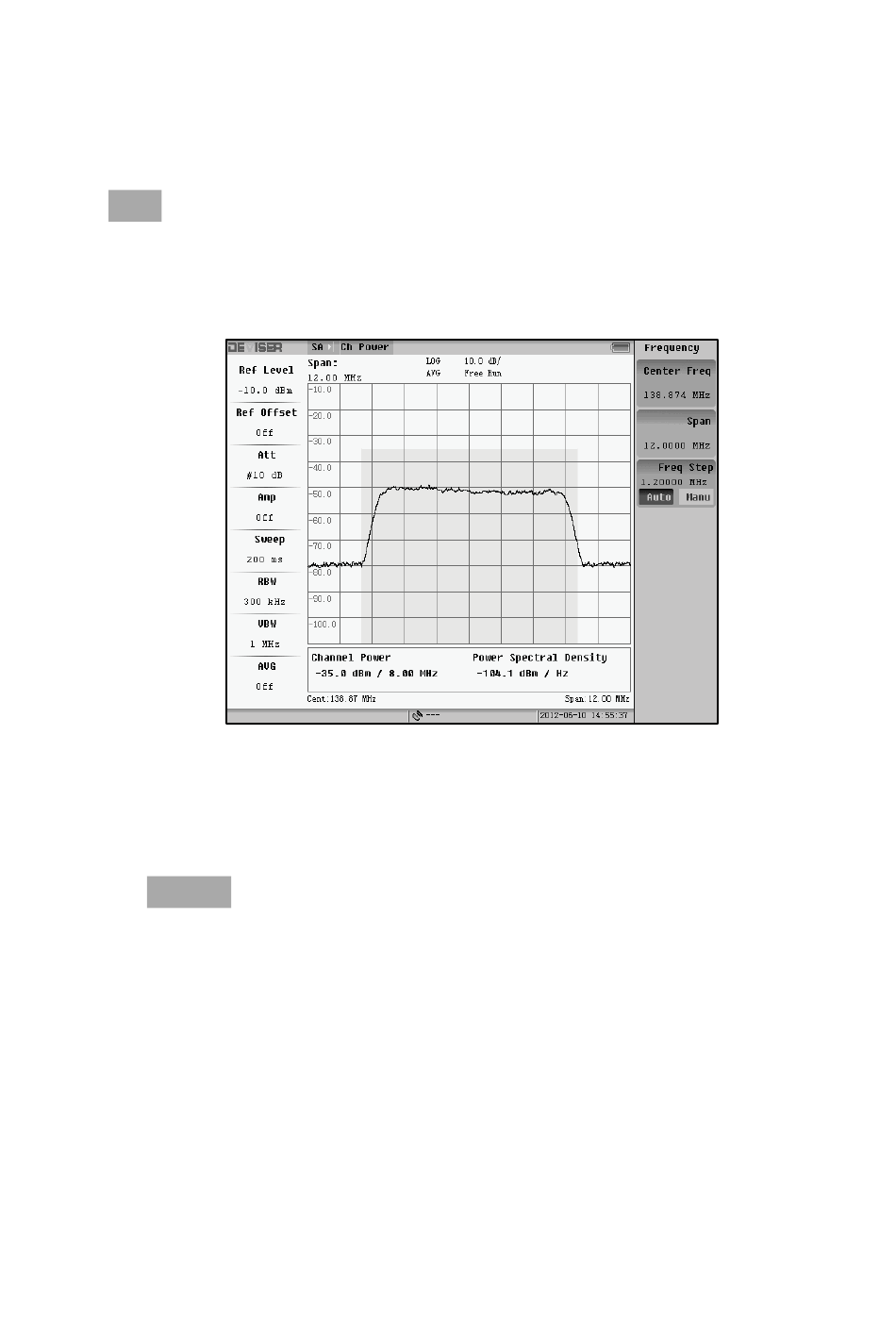

Fig. 3-62 Channel Power Frequency Menu
81
