AD8000 Series Spectrum Analyzer Instruction
Manual

System Settings

9.3
It is used to set system parameters including screen display,
communication, language and etc.

9.3.1 Network

AD8000 network setting function accepts remote control. Press the
Network Settings key, and the follow menu will pop up.
DHCP: Select between DHCP IP mode and Static IP mode. The default is a
static IP, which can be selected through the drop-down list
IP address: IP address button in network setting, user scould set the IP
communication address of the instrument
Subnet Mask: use in fixed IP environment
Port Number: port number of network connections, the default is 5025
Gateway: IP address of the gateway;
DNS: IP address of DNS server;
Host Name: assigned the host name
If it dynamically obtains an IP, the follow dialog will pop up:
188

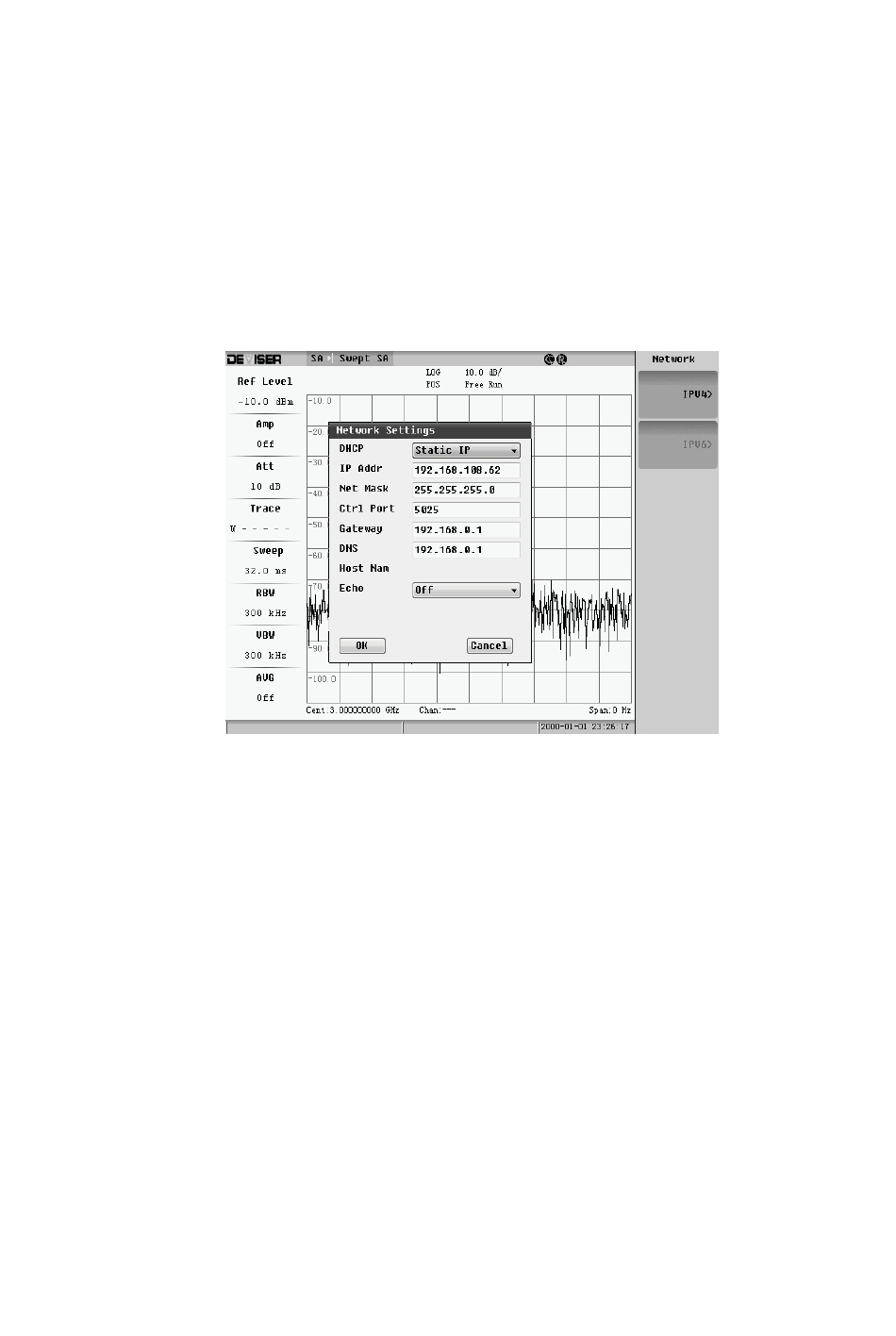

Fig. 9-7 Network Setting Menu
