5.1.1 Power vs. RB

Press the Pow vs RB soft key to enter the operation menu of Pow vs RB,
shown as the following figure:
The measurement display includes power & RB grid, RB color map,
measurement data form and measurement process bar.
The level of RB power colar image is decided by the maximum value and
range of RB colar image. Those values could be set through entering
manually or auto-defined color image.

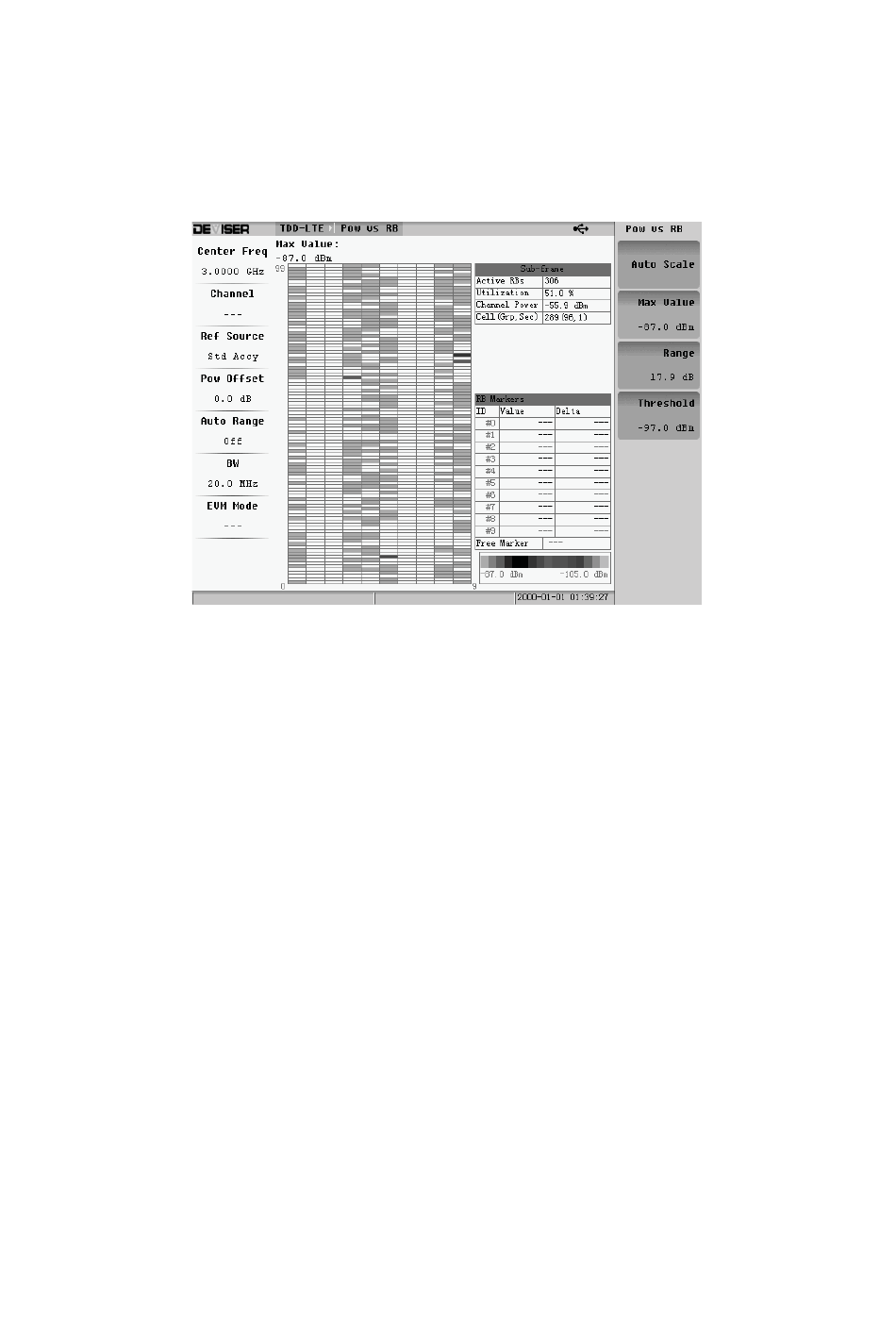

Fig. 5-3 Pow vs RB Menu
