6.1.2 Coverage Measurement

There are 2 coverage measurements, time measurement and free
measurement.
1．Time measurement
Mark at the corresponding location on the indoor map; mark again at
another position. The data between two points are calculated by the time
interval of two points.
1) Set the time interval first. The time range is from 100ms to 1min.
2) Ensure the measurement status is start.
3) Press Mark button; move the marker to the current position by
selection 'Move Mark'. The x-axis and y-axis could be moved by selecting
'Move Direction'.
4) Press 'Mark', and the mark would change from blue to red.
5) Walk to the next position.
6) Press the mark button again at the next position, then the mark
would change from red to blue, and it would generate measurement data.
162

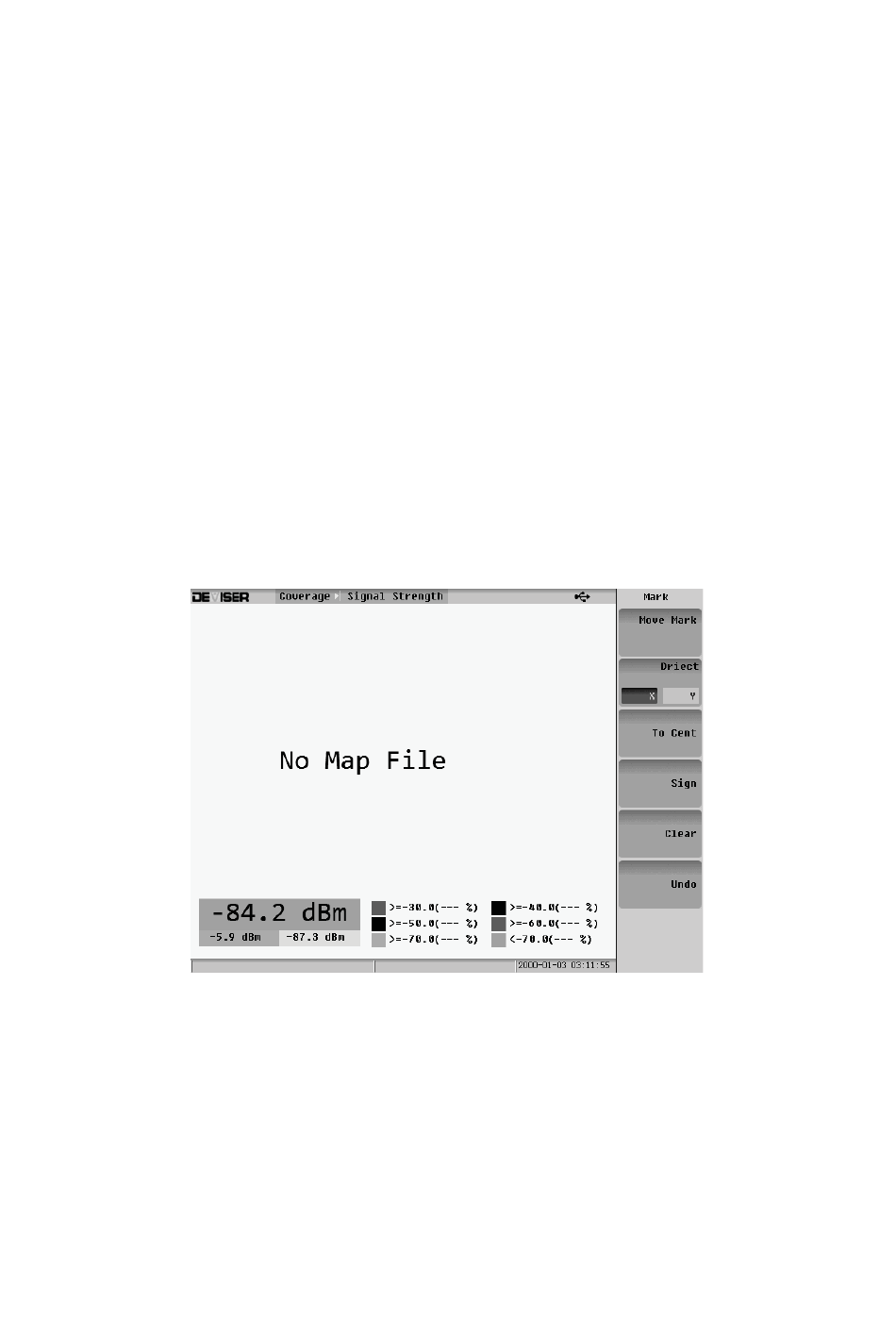

Fig. 6-8 Mark Menu
