5.2.3 Control CH Power
Select 'Control CH Power' to enter the menu of control channel power.
The measurement shows the control channel power of key physical layer
and 'constellation' in the measurement result.
Press 'Ng>' in the home page to enter the Ng setting menu. 4 Ng values are
available, 1/6, 1/2, 1 and 2.
Please refer to 5.1.3 for other operations.

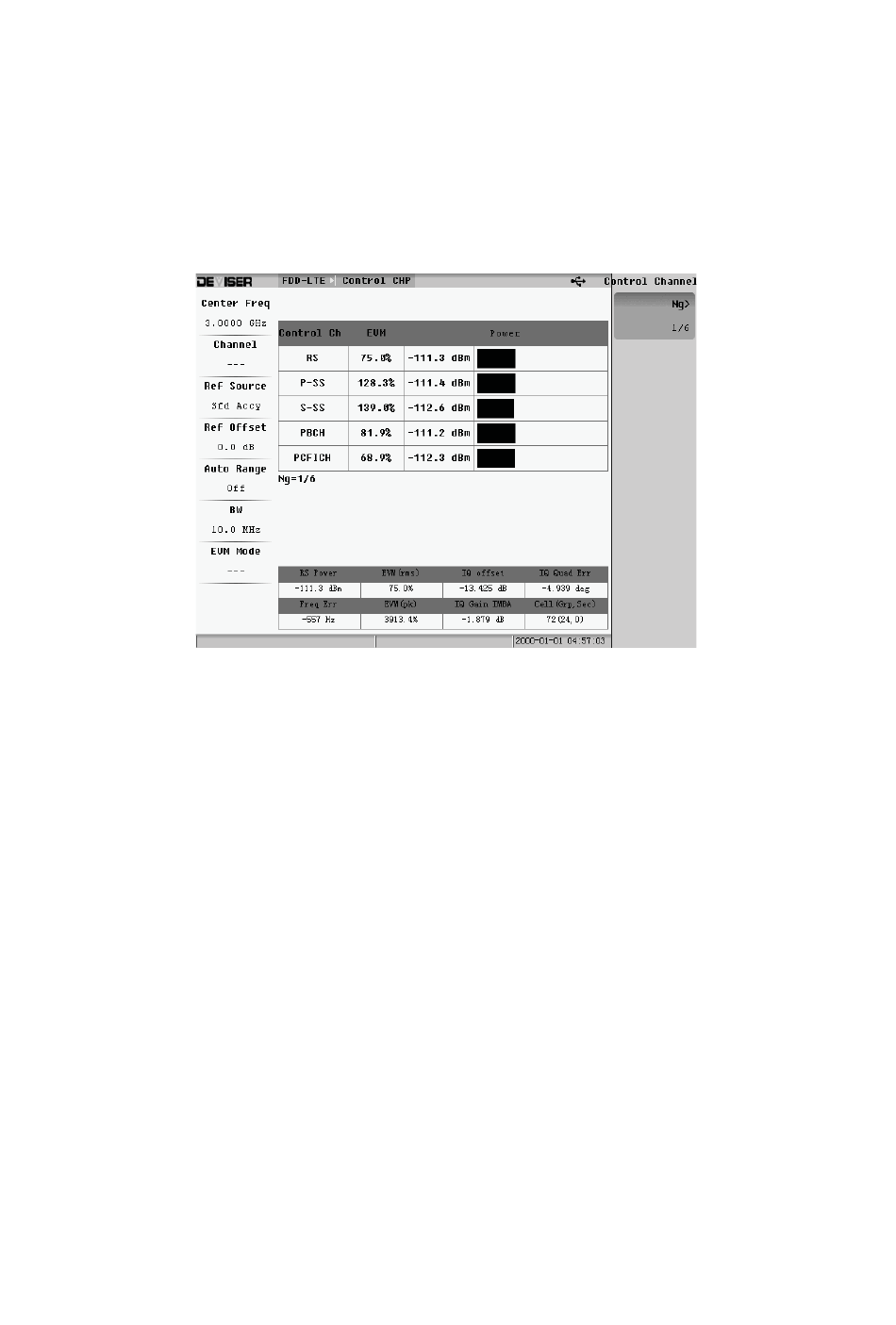

Fig. 5-33 Control Channel Power Menu
