(4) Gate RBW
The gate RBW setting is to set the spectrum RBW of selected wave.
(5) Gate VBW
The gate VBW setting is to set the spectrum VBW of selected wave.
(6) Trigger Type
The trigger type is divided into raising and falling trigger.
94

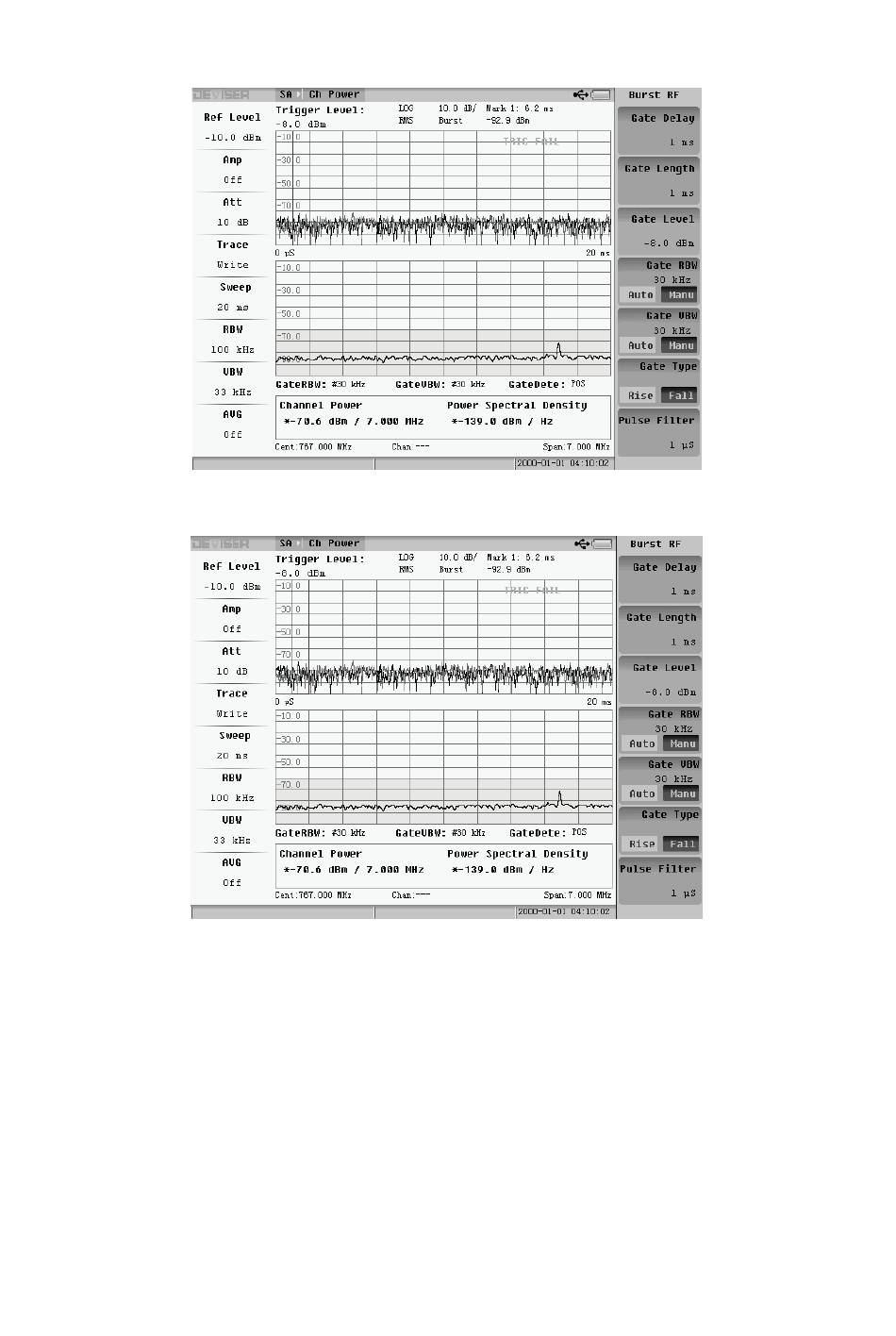

Fig. 3-81 Trigger Fails
Fig. 3-82 Trigger Succeeds
