Signal Strength

4.2
Press the MEAS to select signal strength, and the measurement interface
shown as figure 4-3 will pop up.
The signal strength is used to measure dot frequency signal strength. The
maximum scale and the minimum scale are used to set the range of current
displayable signal strength. Turn on the sound in current signal strength
display range, the frequency of the audio would increase as the signal
strength increasing.
Press the FREQ AMPTD CPL function keys, and then we can do frequency,
amplitude, and other basic settings.
120

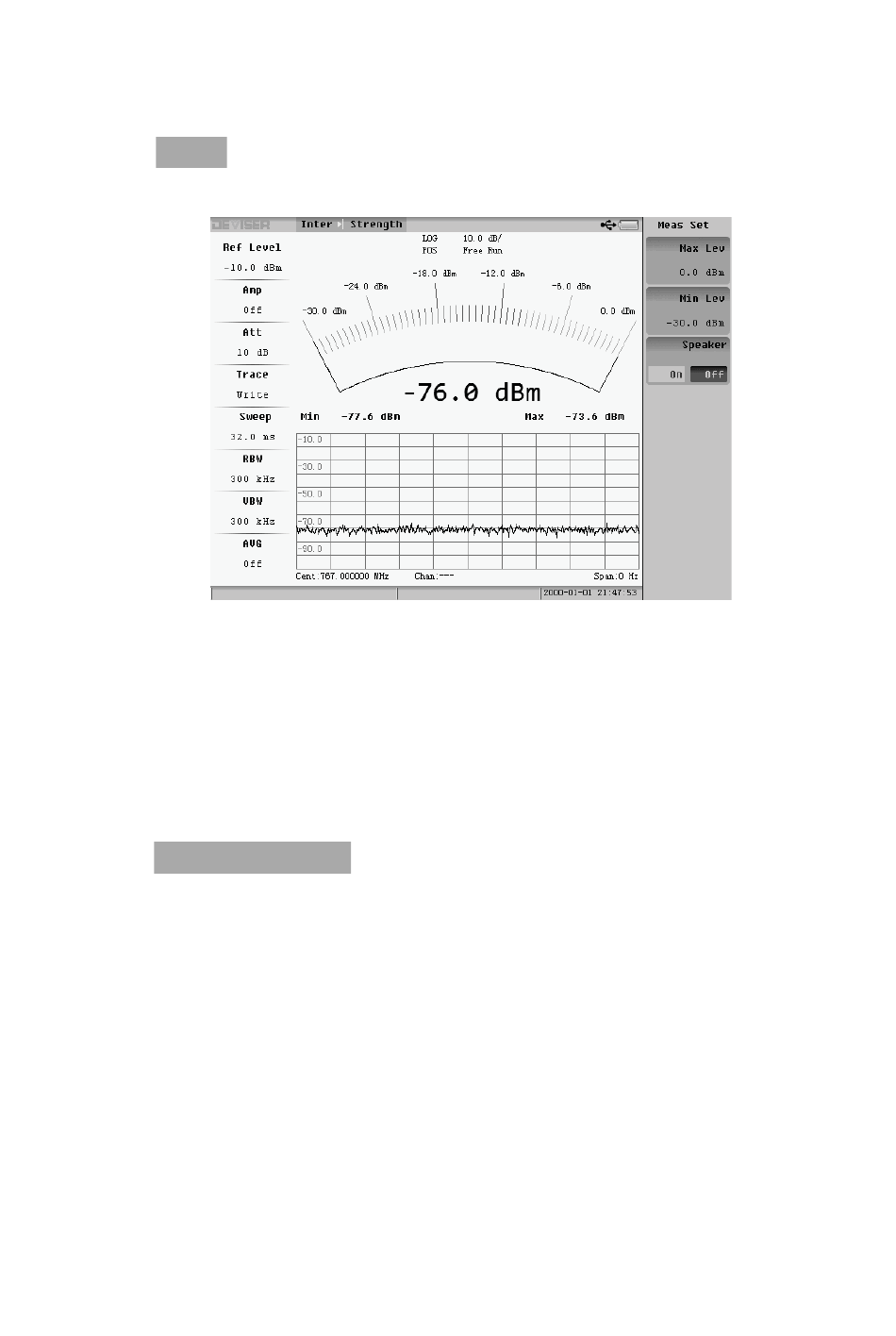

Figure 4-3 Signal Strength Measurement
