2.1.2 Measurement Panel Introduction

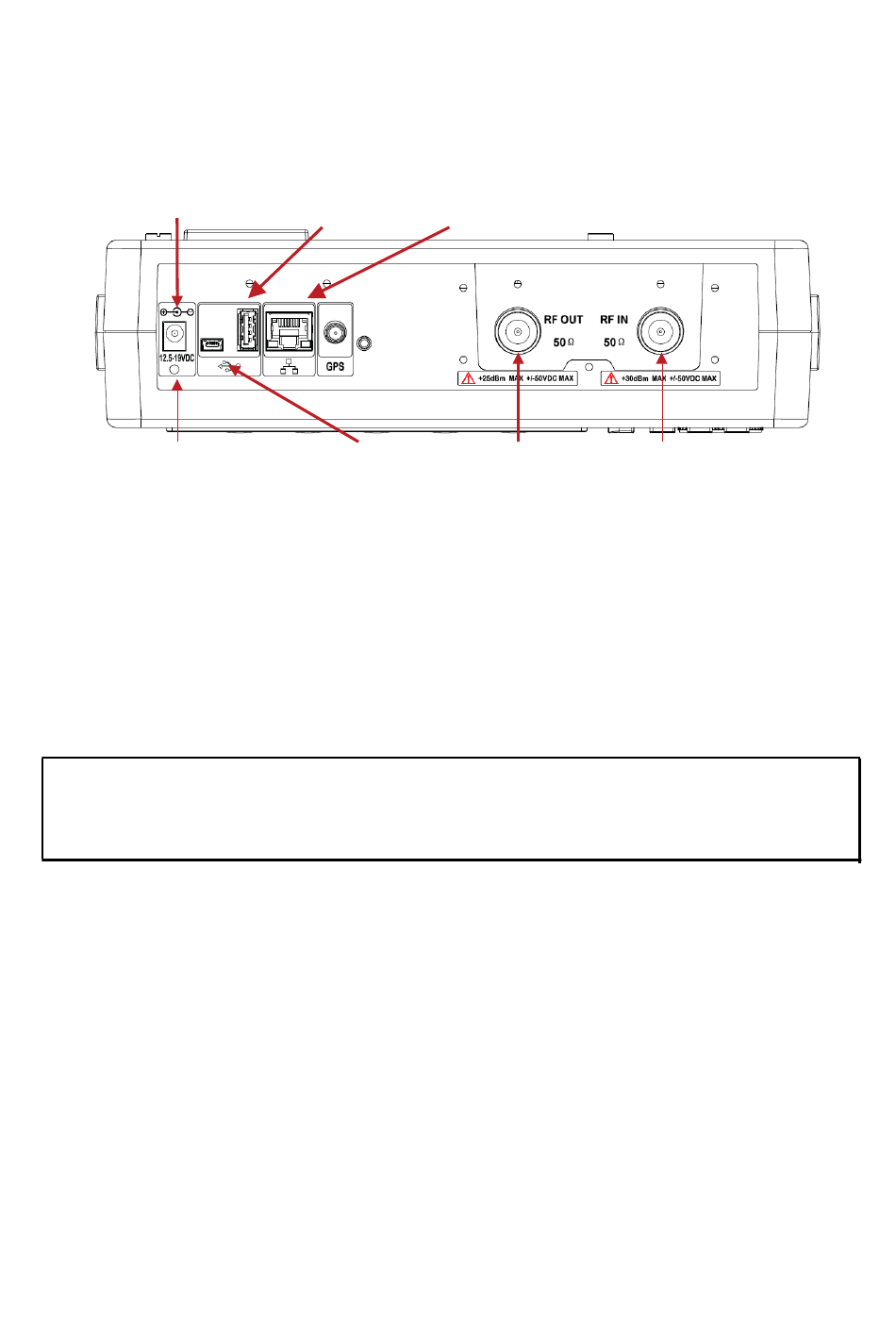

Figure 2-2 is the measurement panel of the spectrum analyzer.
External Power Supply USB B LAN
Power Indicator Light USB mini
1 External Power Supply
The external power connector is used to supply power for the unit and
charge the battery. Input voltage is 12V～19V, and power more than 60w.
When it start to charge connecting to the AC-DC adaptor or vehicle
cigarette lighter, the power indicator light turns to green. It turns to orange
when fully charged.
Warning: only adaptors and chargers from AD INSTRUMENTS could be
used. Make sure the power supply of 12VDC vehicle cigarette lighter is
60W@12VDC and dry when using. Please stop using immediately if the plug
is hot.
2 USB Port – Type A
The AD8000 has a Type A USB connectors that accept USB flash memory
devices for storing files such as measurement curves, setup data, and screen
images.
3 USB Port - Mini B
Used for connecting with PC
Fig. 2-2 Measurement Panel Connector
RF Output RF Input
