AD8000 Series Spectrum Analyzer Instruction
Manual
Caution: Use only use batteries, adapters, and chargers provided by
AD INSTRUMENTS.

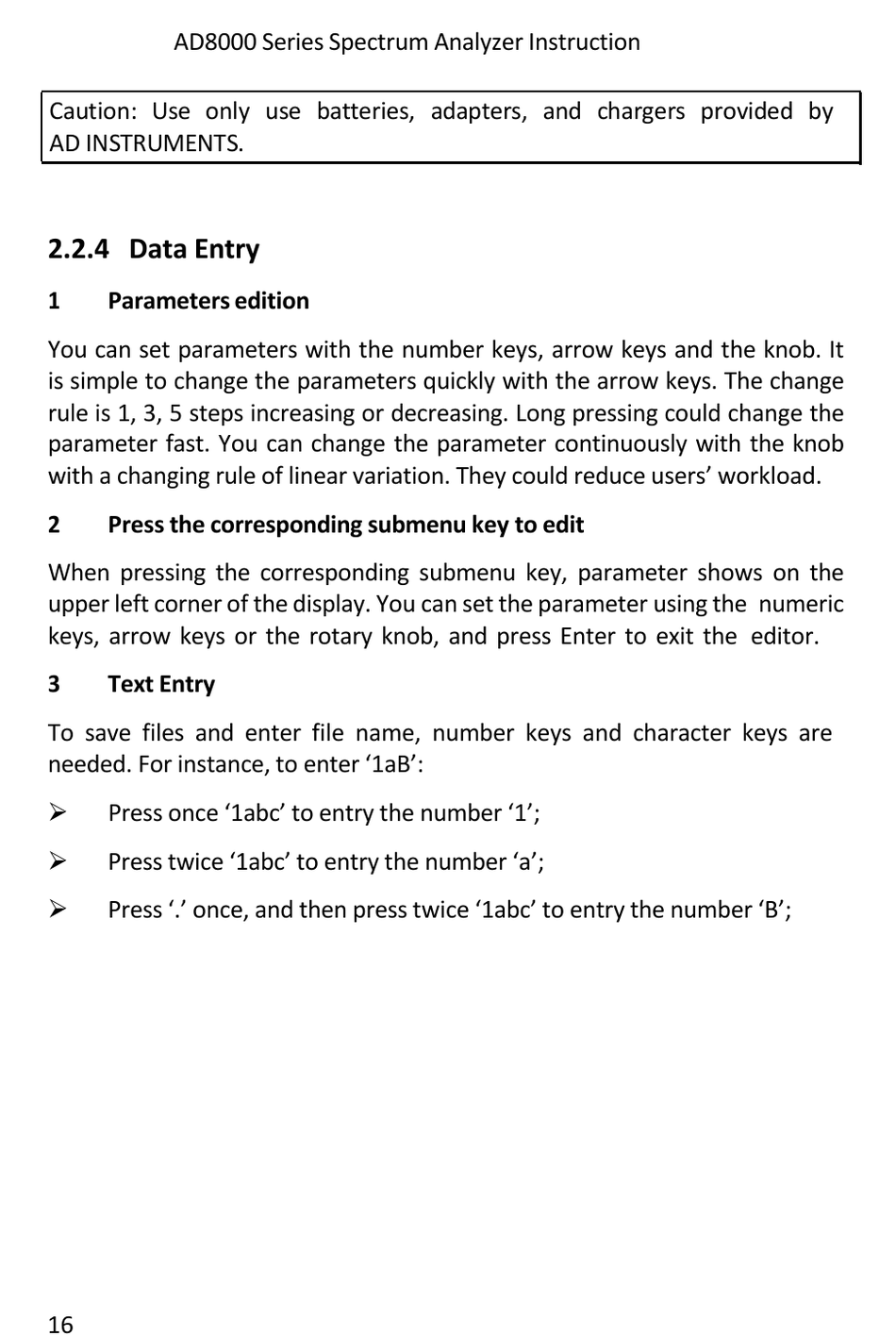

2.2.4 Data Entry

1 Parameters edition
You can set parameters with the number keys, arrow keys and the knob. It
is simple to change the parameters quickly with the arrow keys. The change
rule is 1, 3, 5 steps increasing or decreasing. Long pressing could change the
parameter fast. You can change the parameter continuously with the knob
with a changing rule of linear variation. They could reduce users' workload.
2 Press the corresponding submenu key to edit
When pressing the corresponding submenu key, parameter shows on the
upper left corner of the display. You can set the parameter using the numeric
keys, arrow keys or the rotary knob, and press Enter to exit the editor.
3 Text Entry
To save files and enter file name, number keys and character keys are
needed. For instance, to enter '1aB':
Press once '1abc' to entry the number '1';
Ø
Press twice '1abc' to entry the number 'a';
Ø
Press '.' once, and then press twice '1abc' to entry the number 'B';
Ø
16
