Limit
2
The limit is used to set the celling and floor of the spectrum. If the
spectrum is over the celling or floor, 'Not Qualified' would show.

3.2.4 Basic Usages

Basic usages mainly include marker and peak value functions.
The mark function is to mark at a certain trace point to observe its
amplitude and frequency (Y-axis & X-axis) information; the peak value
function is used to find out the maximum amplitude point of current trace
automatically. See the following part for details:
Mark
1
Press the MARK key, and the first page of menu will appear; press the 'Next
page' sub-key, and the second page of menu will appear.
68

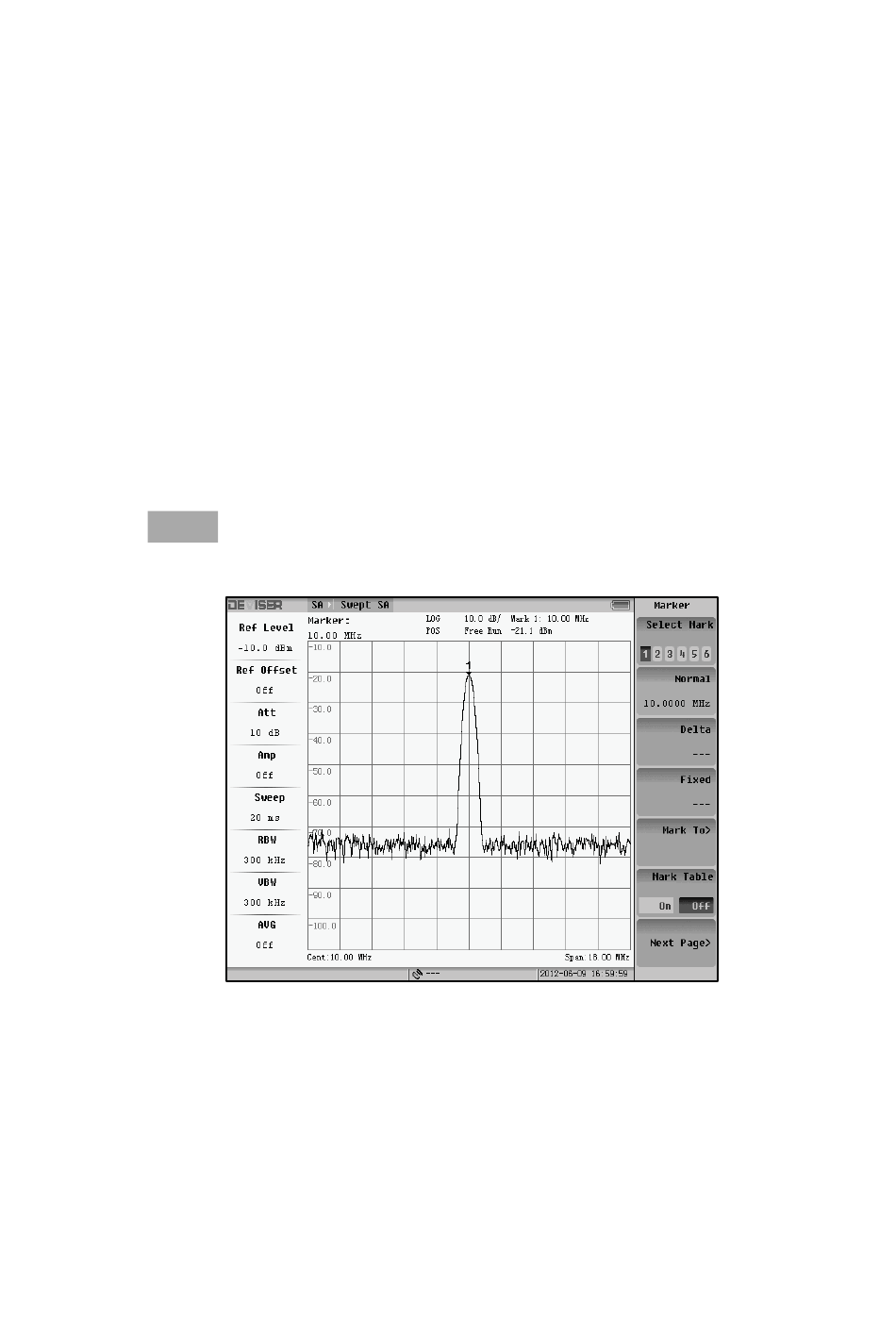

Fig. 3-46 Mark Menu (Page 1)
