Received Signal Strength Indicator (RSSI)

4.3
Press MEAS, select RSSI, and the following menu will pop up:
This function can implement recording a particular frequency point in time.
Press Time Interval to set the time interval of recording, min. 1ms; max.
100s.
Record Period is used to set the time of recording, min. 10ms; max. 10
days..
Press record to start recording. After record completing, the system would
name the file as 'Y-M-D-H-M-S' automatically.
Replay is used to choose the history file to replay. The starting/ending time
could be set. The replay menu is shown as figure 4-5:

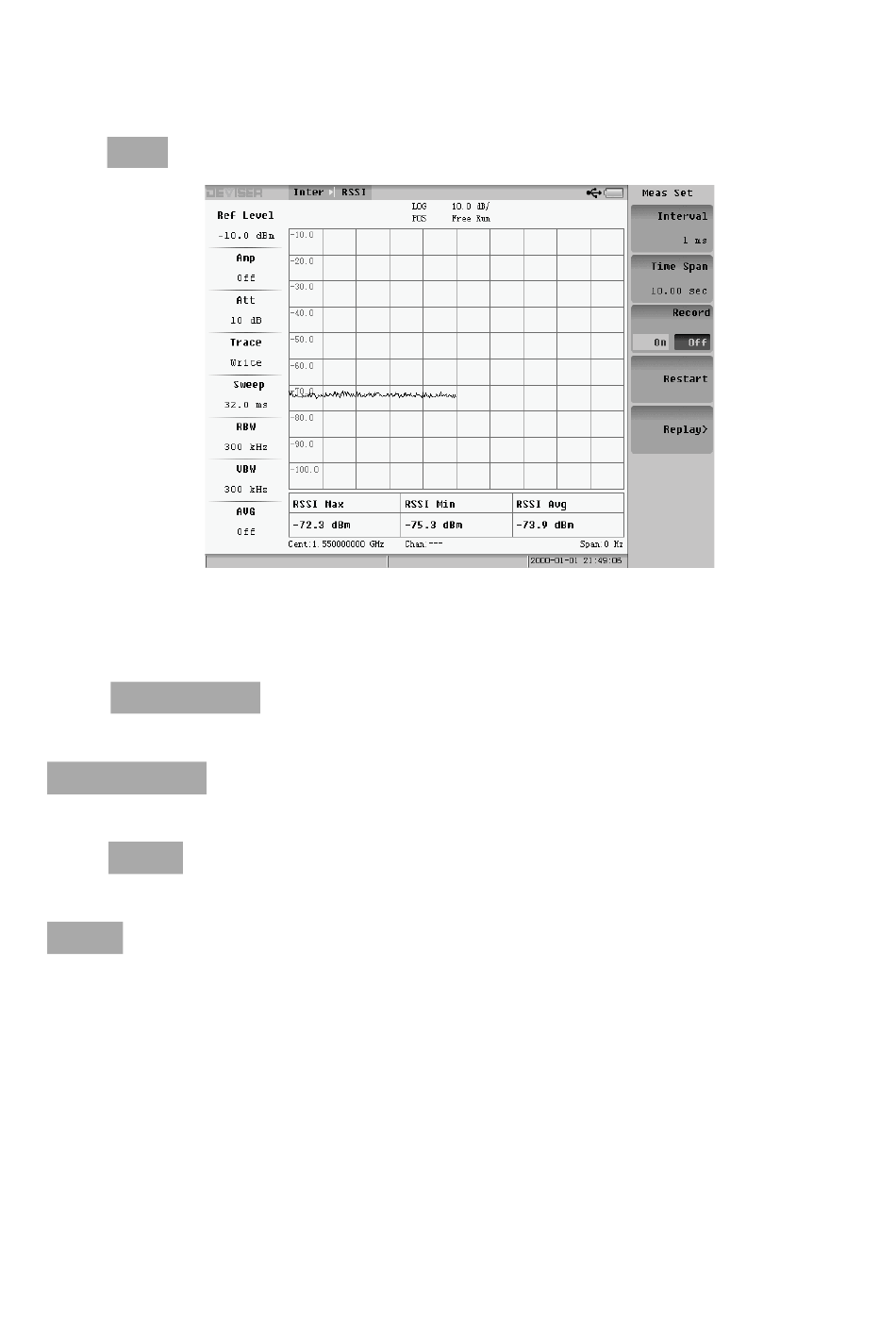

Fig. 4-4 RSSI
121
