Adjacent Channel Power

3.4
The adjacent channel power mainly measures the changing range of the
power of adjacent channels and current channel. The bandwidth of
adjacent channel is the same as the bandwidth of the current tested
channel.
Select adjacent channel power measurement type, and the following menu
would pop up. Because of the difference in measurement signal, the carrier
wave bandwidth, adjacent channel bandwidth, number of carrier wave and
number of adjacent channel would be different. This device could measure
up to 12 carrier waves and 6 pairs of adjacent channel.

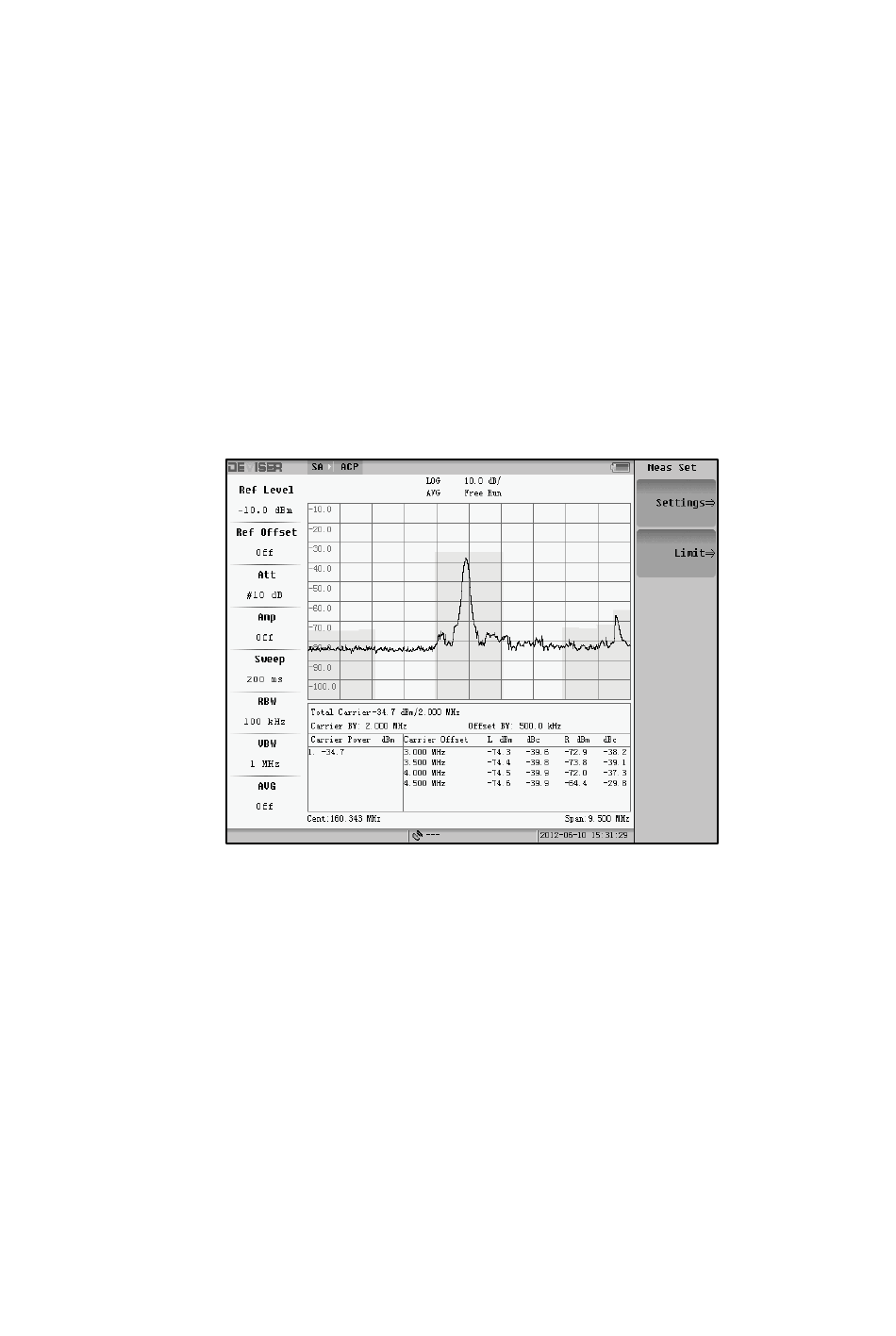

Fig. 3-83 Adjacent Channel Power
