Function & Using of Swept SA
3.2

3.2.1 Basic measurement

The swept SA mainly measures the amplitude frequency characters of the
signal. The frequency and amplitude button at the bottom of the panel are
mainly used.
1 Frequency
Pressing FREQ key, the submenu will appear (Fig. 3-2), press 'Next page',
and the second page of menu appear(Fig. 3-3). User can set center
frequency, start frequency, stop frequency and etc.

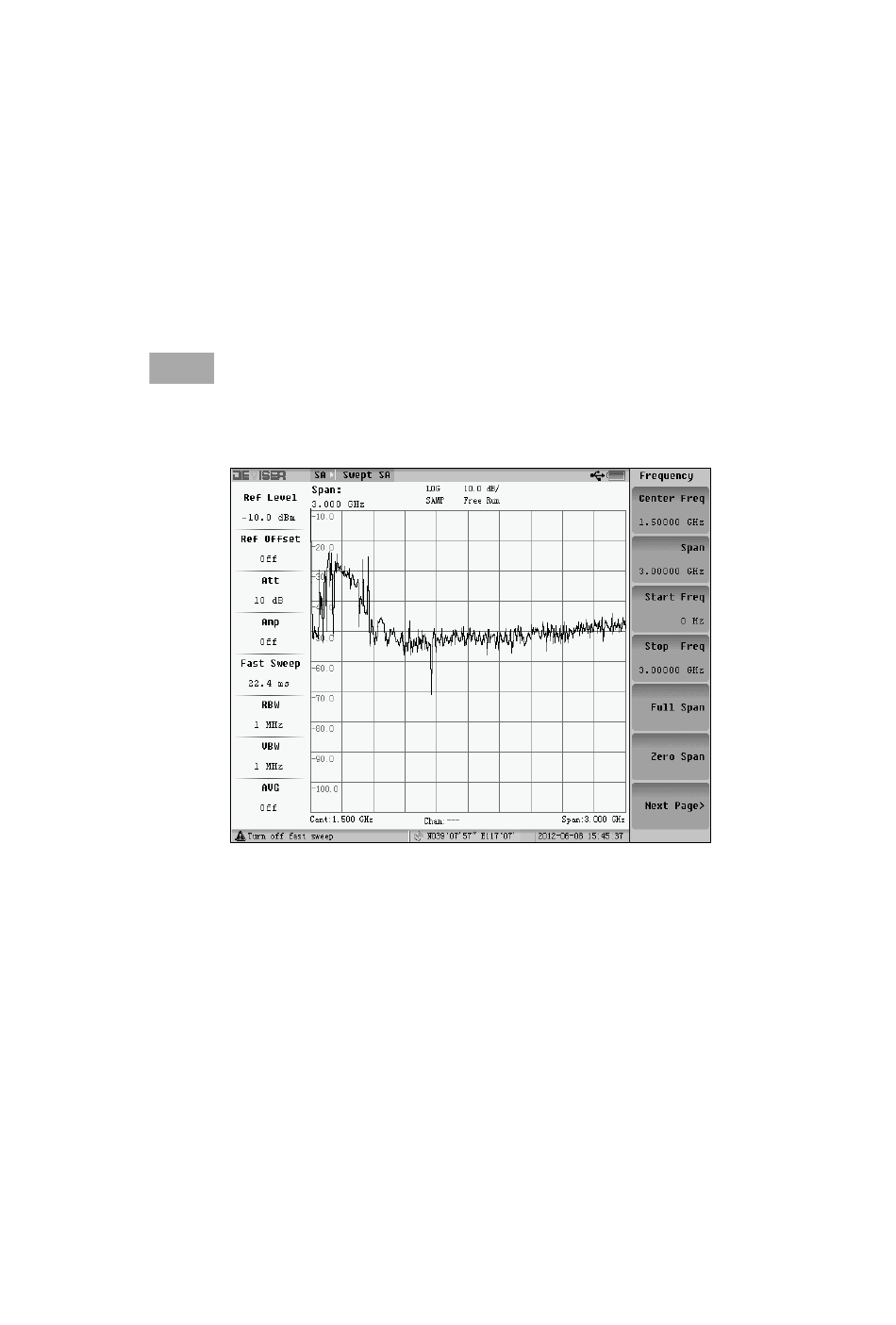

Fig. 3-2 Frequency Menu (Page 1)
