AD8000 Series Spectrum Analyzer Instruction
Manual
Press the corresponding menu button to switch the two functions, and
then return to the previous menu automatically.
Example: Menu of 'Ref Offset'.
8 No operation
Some of the menus are available only if some conditions are fulfilled,
otherwise it is gray showing that the menu is invalid.
Example: Menu of 'Normal Detector Mode' in the fast sweep mode is not
available. It means under the fast sweep mode, there is no normal detector
mode.

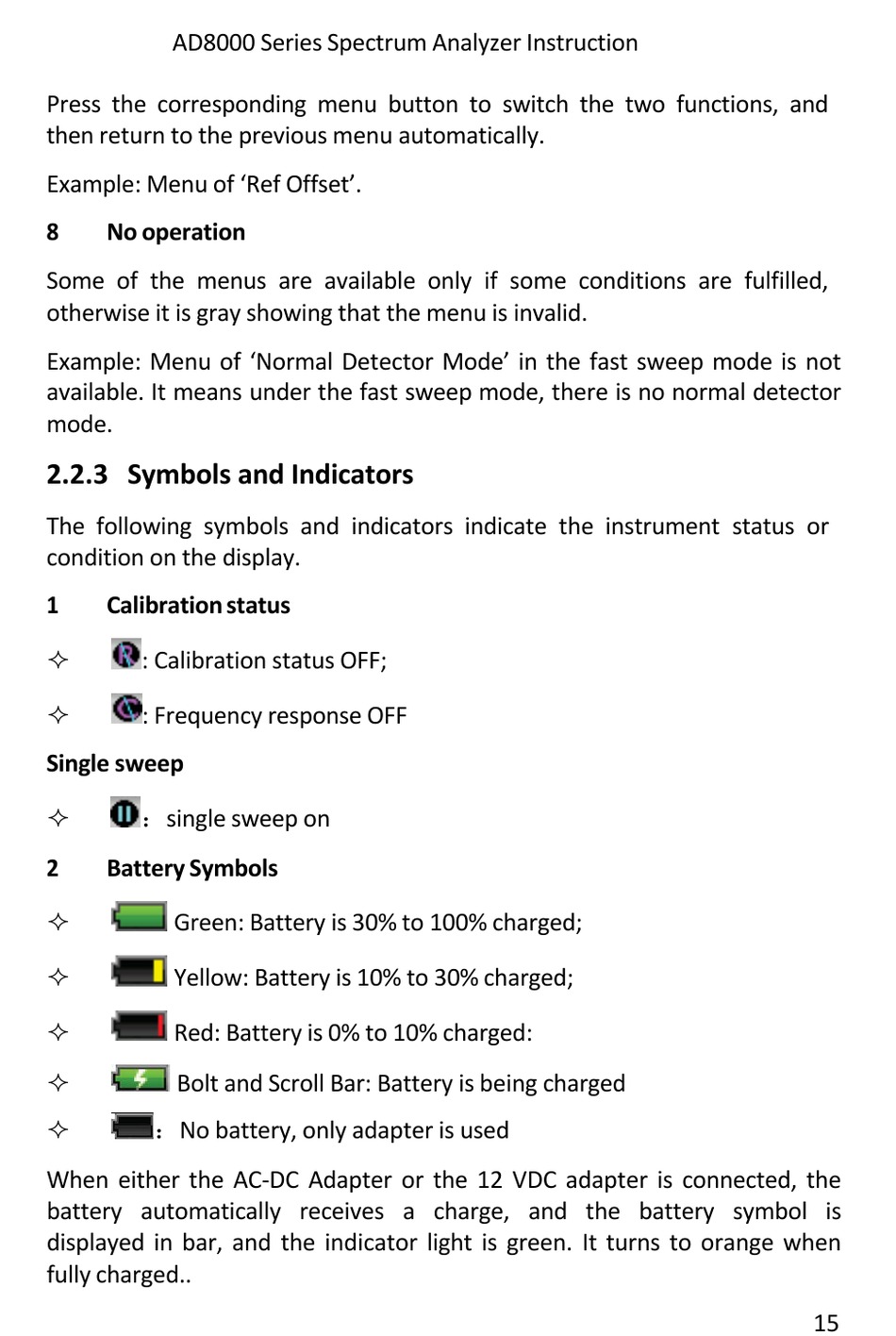

2.2.3 Symbols and Indicators

The following symbols and indicators indicate the instrument status or
condition on the display.
1 Calibration status
: Calibration status OFF;
²
: Frequency response OFF
²
Single sweep
：single sweep on
²
2 Battery Symbols
Green: Battery is 30% to 100% charged;
²
Yellow: Battery is 10% to 30% charged;
²
Red: Battery is 0% to 10% charged:
²
Bolt and Scroll Bar: Battery is being charged
²
：No battery, only adapter is used
²
When either the AC-DC Adapter or the 12 VDC adapter is connected, the
battery automatically receives a charge, and the battery symbol is
displayed in bar, and the indicator light is green. It turns to orange when
fully charged..
15
